Removal Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

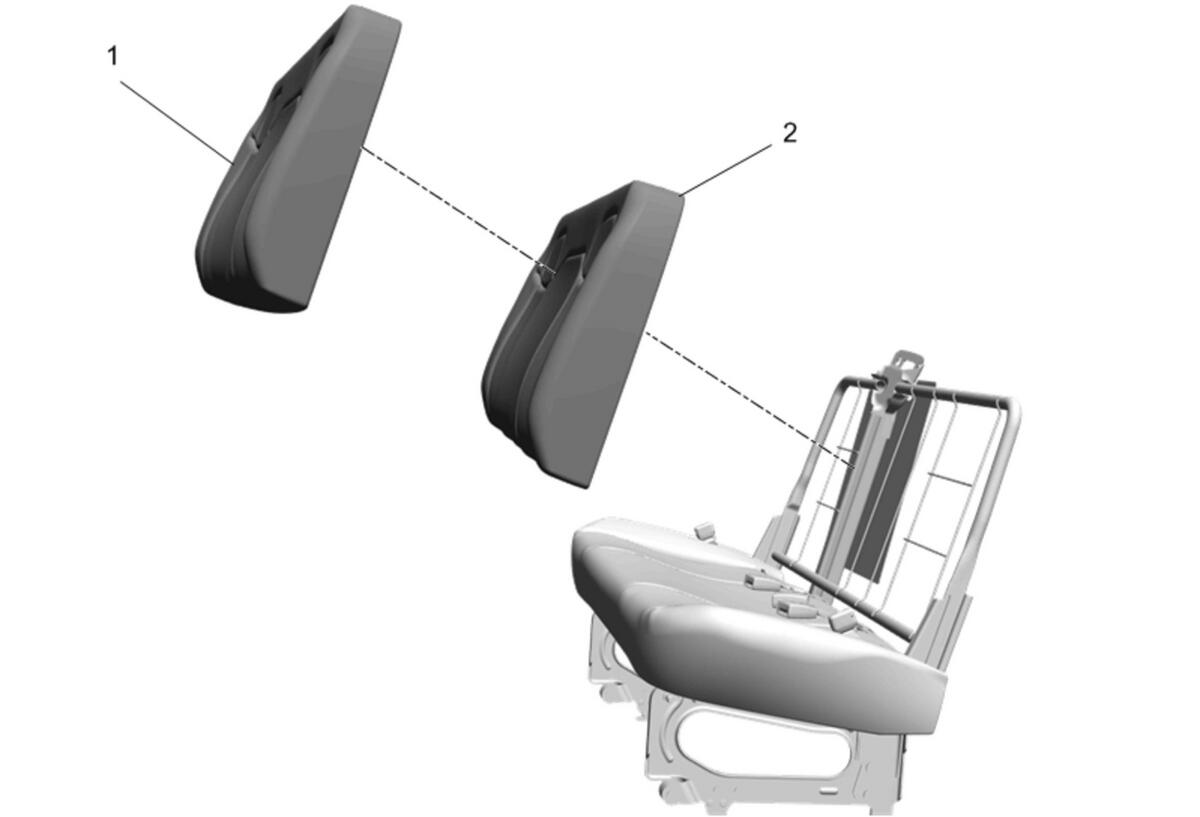

  1. GM4854489Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Back Cushion Cover and Pad (1, 2) - Remove - Rear Seat Back Cushion Cover and Pad Replacement (With Bench Seat) , or Rear Seat Back Cushion Cover and Pad Replacement (With Split Bench)

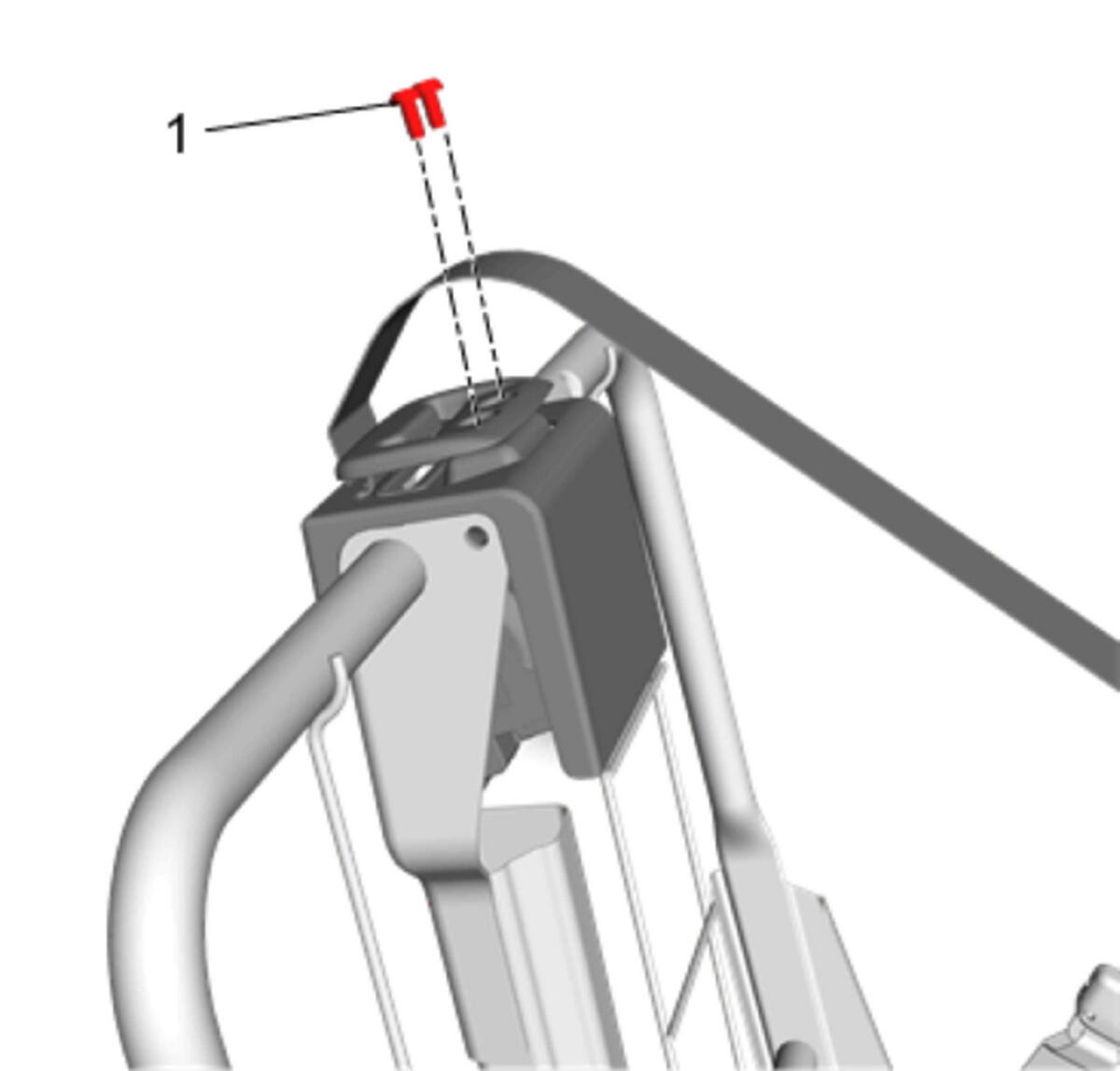

  2. GM4867365Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Belt Bezel Screw (1) - Remove [2x]

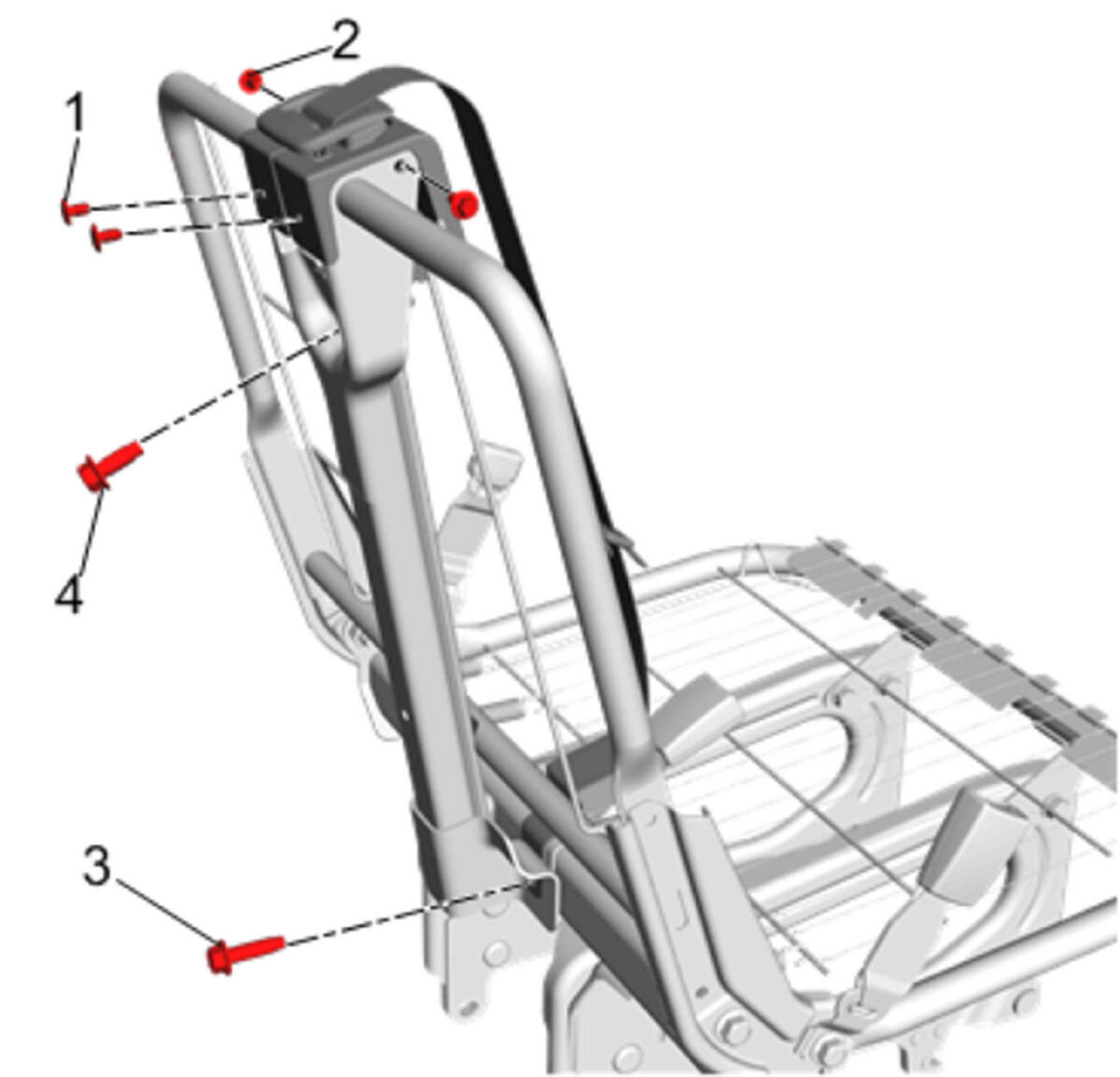

  3. GM4867366Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Retractor Cover Retainer (1) - Remove [2x]

  4. Rear Seat Retractor Cover Screw (2) - Remove [2x]
  5. Rear Seat Cushion Frame Bolt (3) - Remove - Rear Seat Back Cushion Frame Replacement (With Bench Seat) , or Rear Seat Back Cushion Frame Replacement (With Split Bench)
  6. Rear Seat Retractor Bolt - Upper (4) - Remove

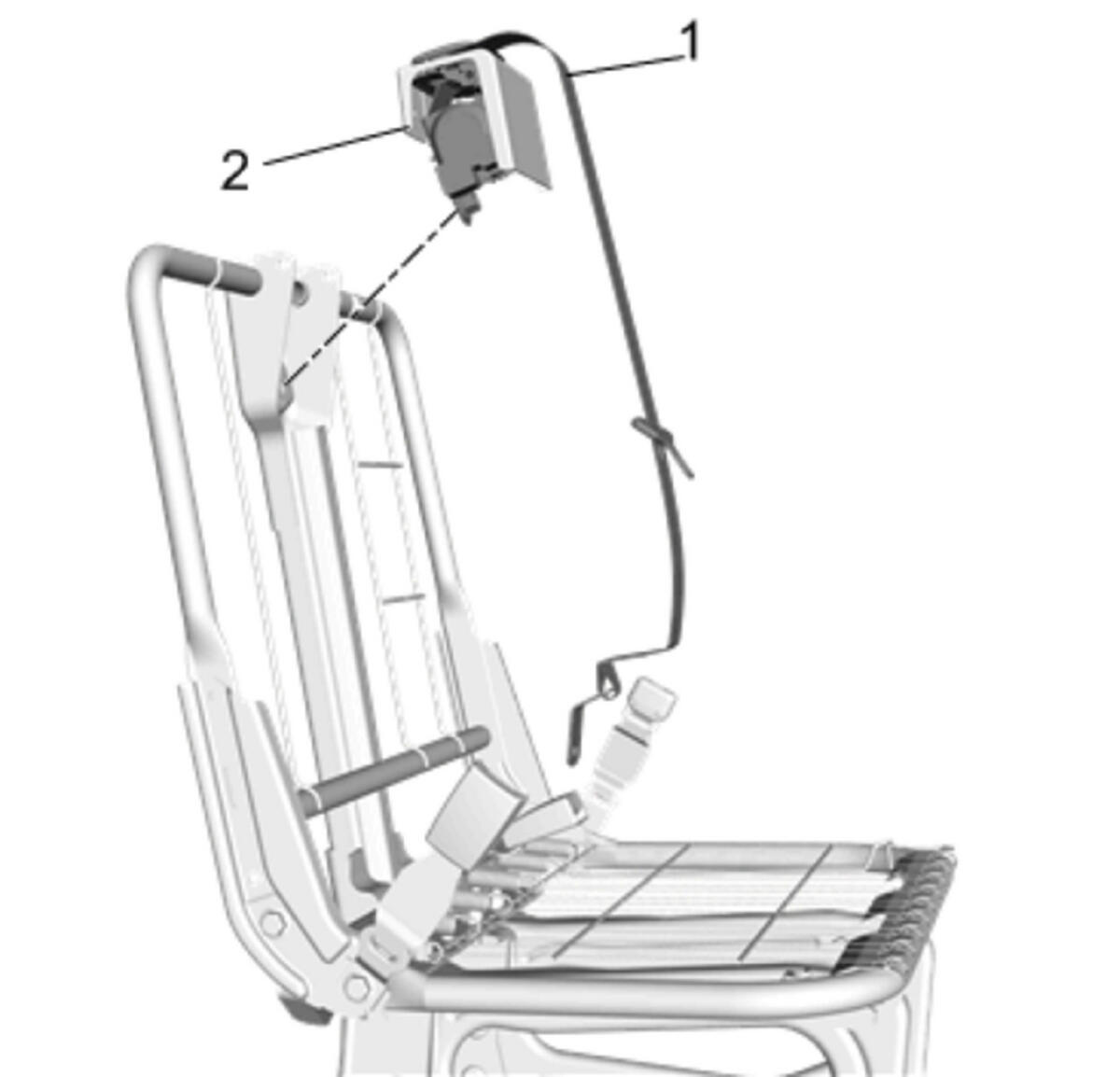

  7. GM4867367Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Retractor Cover (2) - Remove

  8. Center Rear Seat Belt (1) - Remove
