Removal Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. Battery Negative Cable Disconnection and Connection (Single Battery) Battery Negative Cable Disconnection and Connection (Dual Battery)
Note the location and routing of the wiring harness to ensure proper reinstallation.
Courtesy of GENERAL MOTORS COMPANY

Battery Positive Cable Bolt(1) - Loosen
Battery Positive Cable(2) - Reposition away
Courtesy of GENERAL MOTORS COMPANY

Wheelhouse Splash Shield -Right Side(3) - Remove - Wheelhouse Splash Shield Replacement (Left Side)Wheelhouse Splash Shield Replacement (Right Side)
Courtesy of GENERAL MOTORS COMPANY

Battery Positive Cable Retainer Bolt (2) - Remove
Battery Positive Cable Retainer(1) - Disengage[2x]
Courtesy of GENERAL MOTORS COMPANY

Battery Positive Cable Retainer(1) - Disengage[5x]
Courtesy of GENERAL MOTORS COMPANY

Battery Positive Cable Nut(2)@Starter Solenoid - Remove
Battery Positive Cable(3) - Remove
Battery Positive Cable Retainer(1) - Disengage
Lower the vehicle.
Courtesy of GENERAL MOTORS COMPANY

Battery Positive Cable Retainer(1) - Disengage[2x]
Retainer Clip(2) - Disengage[2x]
Courtesy of GENERAL MOTORS COMPANY

Battery Positive Cable Retainer(1) - Disengage[2x]
Remove the engine cover. Engine Cover Replacement
Courtesy of GENERAL MOTORS COMPANY

Generator Terminal Boot (3) - Reposition
Battery Positive Cable Nut(2) - Remove
Battery Positive Cable(1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Accessory Wiring Junction Block Cover(1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Battery Positive Cable Nut(1) - Remove
Battery Positive Cable(2) - Remove
Courtesy of GENERAL MOTORS COMPANY

Electrical Connector(1) - Disconnect
Battery Positive Cable Retainer(2) - Disengage[3x]
Remove the air cleaner assembly. Air Cleaner Assembly Replacement
Courtesy of GENERAL MOTORS COMPANY

Battery Positive Cable Retainer(1)@ Upper Fan Shroud (2) - Disengage[5x]
Courtesy of GENERAL MOTORS COMPANY

Battery Positive Cable Nut(2)@Battery Distribution Engine Compartment Fuse Block(1) - Remove
Battery Positive Cable(3) - Remove
Courtesy of GENERAL MOTORS COMPANY

Charge Air Cooler Inlet Air Tube(3) - Remove - Charge Air Cooler Inlet Air Tube Replacement
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Note the location and routing of the wiring harness to ensure proper reinstallation.

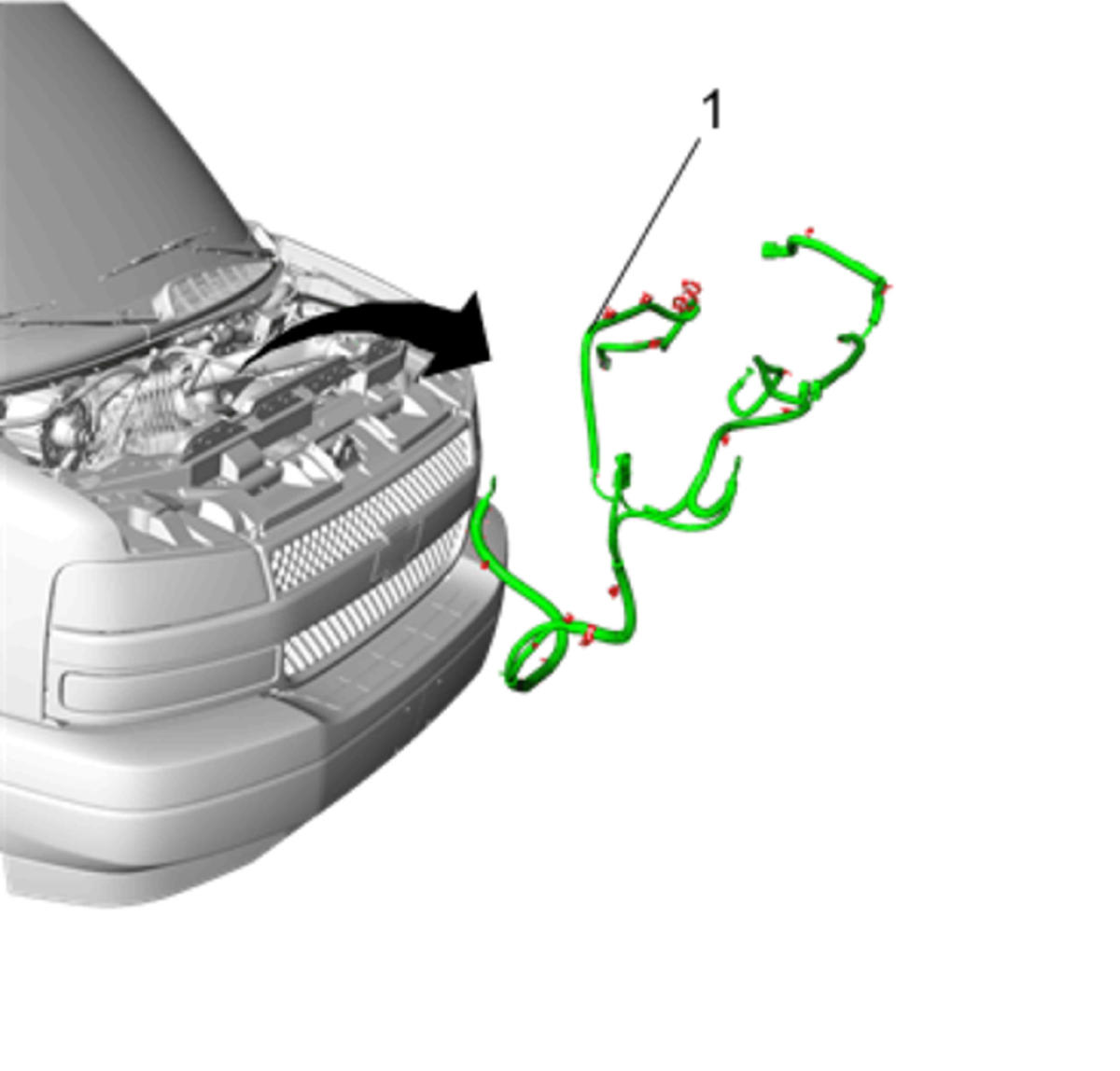

Battery Positive Cable(1) - Remove
