Installation Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

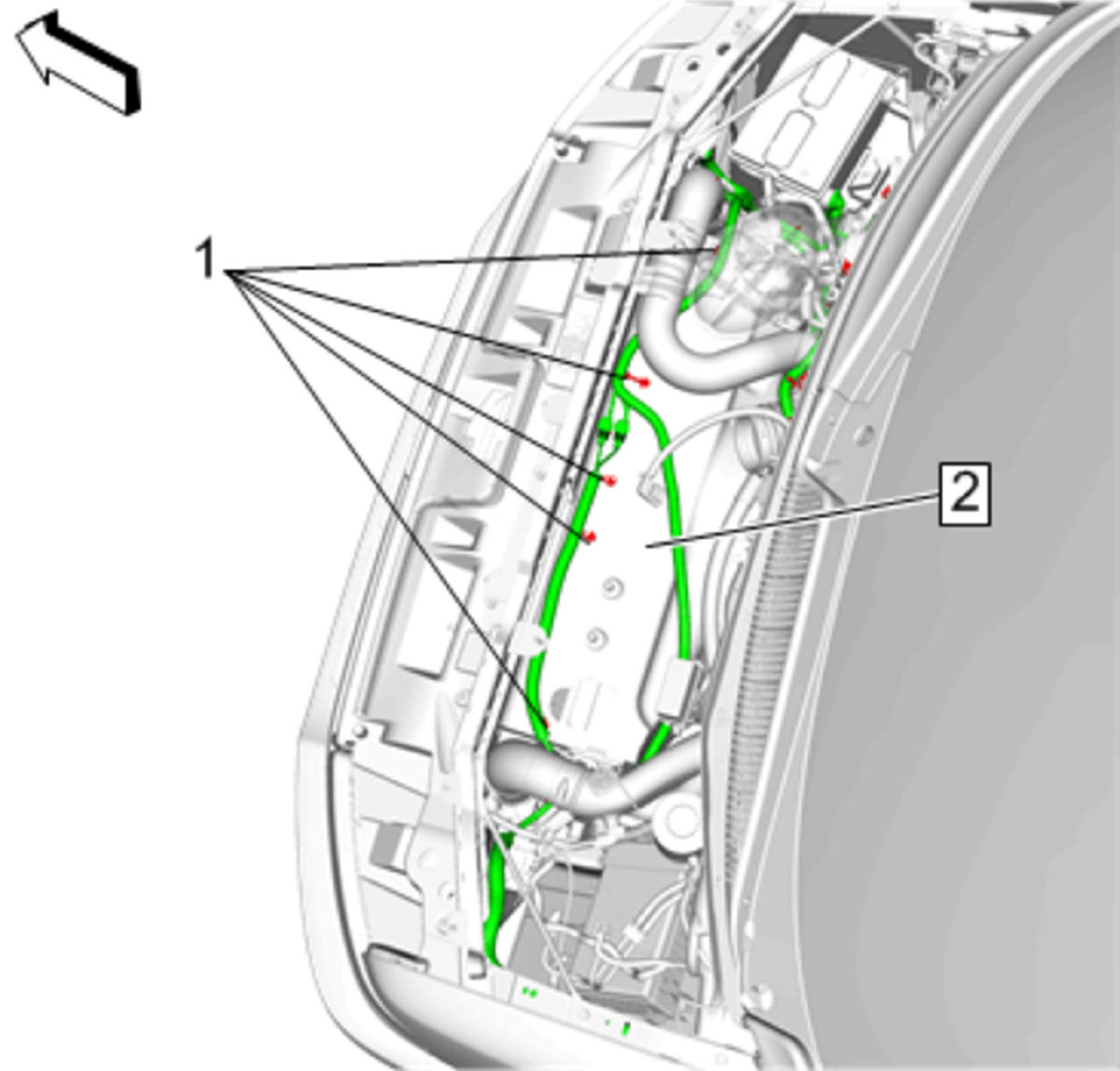

Battery Positive Cable Retainer(1)@ Upper Fan Shroud (2) - Engage[5x]
Courtesy of GENERAL MOTORS COMPANY

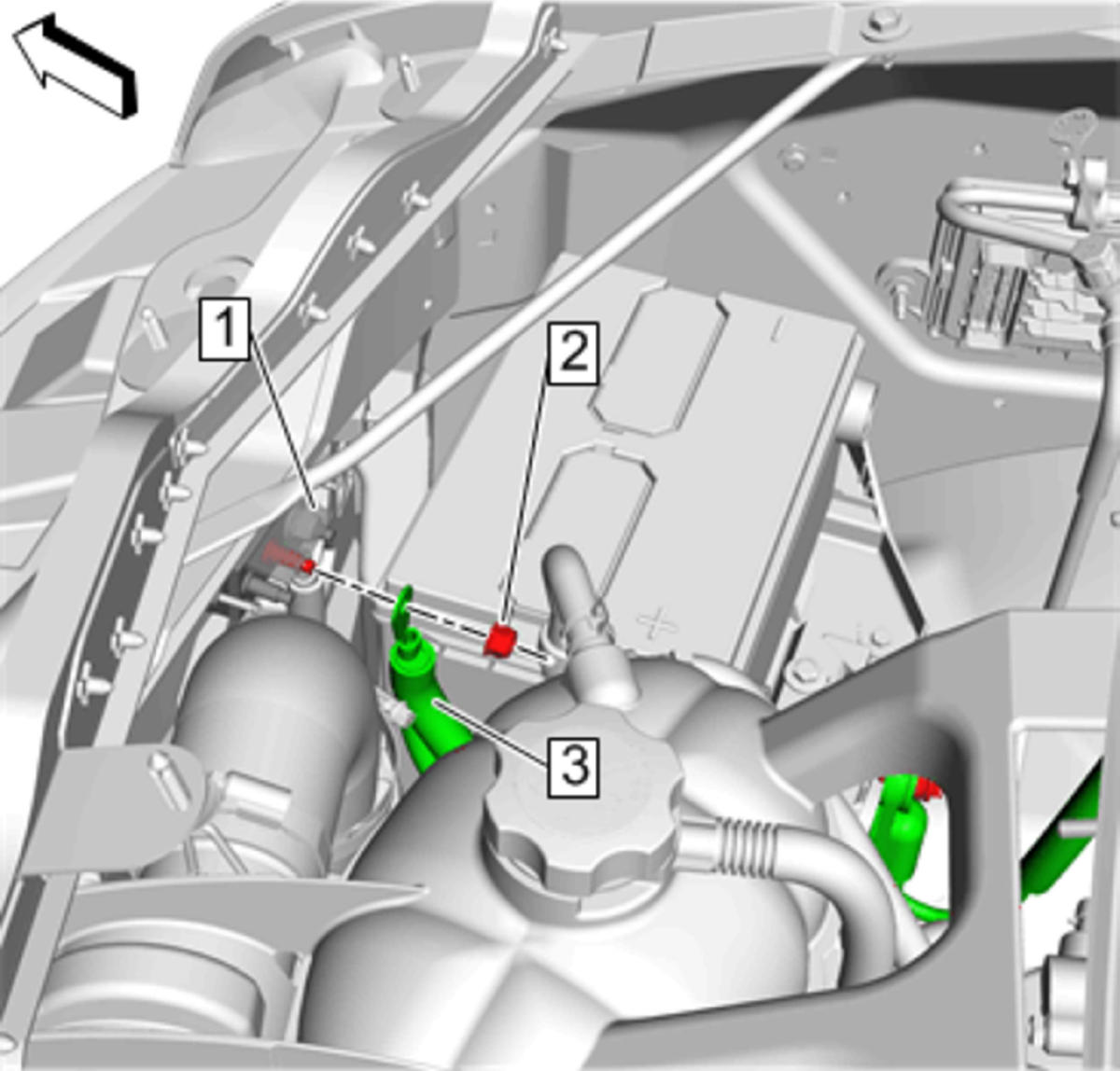

Battery Positive Cable(3)@Battery Distribution Engine Compartment Fuse Block(1) - Install

CAUTION:

Refer to Fastener Caution

Battery Positive Cable Nut(2) - Install and tighten10 N.m (89 lb in)
Courtesy of GENERAL MOTORS COMPANY

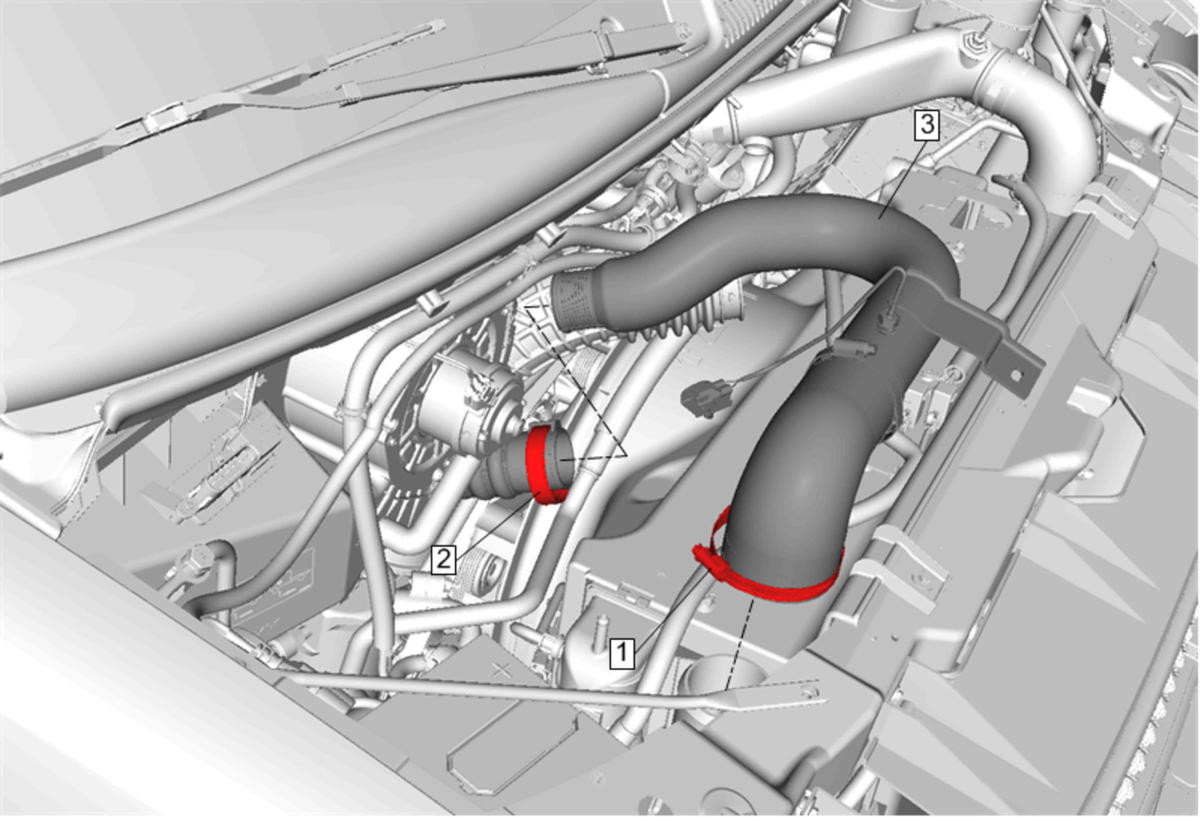

Charge Air Cooler Inlet Air Tube(3) - Install - Charge Air Cooler Inlet Air Tube Replacement
Courtesy of GENERAL MOTORS COMPANY

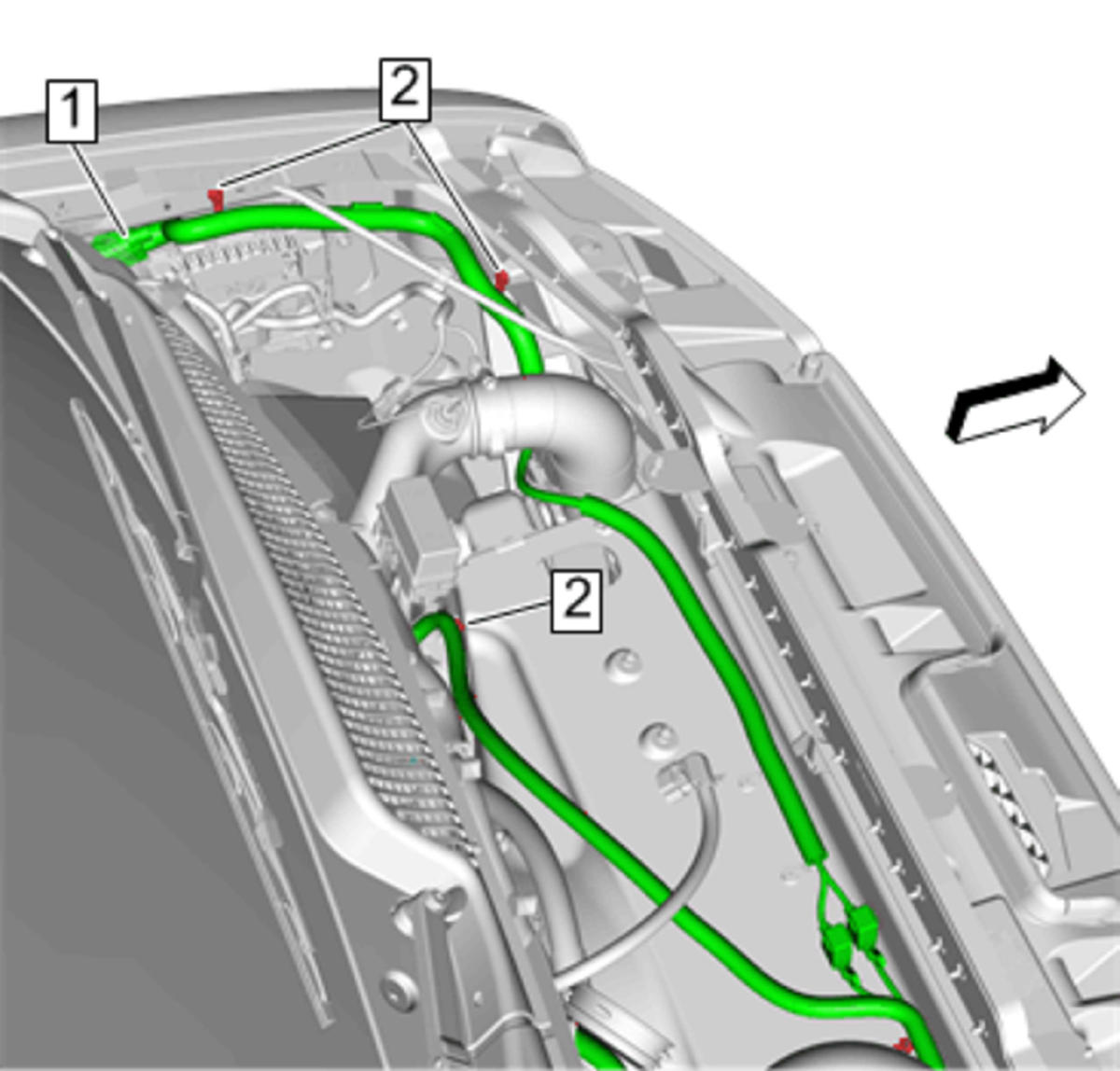

Electrical Connector(1) - Connect
Battery Positive Cable Retainer(2) - Engage[3x]
Install the air cleaner assembly. Air Cleaner Assembly Replacement
Courtesy of GENERAL MOTORS COMPANY

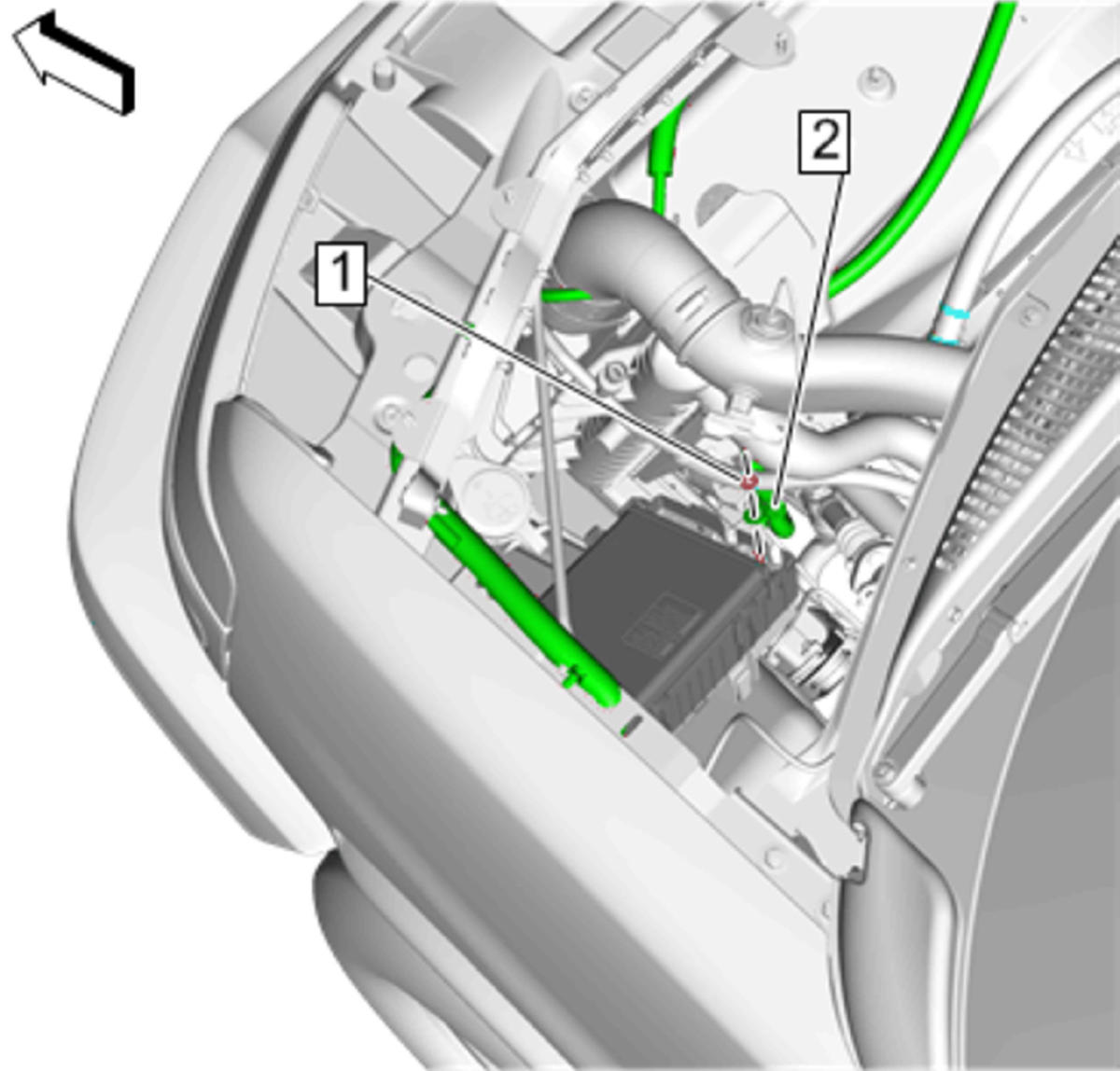

Battery Positive Cable(2) - Install
Battery Positive Cable Nut(1) - Install and tighten10 N.m (89 lb in)
Courtesy of GENERAL MOTORS COMPANY

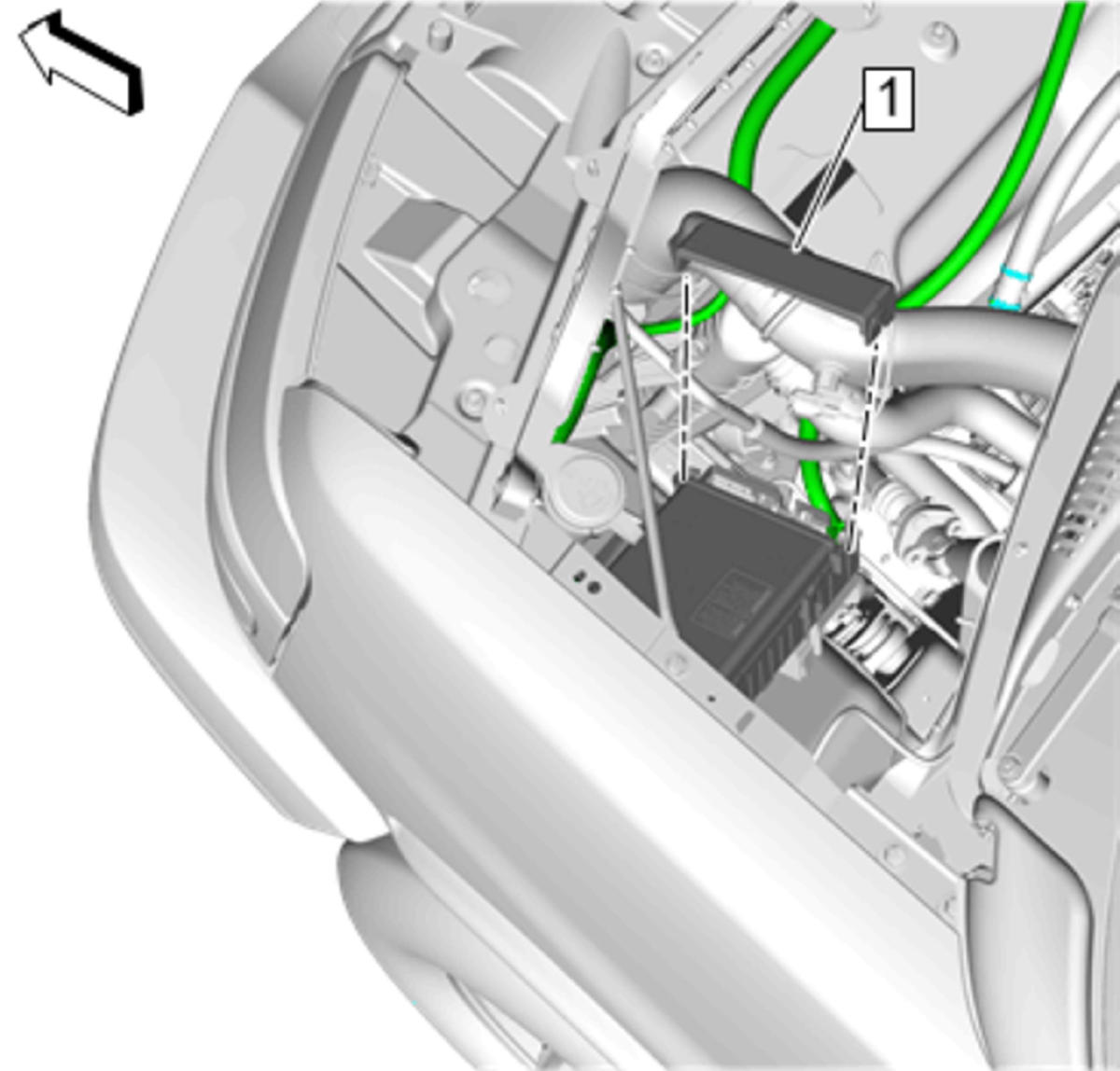

Accessory Wiring Junction Block Cover(1) - Install
Courtesy of GENERAL MOTORS COMPANY

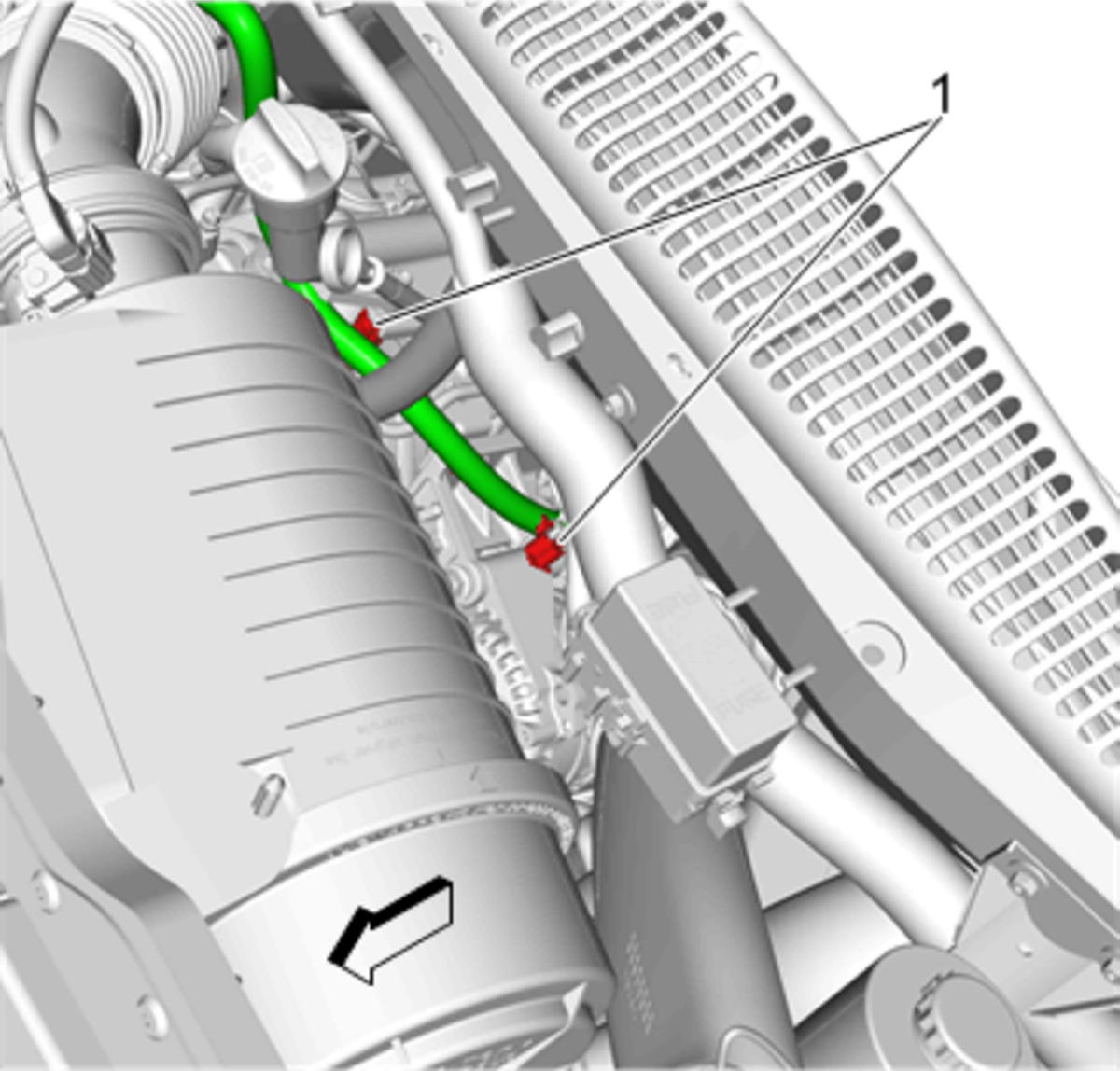

Battery Positive Cable Retainer(1) - Engage[2x]
Courtesy of GENERAL MOTORS COMPANY

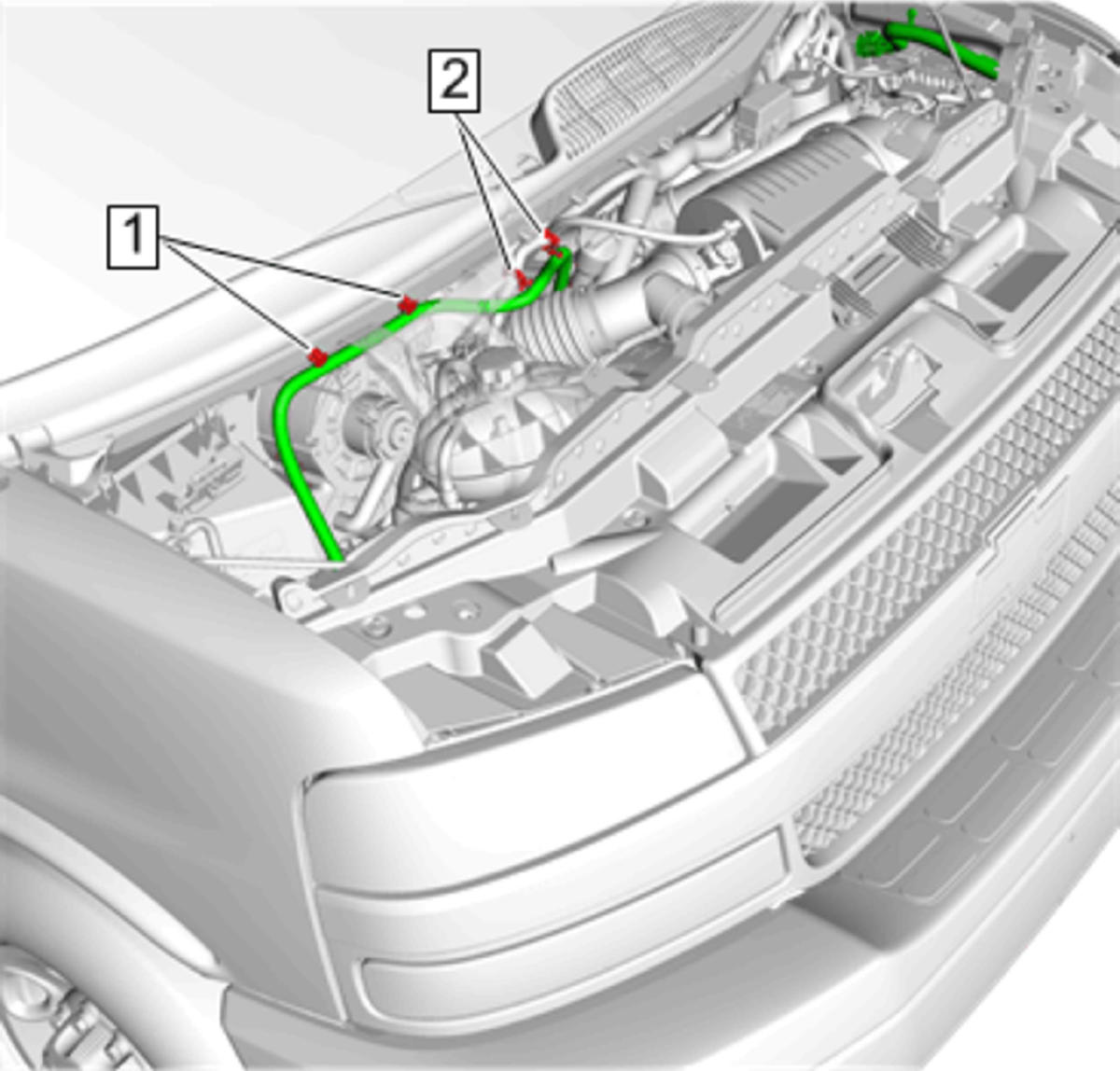

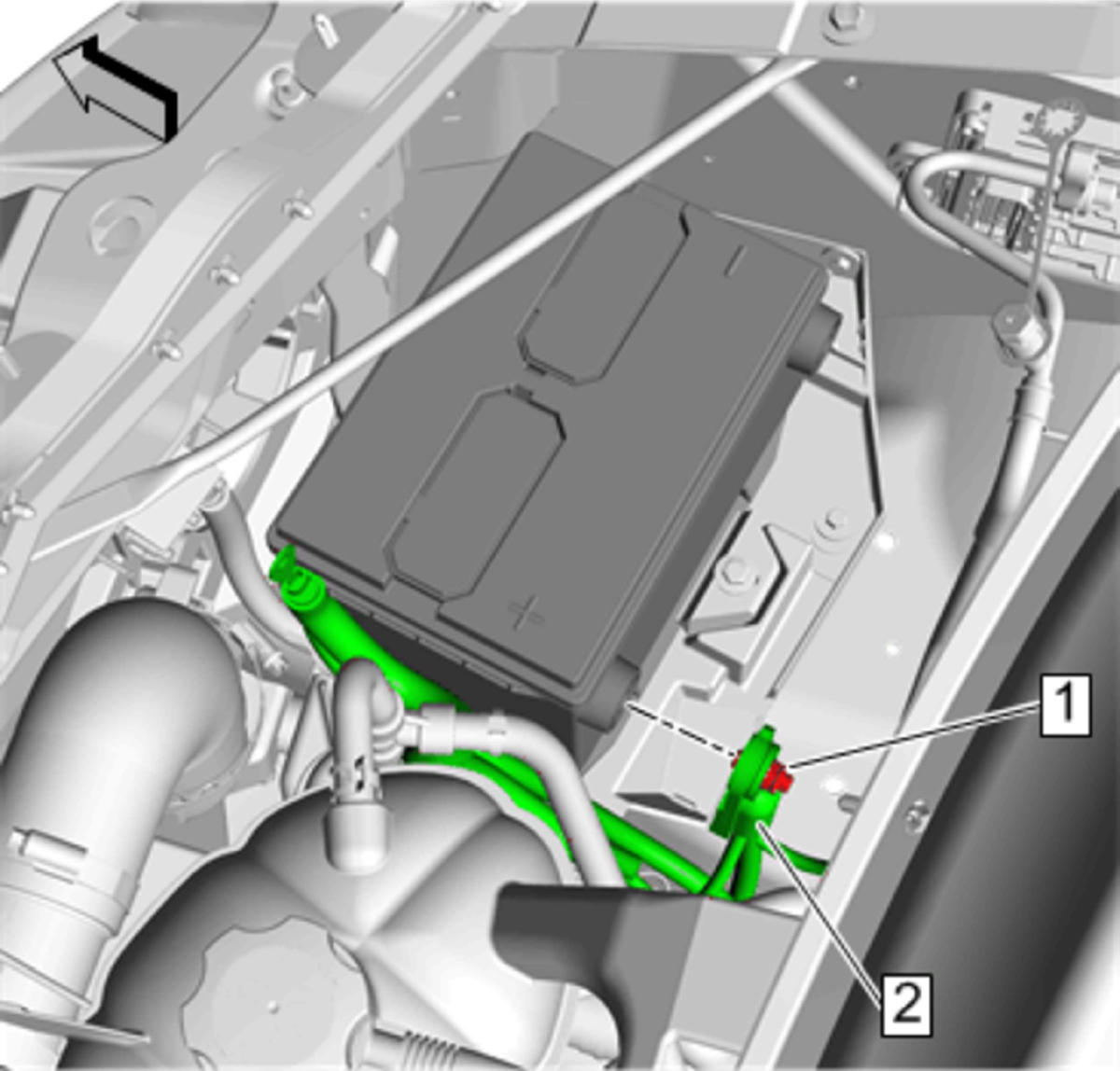

Battery Positive Cable Retainer(1) - Engage[2x]
Retainer Clip(2) - Engage[2x]
Courtesy of GENERAL MOTORS COMPANY

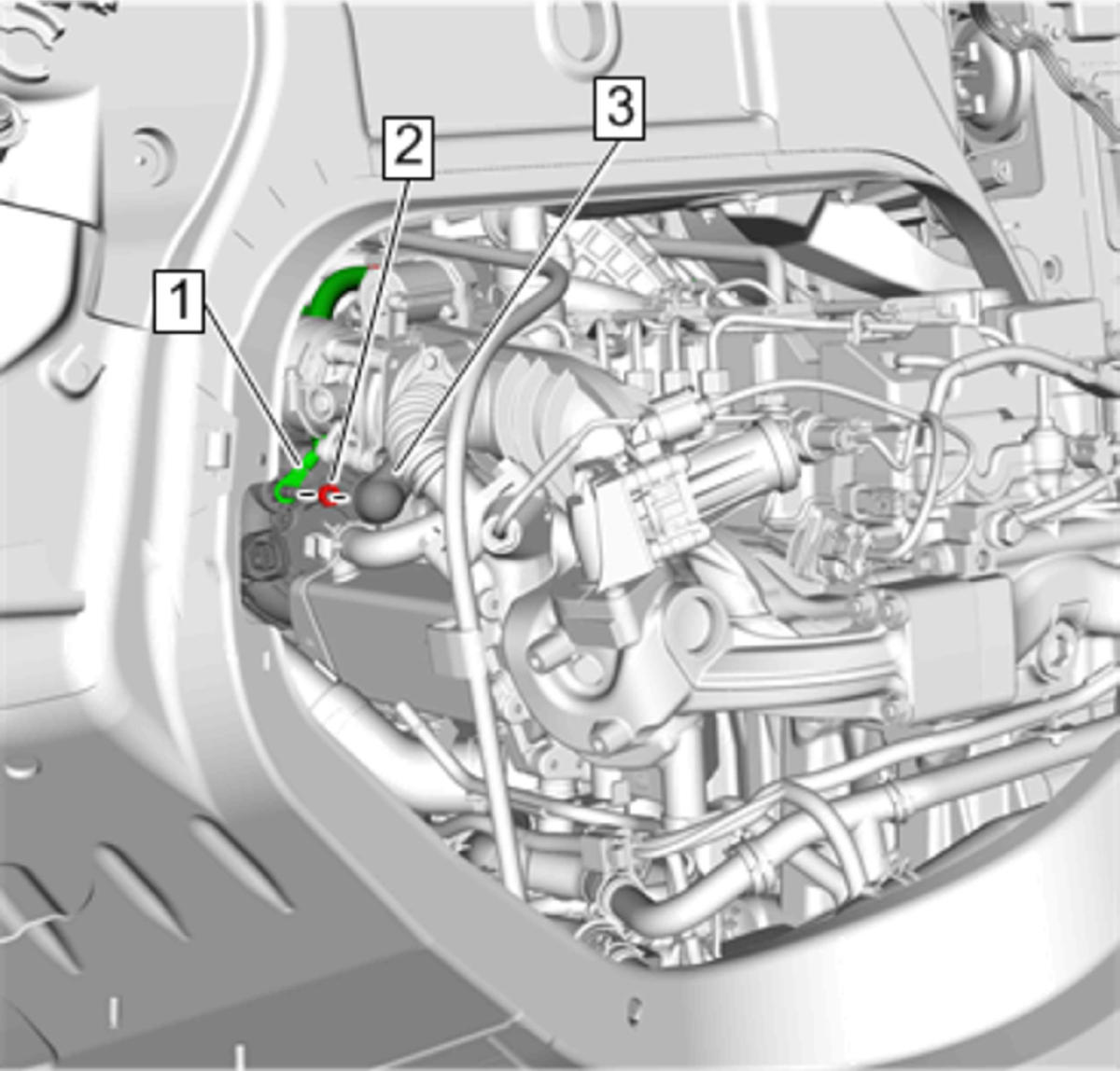

Battery Positive Cable(1) - Install
Battery Positive Cable Nut(2) - Install and tighten15 N.m (11 lb ft)
Generator Terminal Boot (3) - Install
Install the engine cover. Engine Cover Replacement
Raise and support the vehicle. Lifting and Jacking the Vehicle
Courtesy of GENERAL MOTORS COMPANY

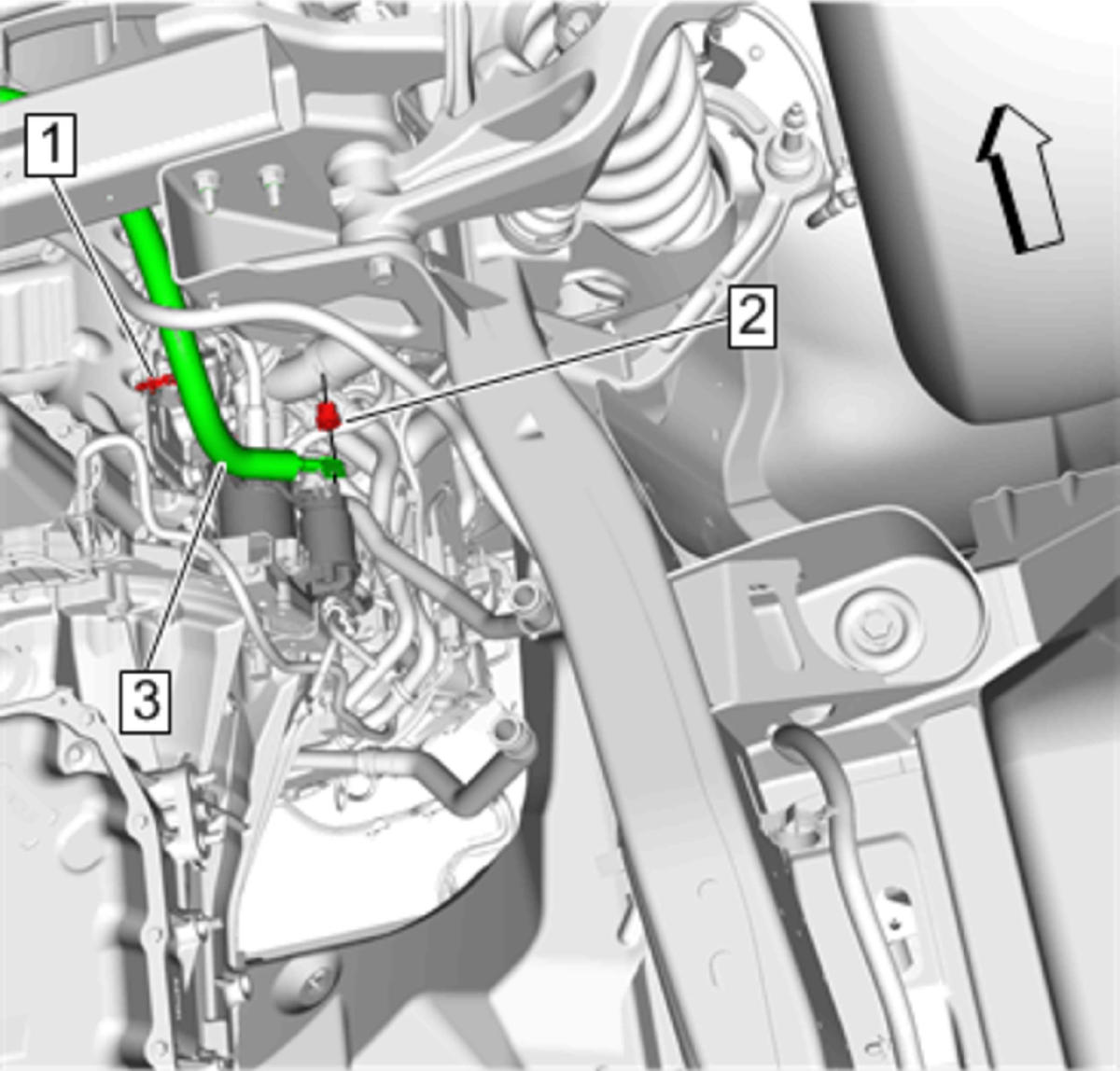

Battery Positive Cable(3) - Install
Battery Positive Cable Nut(2)@Starter Solenoid - Install and tighten12.5 N.m (111 lb in)
Battery Positive Cable Retainer(1) - Engage
Courtesy of GENERAL MOTORS COMPANY

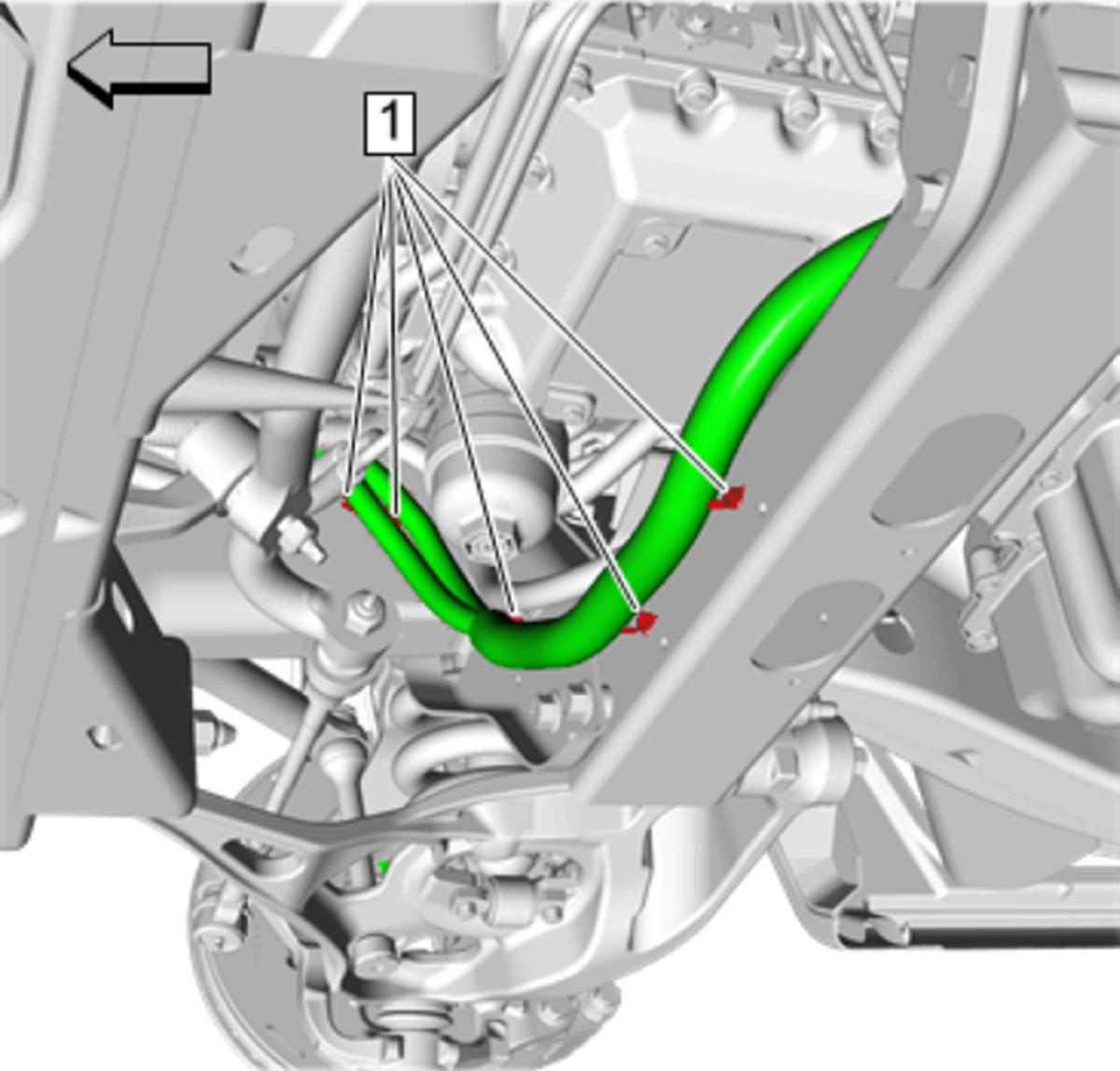

Battery Positive Cable Retainer(1) - Engage[5x]
Courtesy of GENERAL MOTORS COMPANY

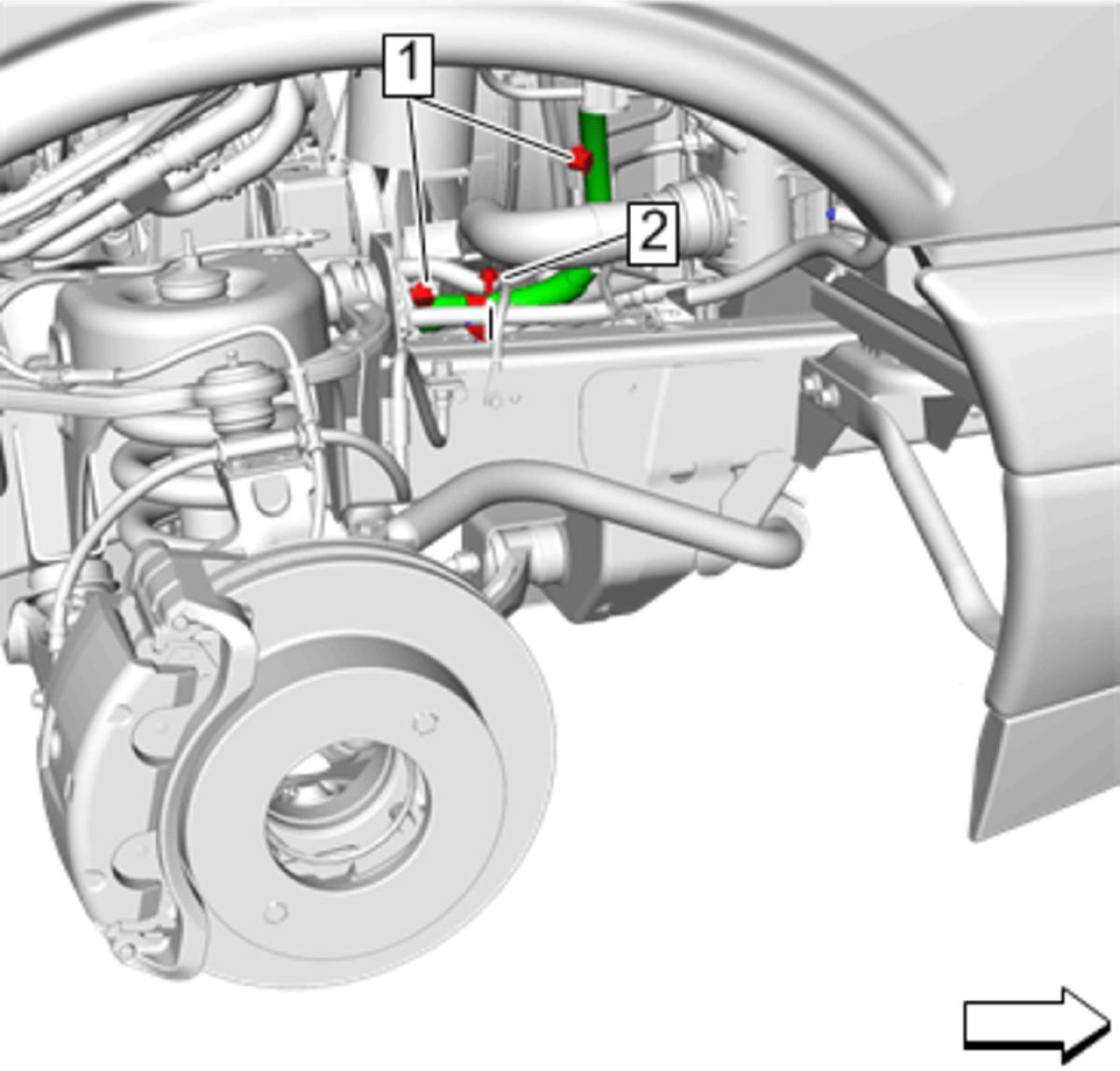

Battery Positive Cable Retainer Bolt (2) - Install and tighten10 N.m (89 lb in)
Battery Positive Cable Retainer(1) - Engage[2x]
Courtesy of GENERAL MOTORS COMPANY

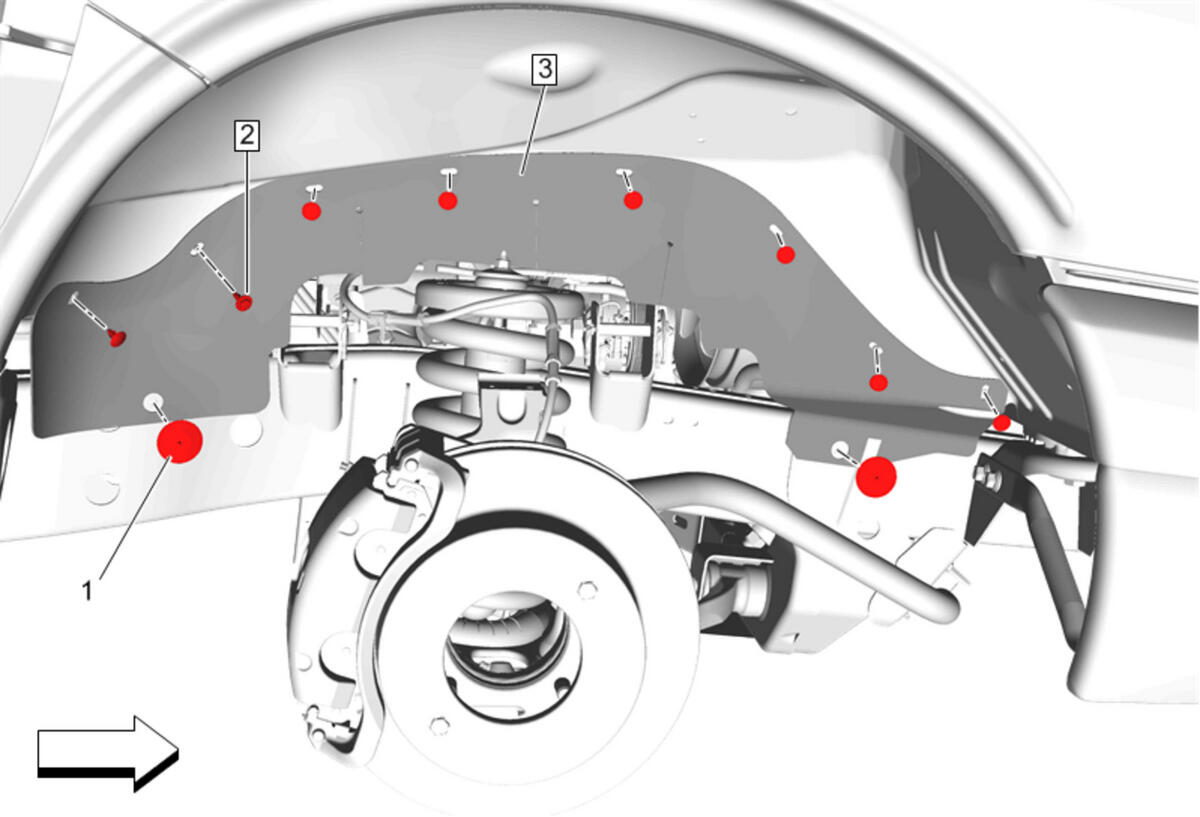

Wheelhouse Splash Shield -Right Side(3) - Install - Wheelhouse Splash Shield Replacement (Left Side)Wheelhouse Splash Shield Replacement (Right Side)
Lower the vehicle.
Courtesy of GENERAL MOTORS COMPANY

Battery Positive Cable(2) - Install
Battery Positive Cable Bolt(1) - Install and tighten13 N.m (115 lb in)
Connect the negative battery cable. Battery Negative Cable Disconnection and Connection (Single Battery) Battery Negative Cable Disconnection and Connection (Dual Battery)
