Removal Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the primary and auxiliary battery negative cables. Battery Negative Cable Disconnection and Connection (Single Battery) Battery Negative Cable Disconnection and Connection (Dual Battery)
- Remove the battery tray. Battery Tray Replacement
- Raise and support the vehicle. Lifting and Jacking the Vehicle

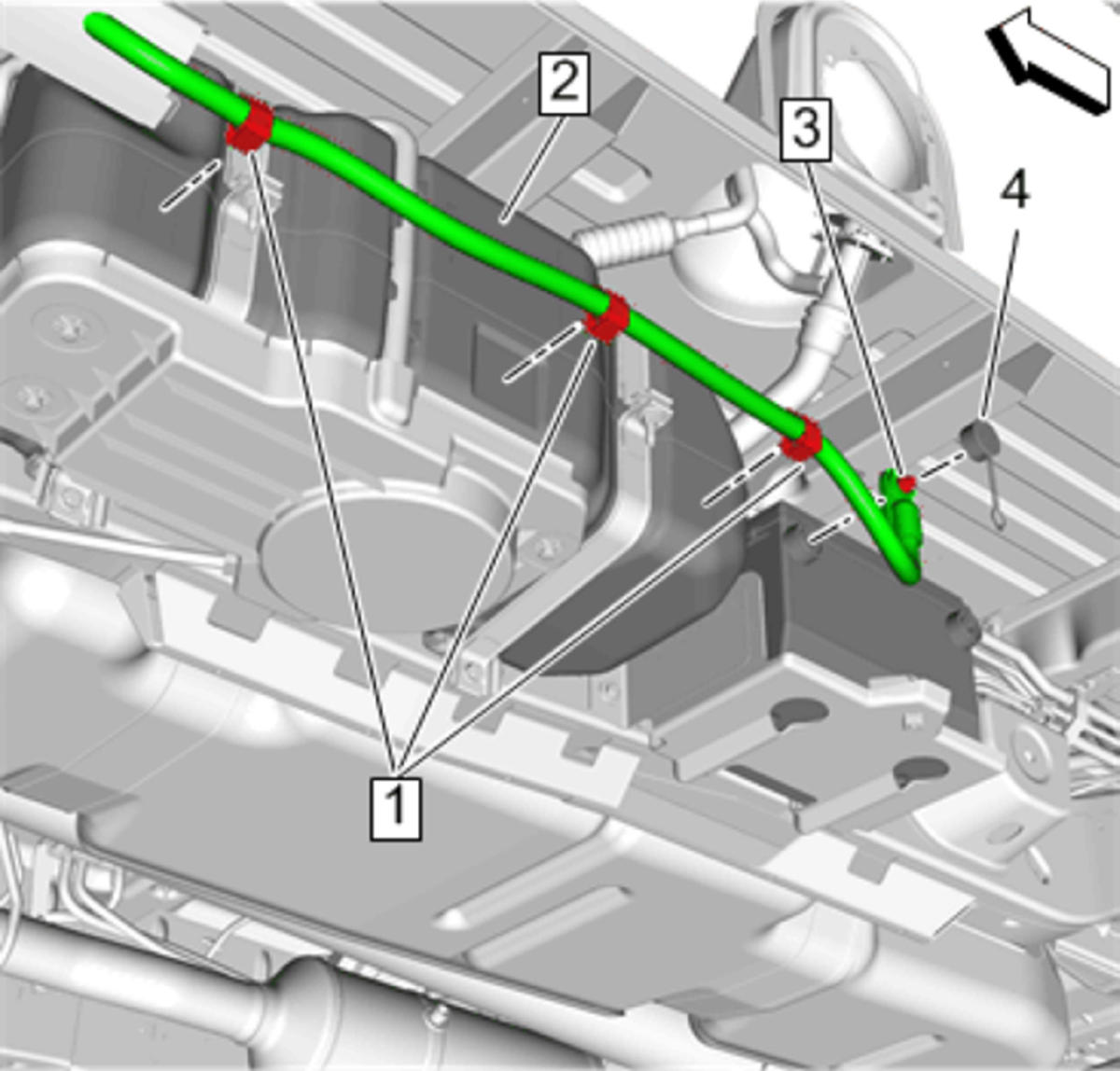

Protective Cap(4) - Reposition
- Auxiliary Battery Positive Cable Fastener(3)@Auxiliary Battery - Loosen
- Retainer Clip(1)@Emission Reduction Fluid Tank(2) - Disengage[3x]
Retainer(1) - Disengage[8x]
- Retainer Clip(2) - Disengage
Retainer(1) - Disengage[5x]
- Retainer Clip(2) - Disengage
- Lower the vehicle.
Battery Positive Cable Junction Block Nut(3)@Battery Positive Junction Block (1) - Remove
- Auxiliary Battery Positive Cable(2) - Remove
