Installation Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

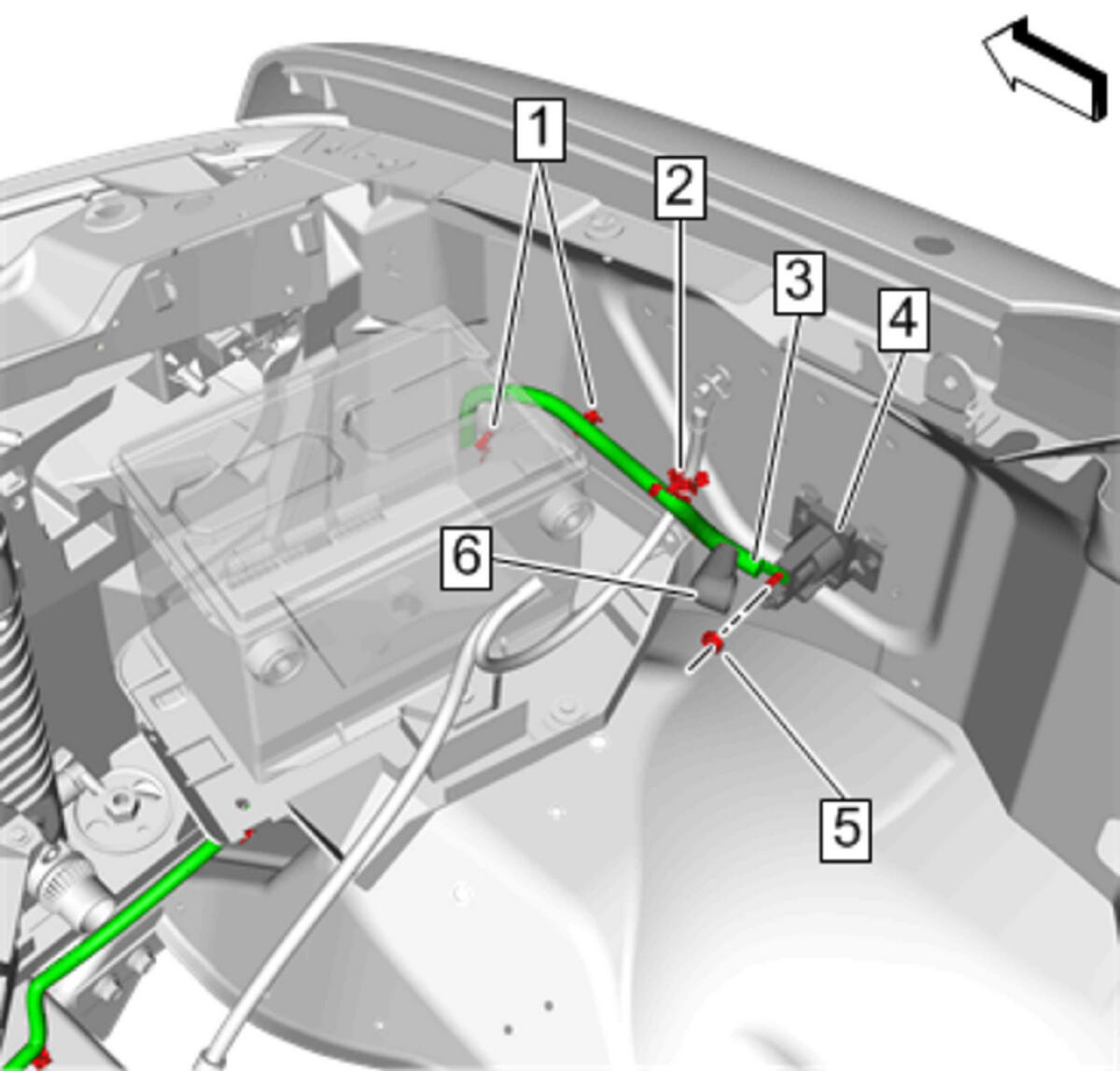

  1. GM4594263Courtesy of GENERAL MOTORS COMPANY

    Auxiliary Battery Negative Cable(3) - Install

    2. CAUTION:

    Refer to Fastener Caution

  2. Auxiliary Battery Negative Cable Fastener(5)@Relay(4) - Install and tighten7.5 N.m (66 lb in)
  3. Retainer(1) - Engage[2x]
  4. Retainer Clip(2) - Engage
  5. Protective Terminal Boot (6) - Install

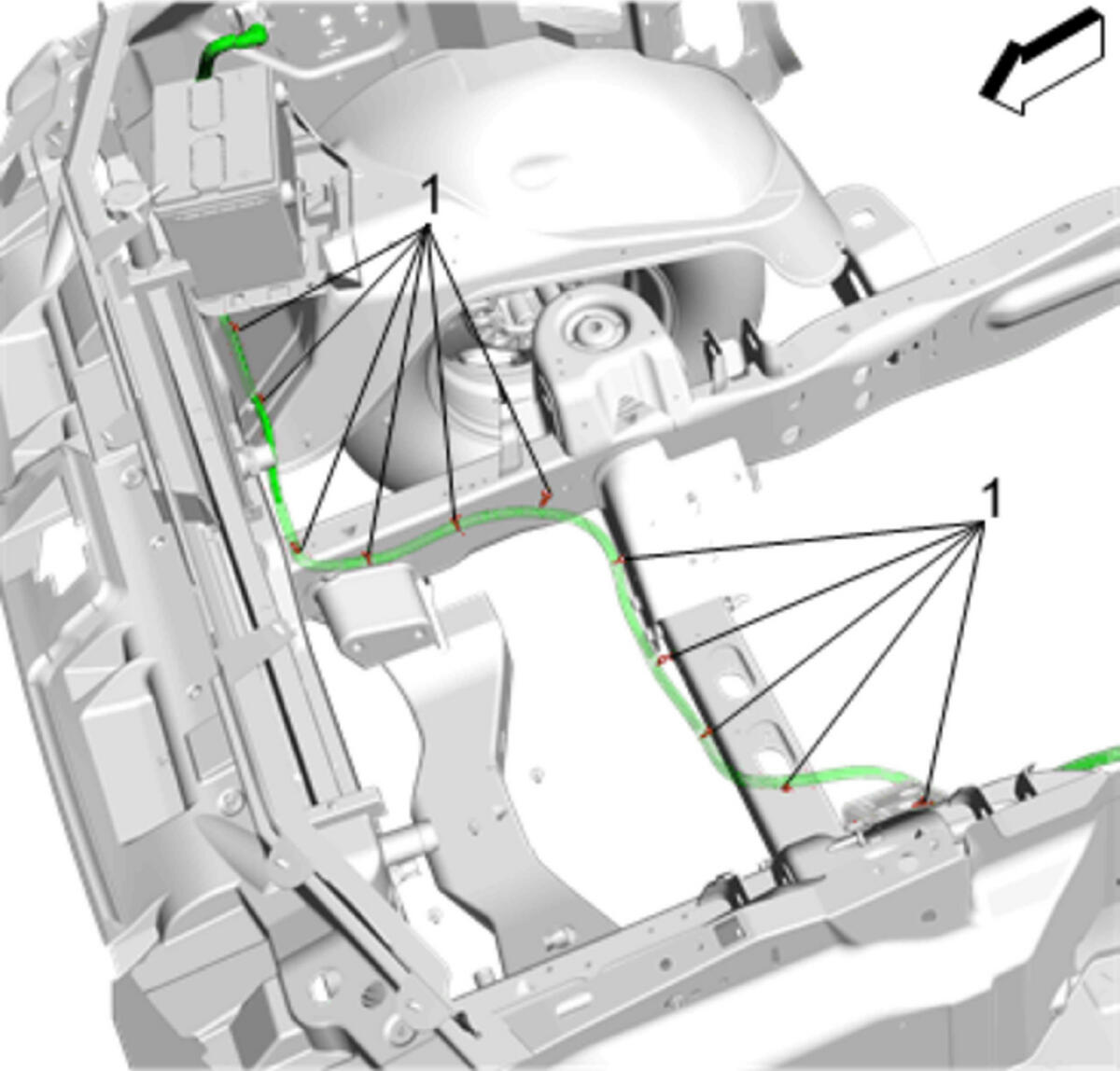

  6. GM4595847Courtesy of GENERAL MOTORS COMPANY

    Retainer(1) - Engage[11x]

  7. Raise and support the vehicle. Lifting and Jacking the Vehicle

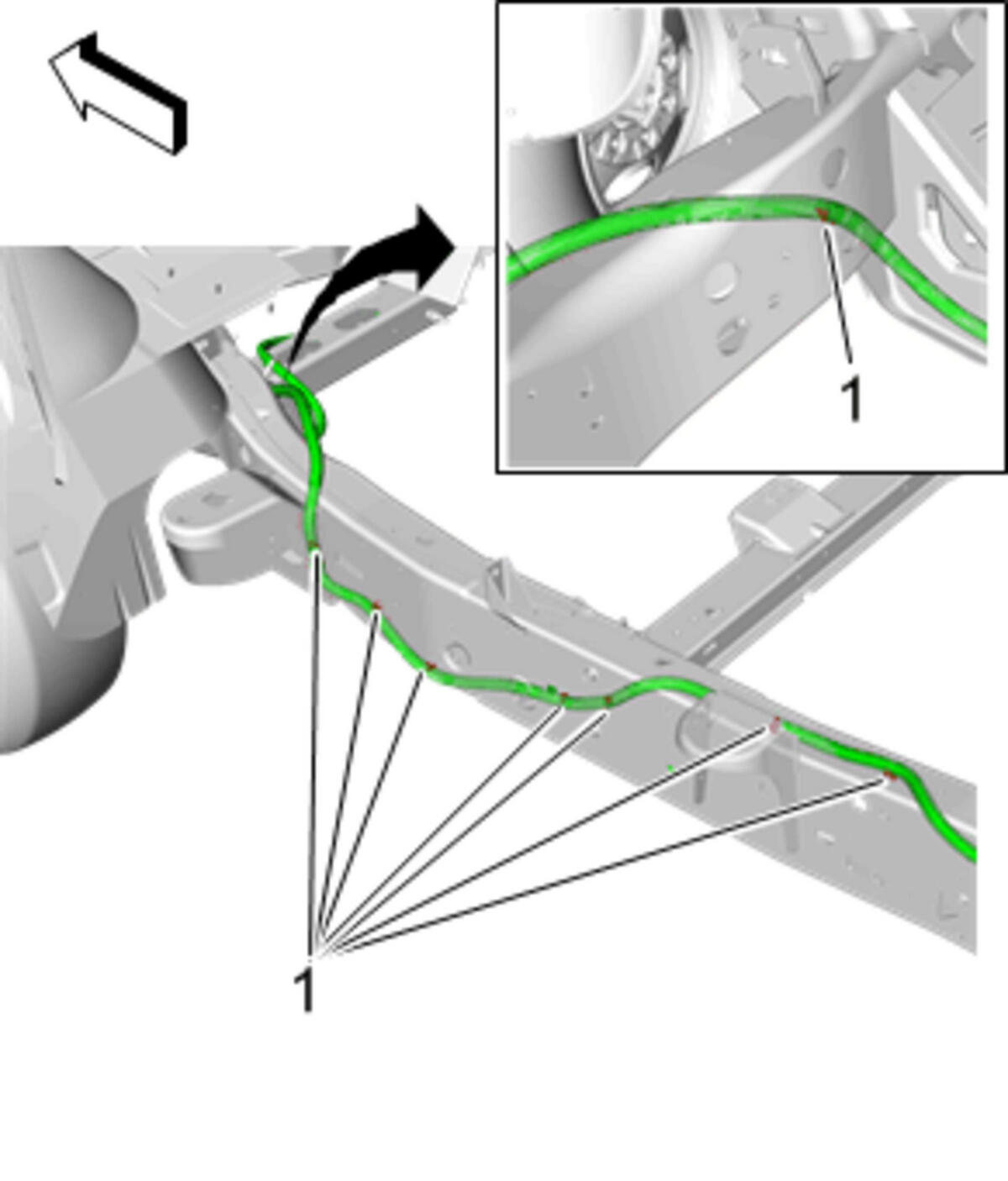

  8. GM4595712Courtesy of GENERAL MOTORS COMPANY

    Retainer(2) - Engage[8x]

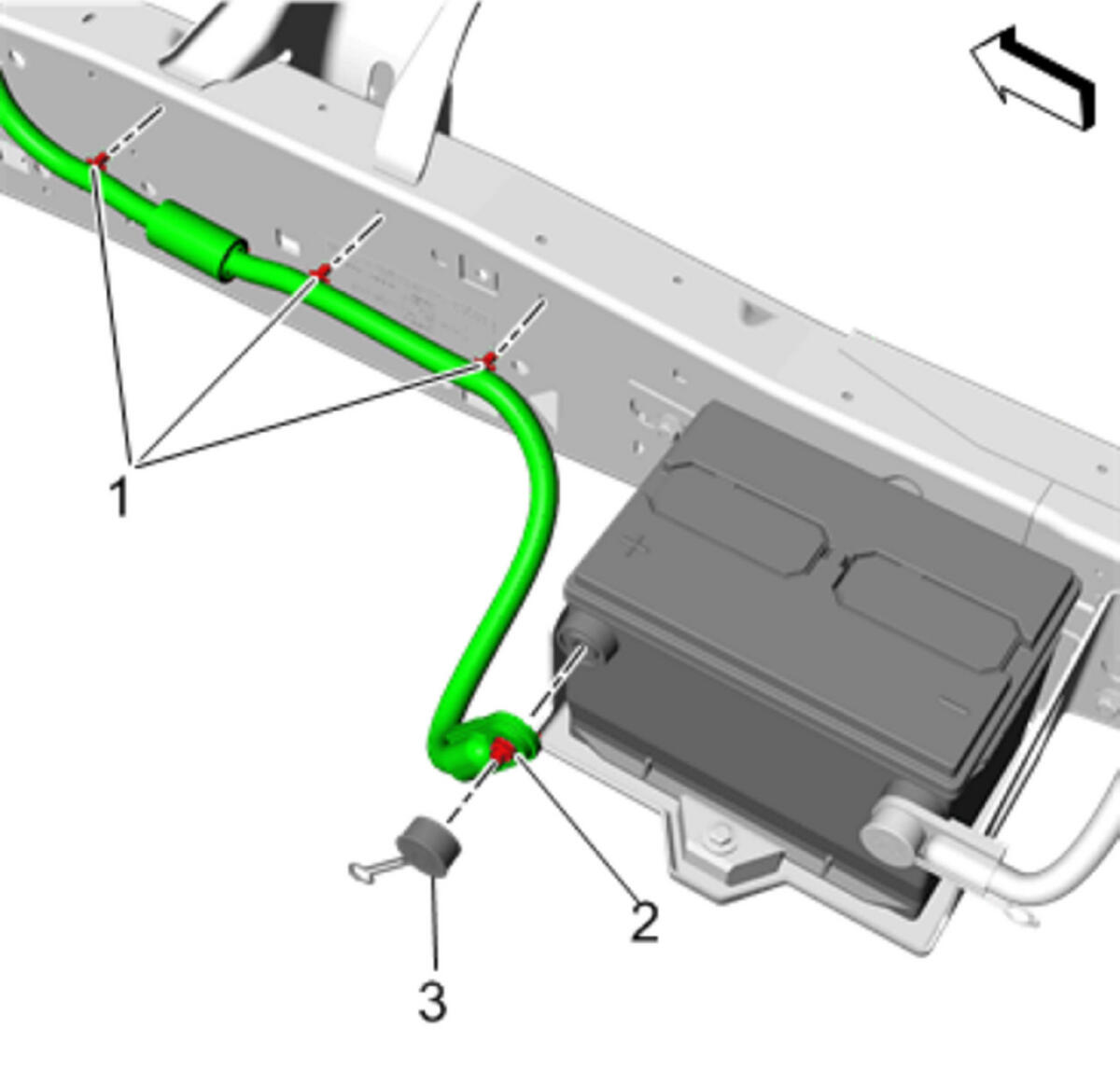

  9. GM4595711Courtesy of GENERAL MOTORS COMPANY

    Auxiliary Battery Negative Cable Fastener(2) - Install and tighten14 N.m (124 lb in)

  10. Protective Cap(3) - Install
  11. Retainer(1) - Engage[3x]
  12. Lower the vehicle.
  13. Install the radiator surge tank. Radiator Surge Tank Replacement (LWN)
  14. Install the battery tray. Battery Tray Replacement
  15. Connect the negative battery cable. Battery Negative Cable Disconnection and Connection (Single Battery) Battery Negative Cable Disconnection and Connection (Dual Battery)
