Rear Window Upper Garnish Molding Replacement - Left Side

Courtesy of GENERAL MOTORS COMPANY

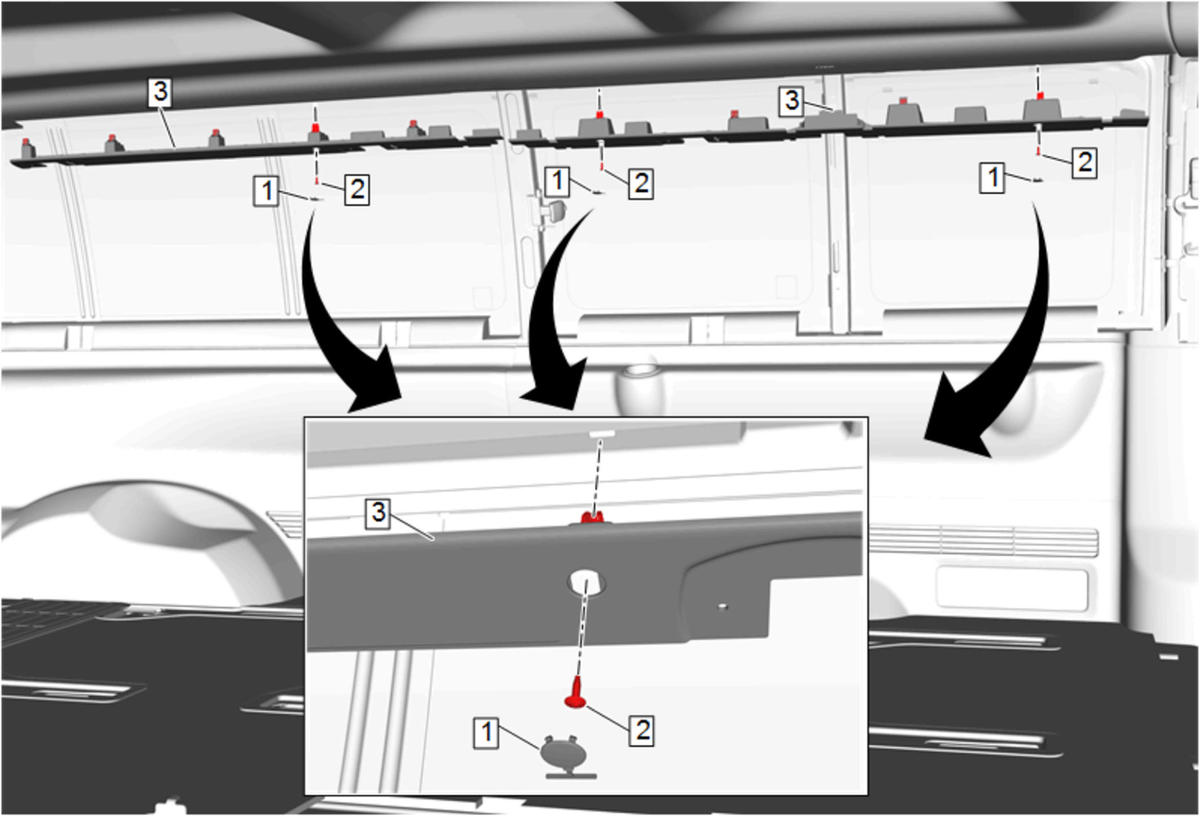

Callout	Component Name
Preliminary Procedures Disable the SIR system. SIR Disabling and Enabling Upper Pillar Garnish Molding Replacement
1	Rear Window Upper Garnish Molding Cap [3x]
2	Rear Window Upper Garnish Molding Bolt [3x] CAUTION: Refer to Fastener Caution . Tighten 2 N.m (18 lb in)
3	Rear Window Upper Garnish Molding - Left Side [2x] Procedure Pull the trim panel toward the inside of the vehicle to disengage the integral retainers. Enable the SIR System. SIR Disabling and Enabling
