Front Side Door Inside Handle Bezel Replacement

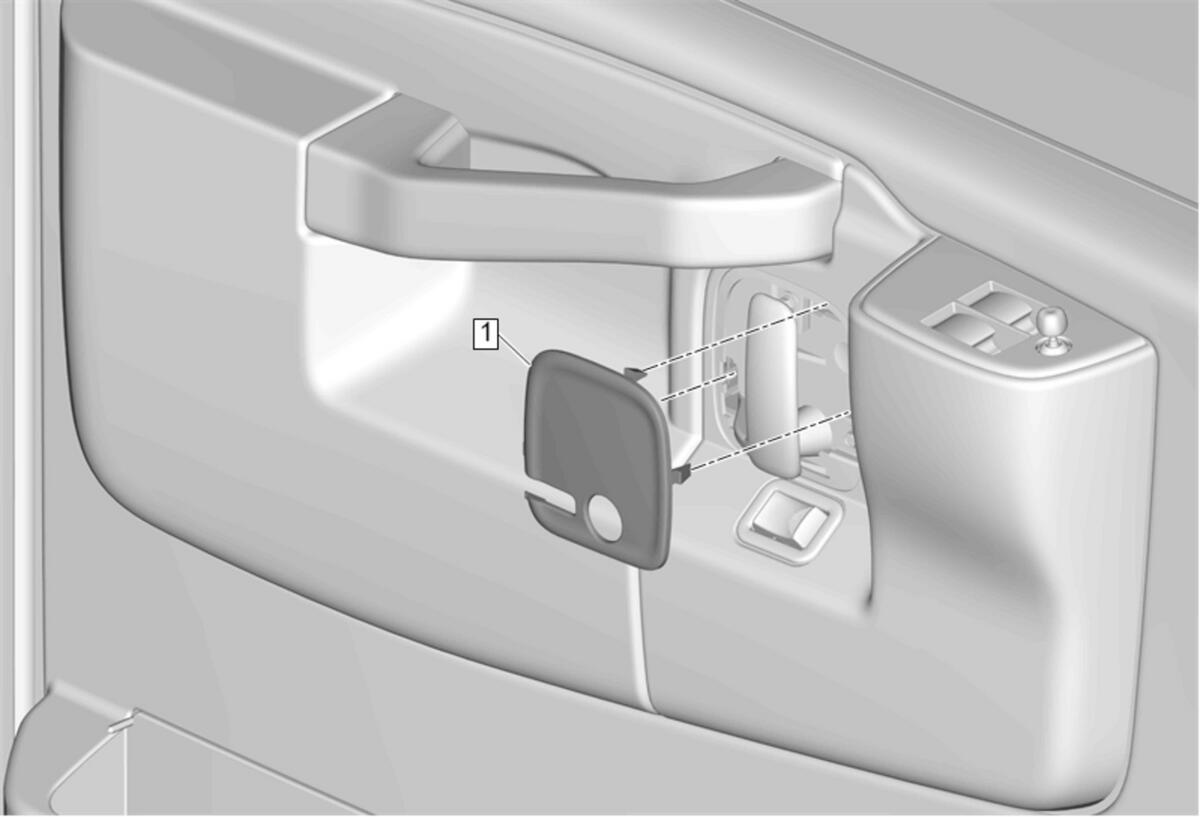

GM4847553Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Front Side Door Inside Handle Bezel
Procedure
Use a plastic trim tool to disengage the integral retaining tabs on the front side door inside handle bezel from the front door trim plate.
