Body Side Rear Trim Panel Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Body Side Rear Garnish Molding Replacement Body Rear Corner Garnish Molding Replacement

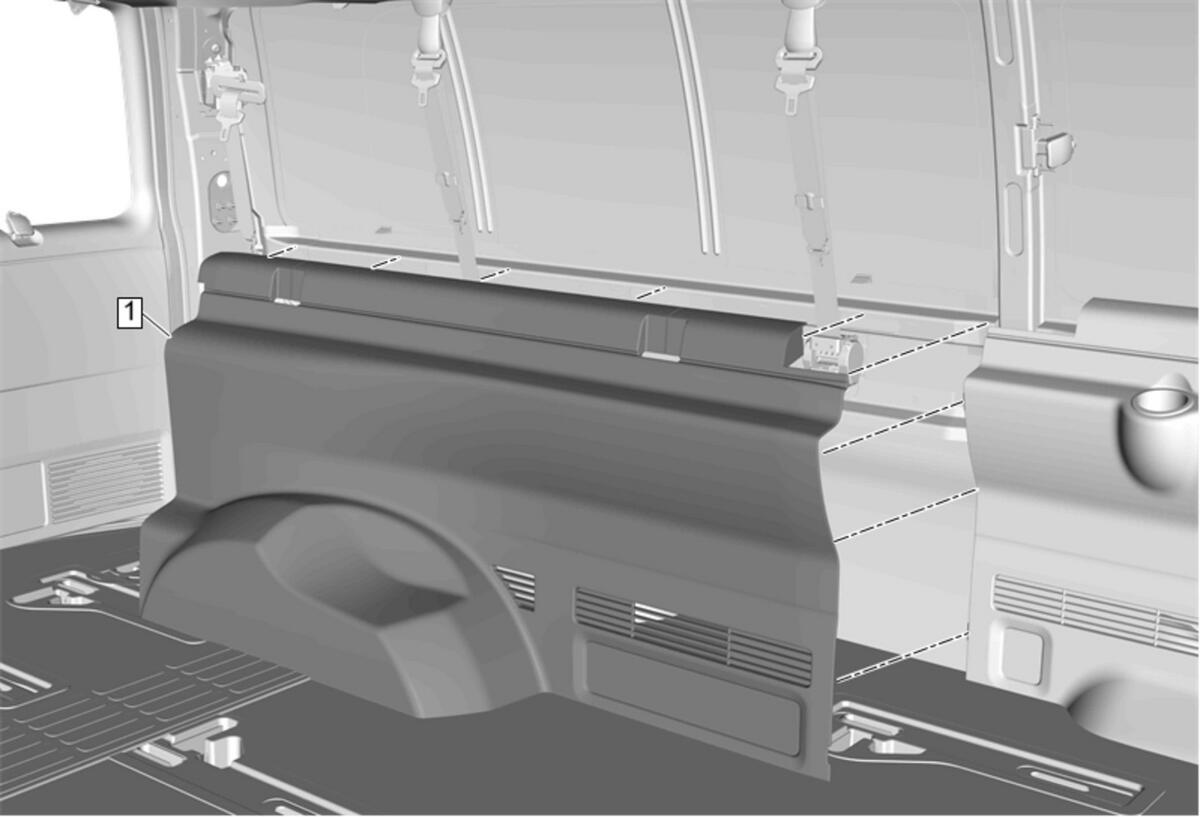

1	Body Side Rear Trim Panel Procedure Use a flat bladed plastic trim tool. Grasp and gently pull inward and forward in order to disengage the retaining tabs. Ensure seat belts are properly seated in the guide slots prior to securing panel.

Callout

Component Name

Preliminary Procedures

Body Side Rear Trim Panel

Procedure

Use a flat bladed plastic trim tool.
Grasp and gently pull inward and forward in order to disengage the retaining tabs.
Ensure seat belts are properly seated in the guide slots prior to securing panel.
