Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

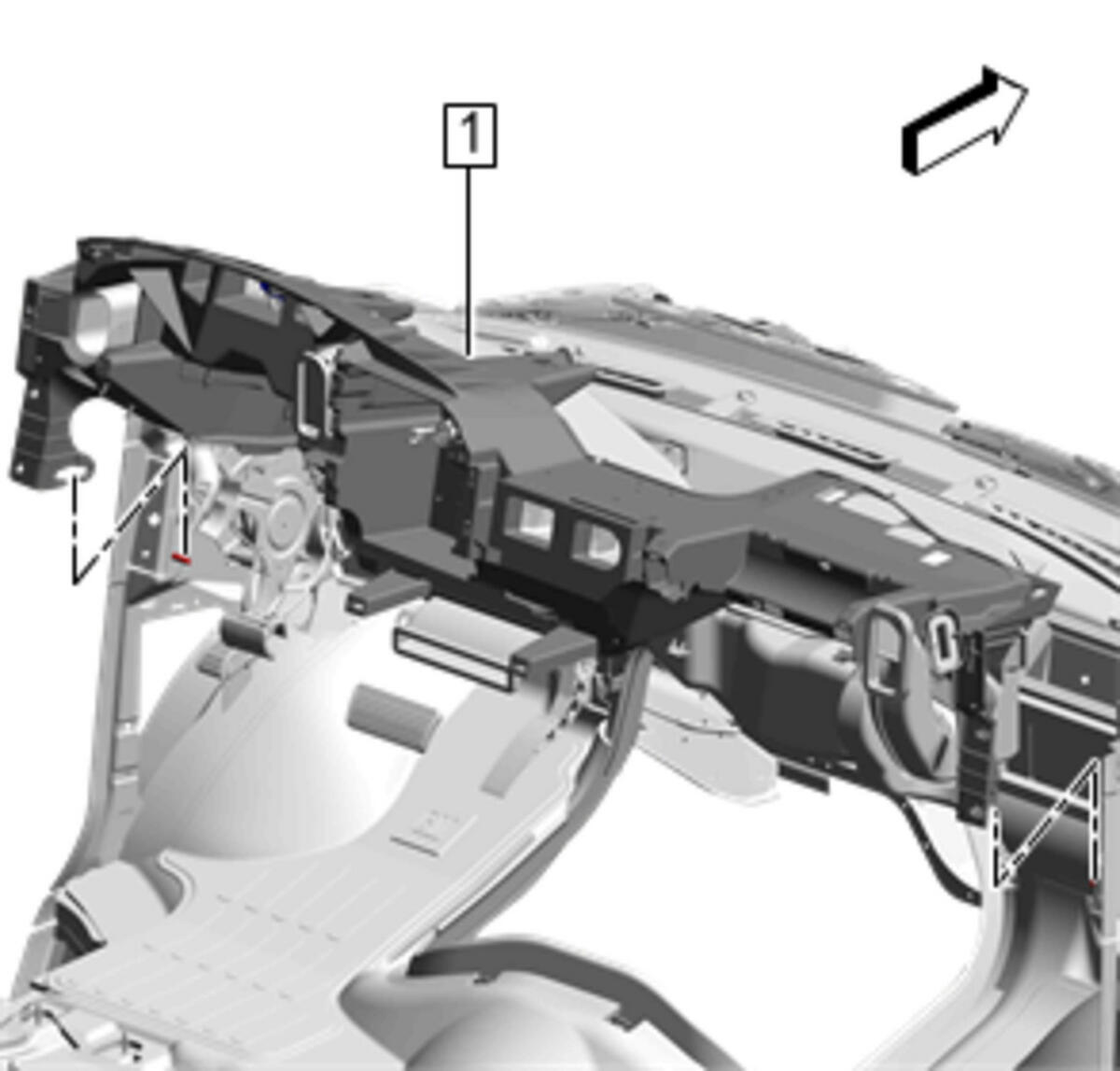

Instrument Panel Carrier(1) - Install
Reposition the instrument panel wiring harness into the vehicle position as was noted in the removal and connect the fasteners securing the instrument panel wiring harness to the instrument panel carrier (1).
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

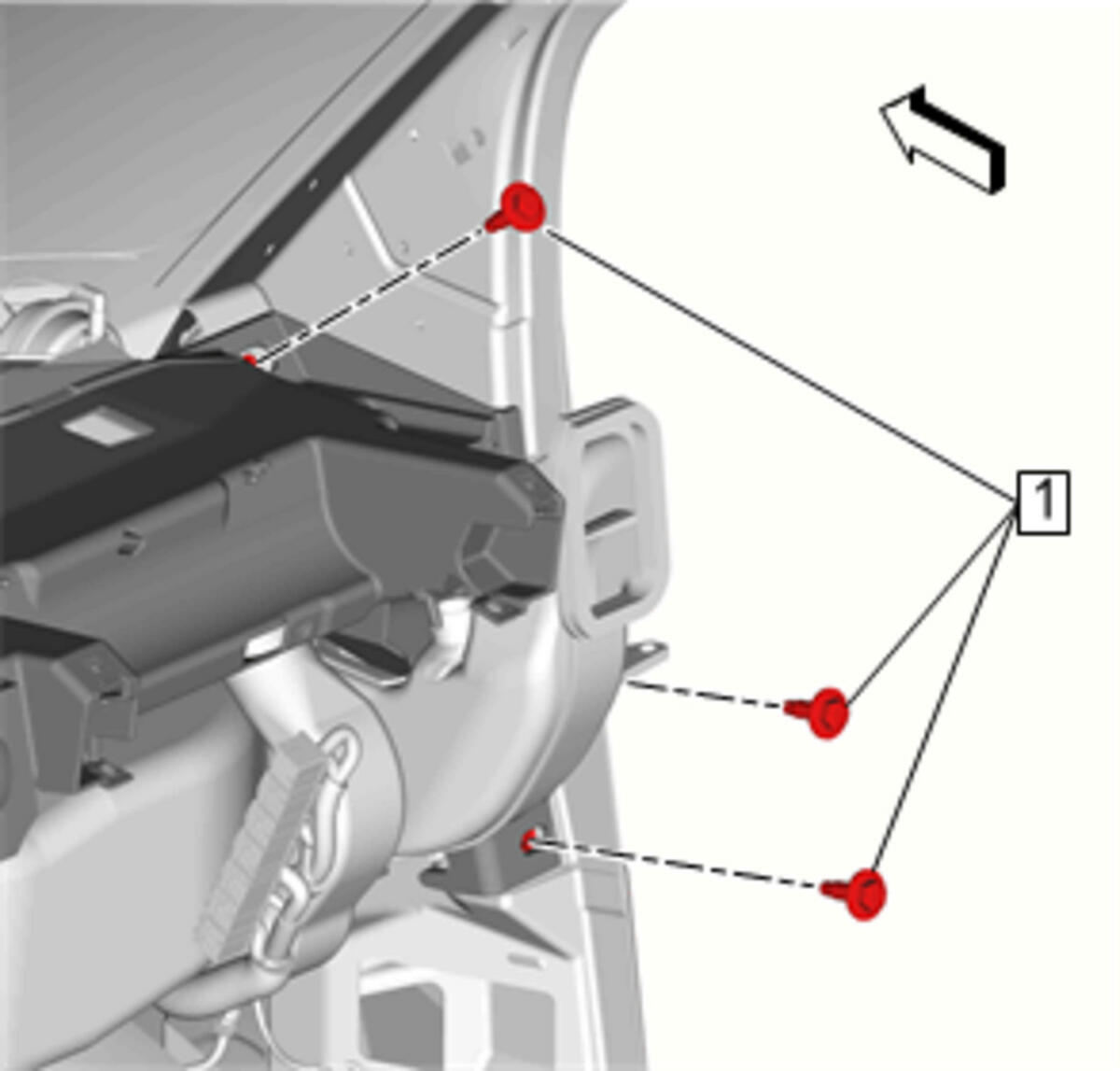

Instrument Carrier Bolt(1) - Install and tighten[3x]50N.m (37 lb ft)
Courtesy of GENERAL MOTORS COMPANY

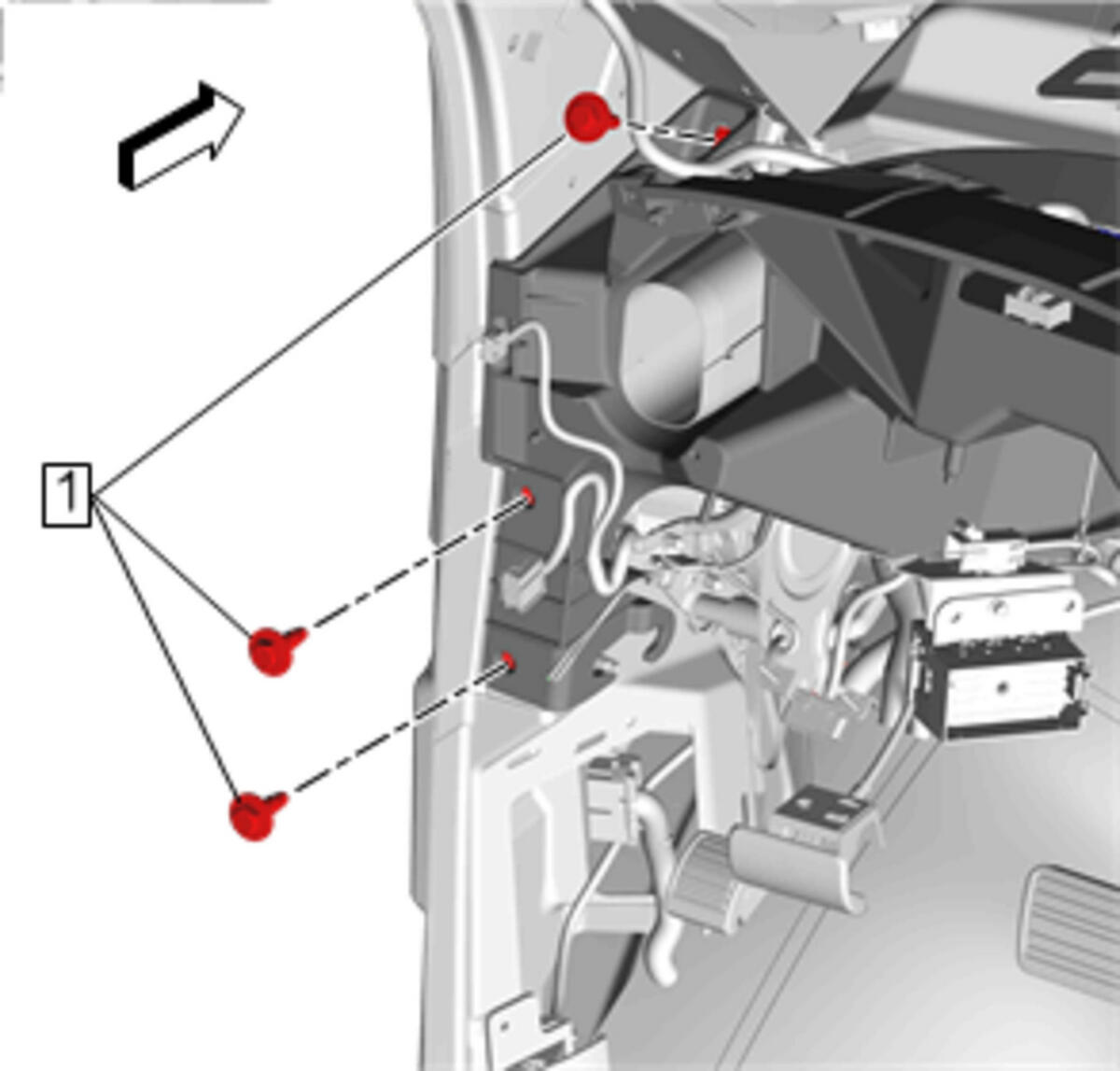

Instrument Carrier Bolt(1) - Install and tighten[3x]50N.m (37 lb ft)
Courtesy of GENERAL MOTORS COMPANY

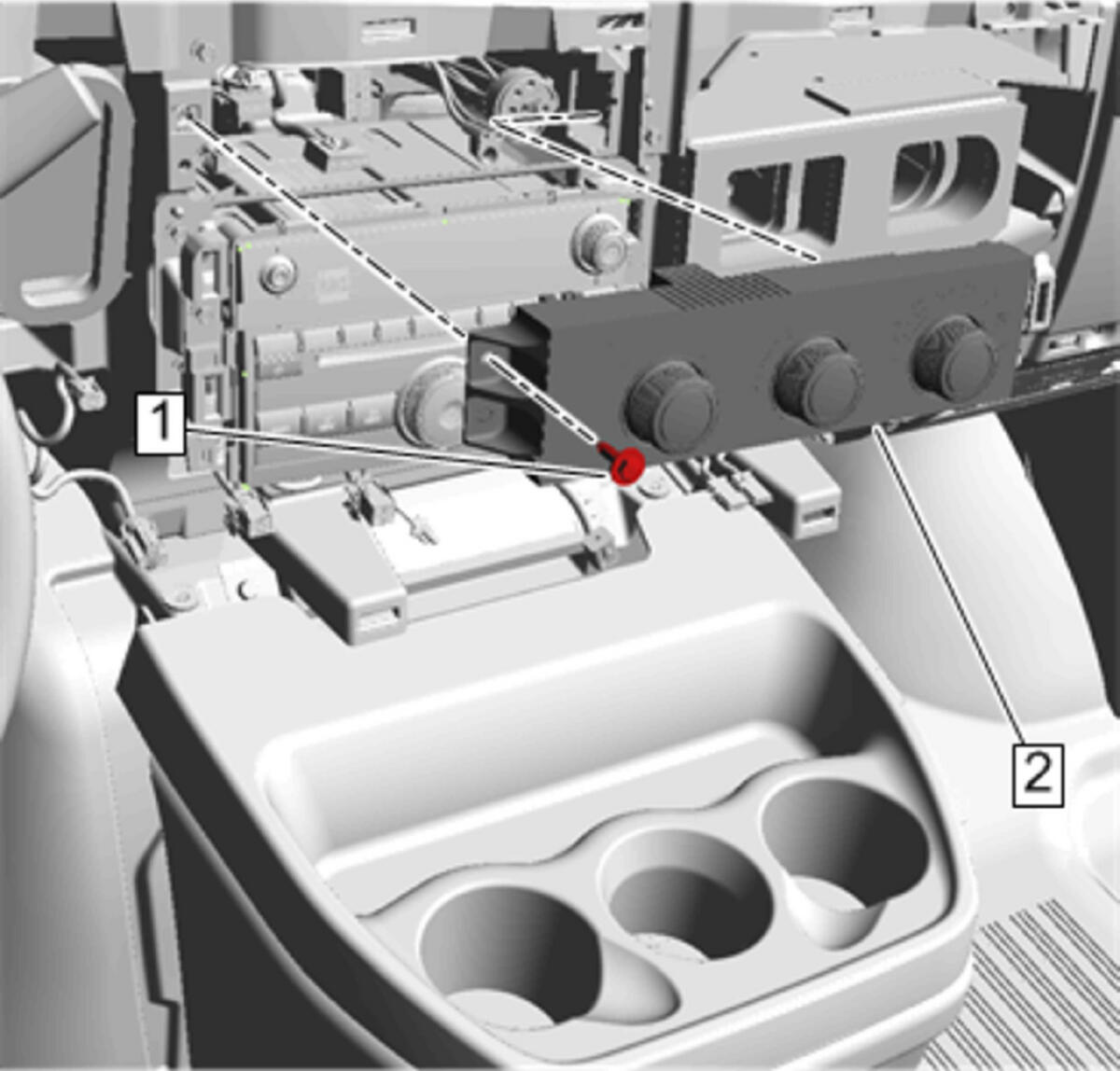

Heater and Air Conditioning Control(2) - Install - Heater and Air Conditioning Control Replacement
Courtesy of GENERAL MOTORS COMPANY

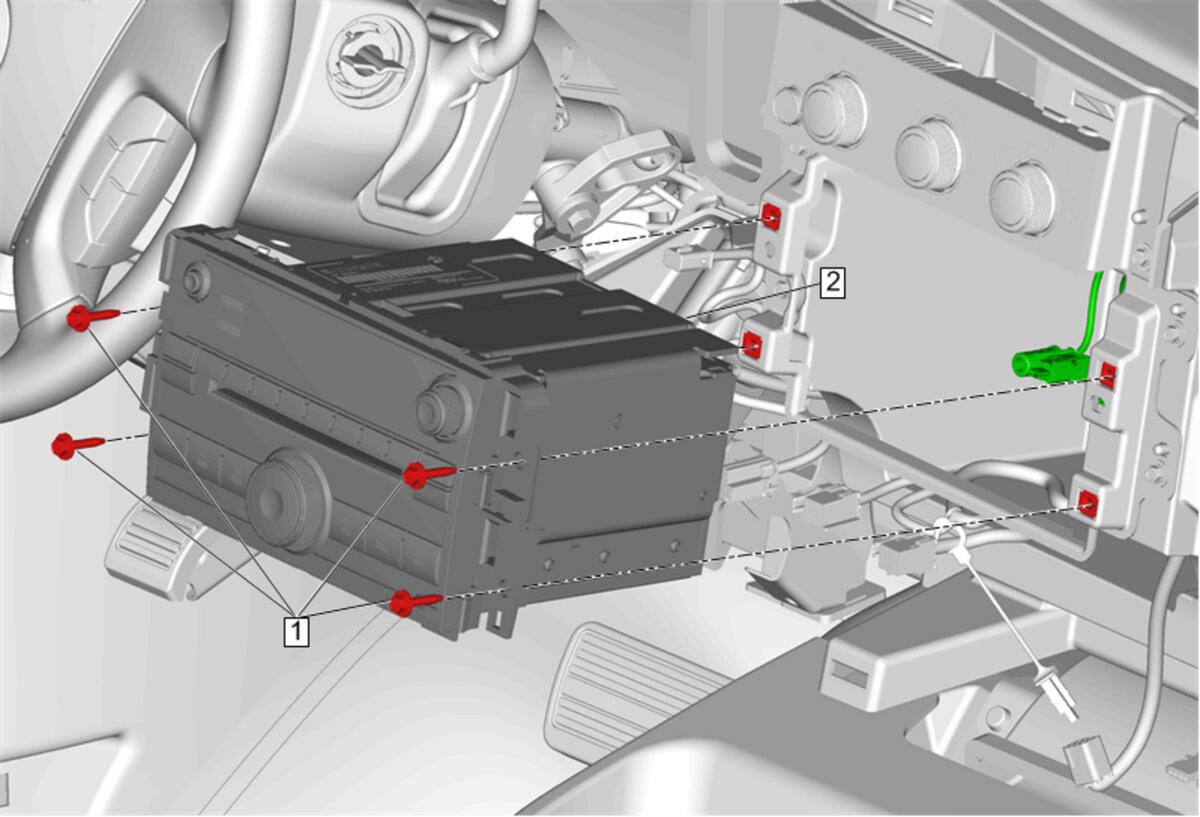

Radio(2) - Install - Radio Replacement
Courtesy of GENERAL MOTORS COMPANY

Engine Cover(1) - Install - Engine Cover Replacement
Install the airbag instrument panel module. Refer to INSTRUMENT PANEL AIRBAG SWITCH REPLACEMENT
Courtesy of GENERAL MOTORS COMPANY

Install the left and right body hinge pillar trim panel (1). Body Hinge Pillar Trim Panel Replacement
Steering Column - Install - Steering Column Replacement
Courtesy of GENERAL MOTORS COMPANY

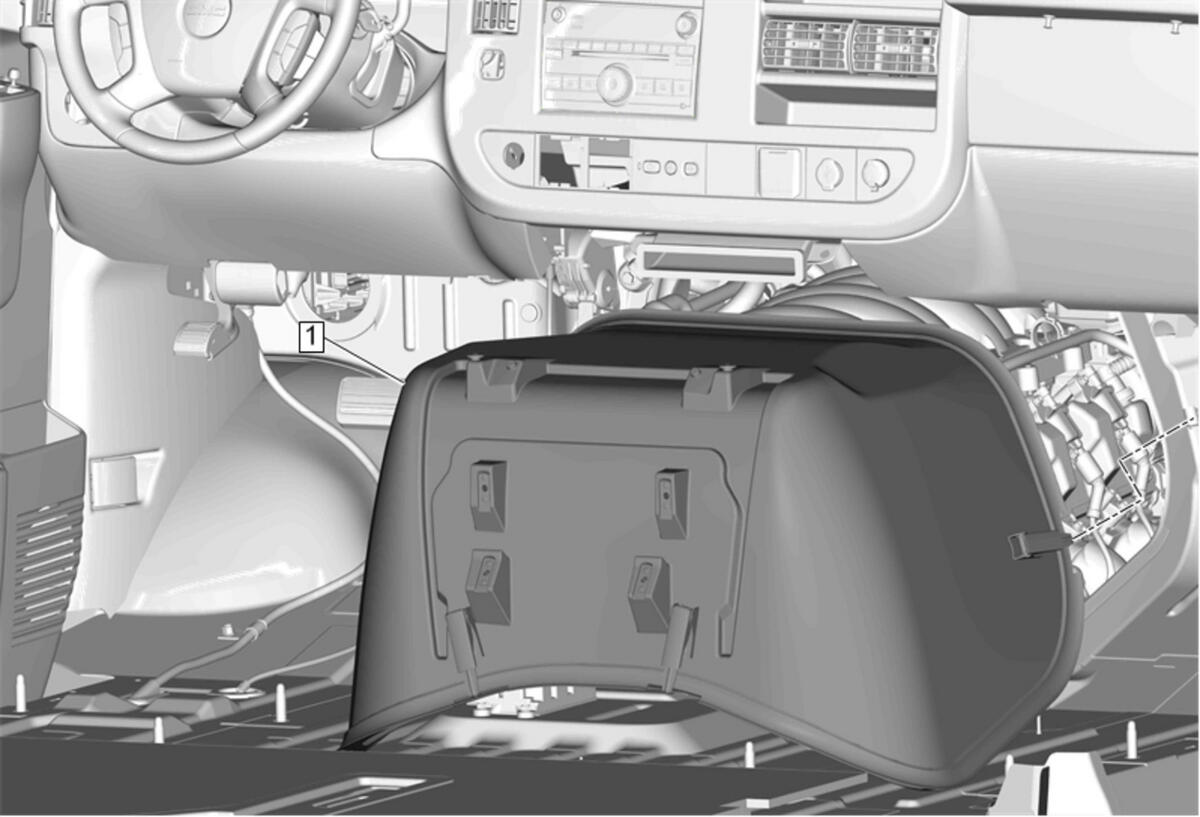

Instrument Panel Extension(1) - Install - Instrument Panel Extension Replacement
Courtesy of GENERAL MOTORS COMPANY

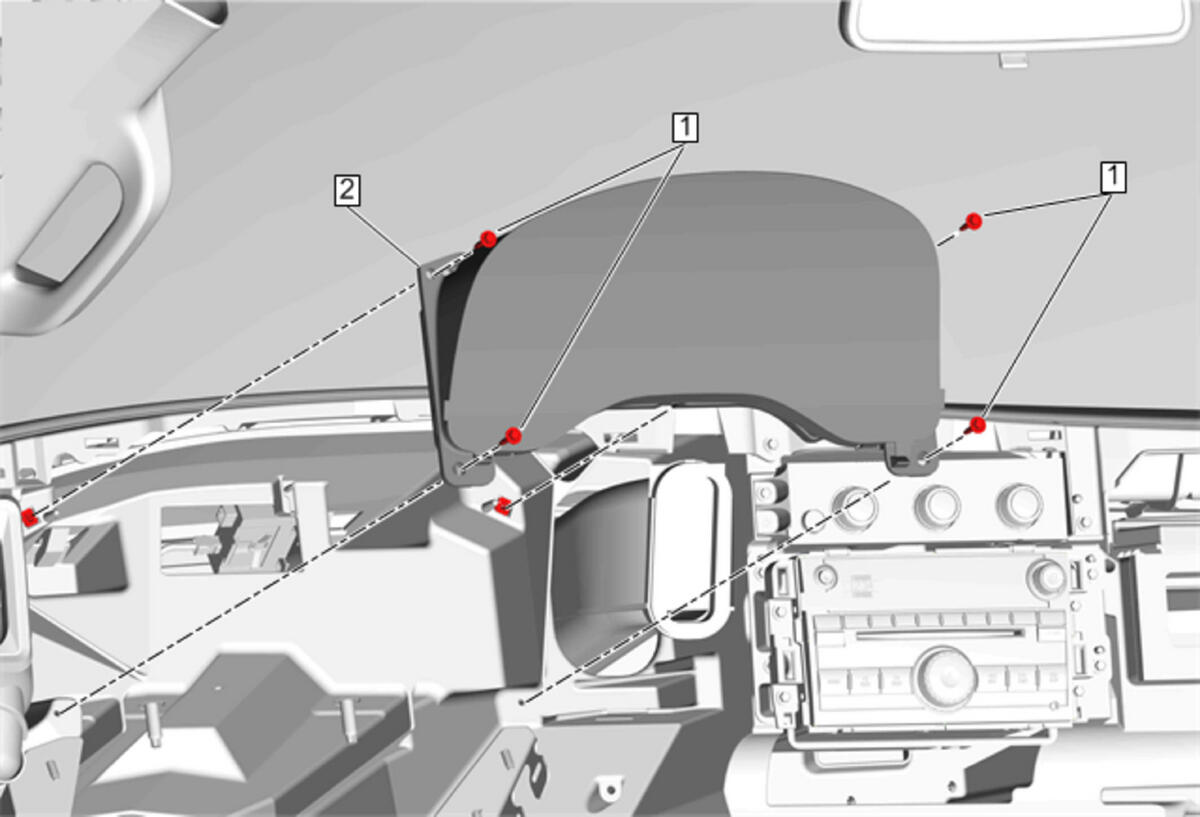

Instrument Cluster(2) - Install - Instrument Cluster Replacement
Enable the SIR System. SIR Disabling and Enabling
Connect the battery negative cable. Battery Negative Cable Disconnection and Connection (Single Battery)Battery Negative Cable Disconnection and Connection (Dual Battery)
Perform the necessary programming and setup procedure:Control Module References
