Instrument Panel Airbag Switch Replacement

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disable the SIR system. SIR Disabling and Enabling Instrument Panel Cluster Trim Plate Replacement

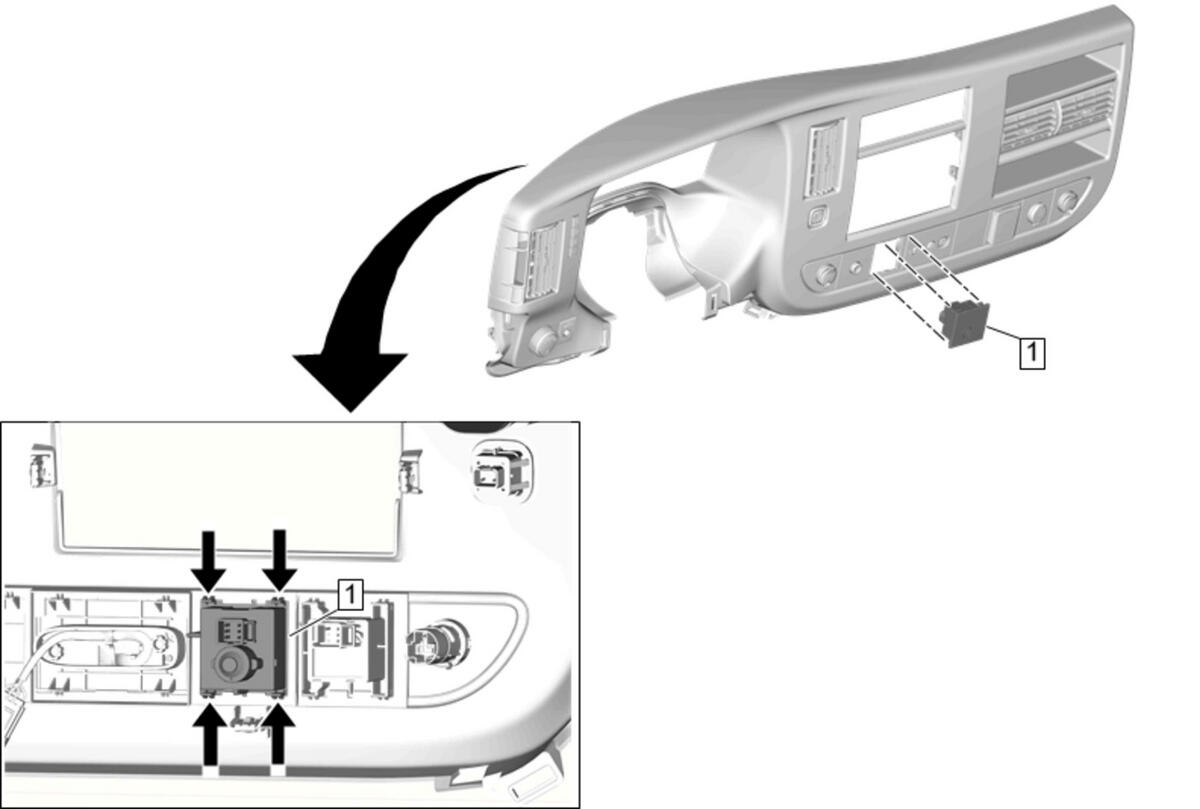

1	Instrument Panel Airbag Switch Procedure From the backside of the instrument panel cluster trim plate, use a plastic trim tool to gently push in on the tabs to release the switch. Enable the SIR System. SIR Disabling and Enabling

Callout

Component Name

Preliminary Procedures

Disable the SIR system. SIR Disabling and Enabling
Instrument Panel Cluster Trim Plate Replacement

Instrument Panel Airbag Switch

Procedure

From the backside of the instrument panel cluster trim plate, use a plastic trim tool to gently push in on the tabs to release the switch.
Enable the SIR System. SIR Disabling and Enabling
