Removal Procedure
- Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection
- Drain the coolant. Cooling System Draining and Filling (Static)
Underbody Rear Air Deflector (1) - Remove - Underbody Rear Air Deflector Replacement

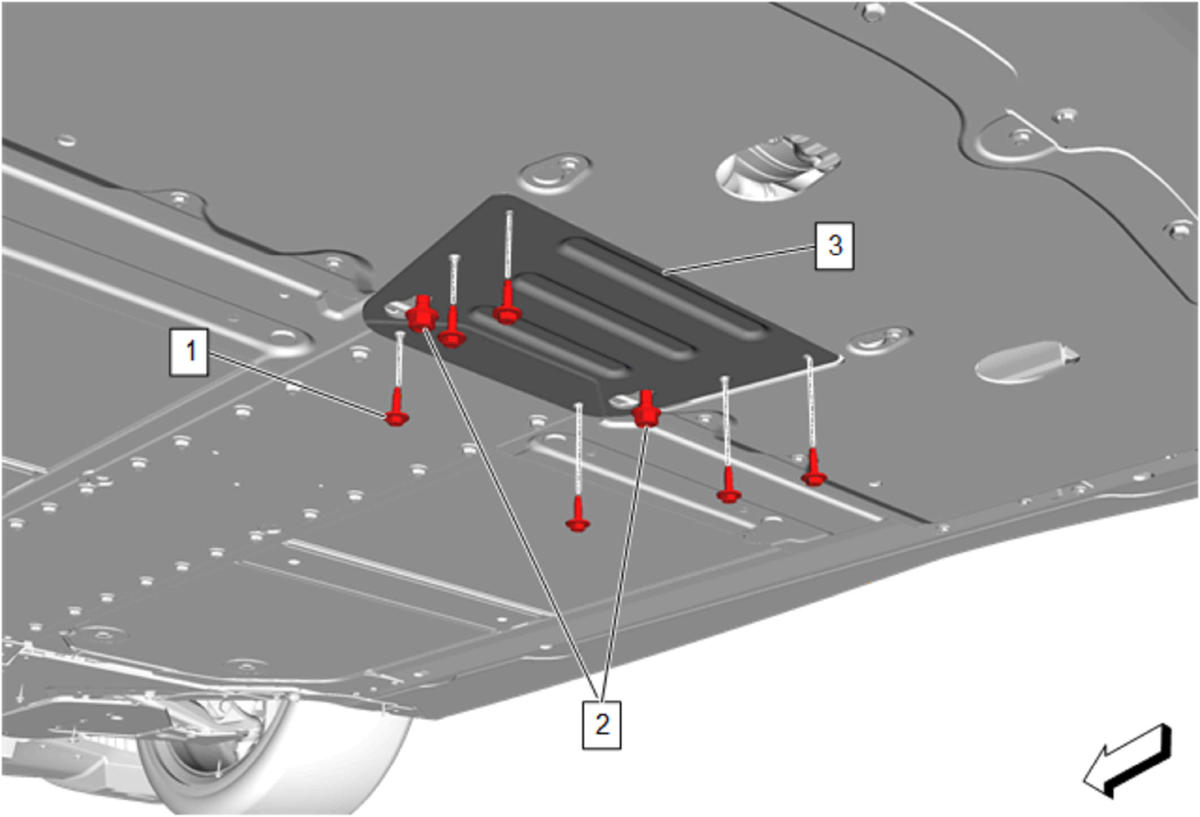

Floor Panel Tunnel Panel Reinforcement (3) - Remove - Floor Panel Tunnel Panel Reinforcement Replacement

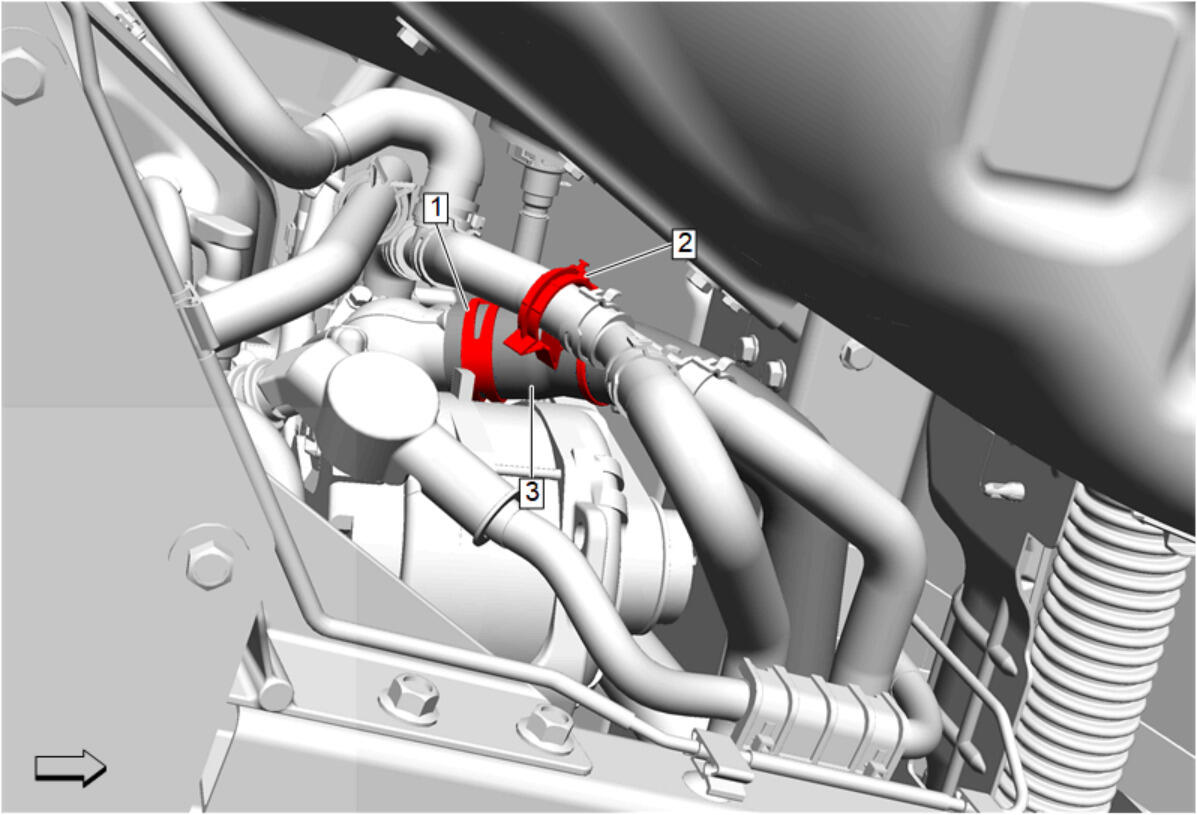

Radiator Outlet Hose (3) - Remove - Radiator Outlet Hose Replacement - A/C Tube to Water Pump Inlet
Radiator Outlet Pipe Bracket (1) - Remove - Radiator Outlet Pipe Bracket Replacement

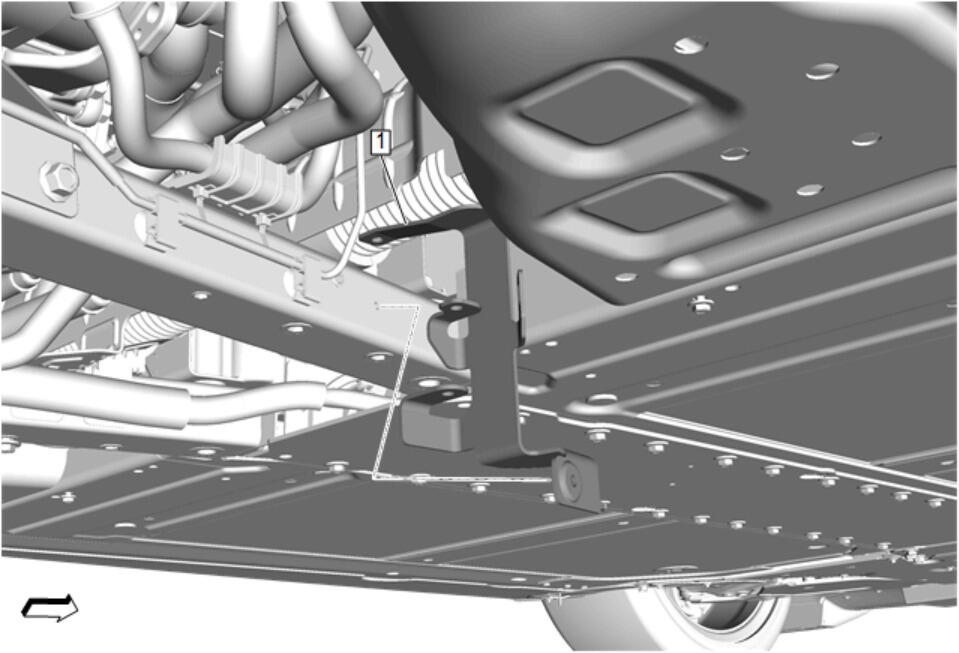

Retainer (2) - Release

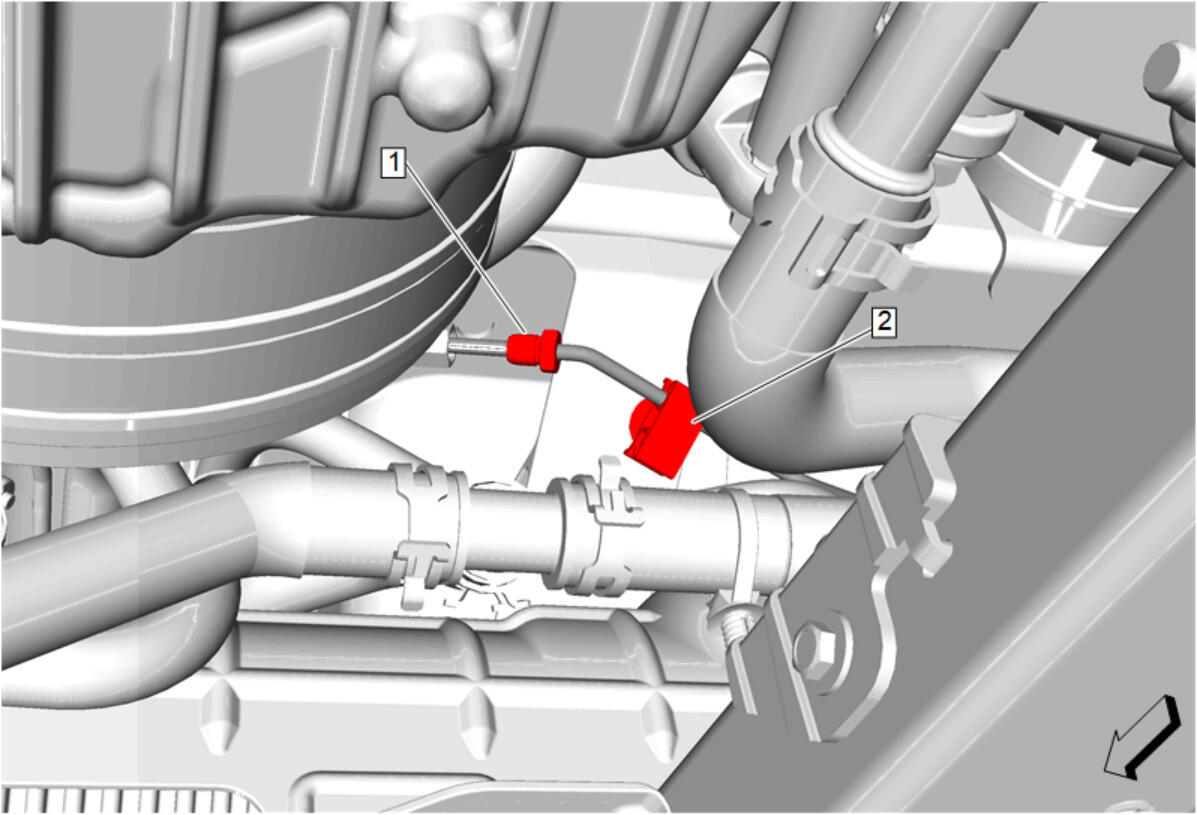

- Rear Brake Pipe Nut (1) - Remove
- Plug the brake pipe union inlet port to prevent brake fluid loss and contamination.
- Cap the rear brake pipe to prevent brake fluid loss and contamination.

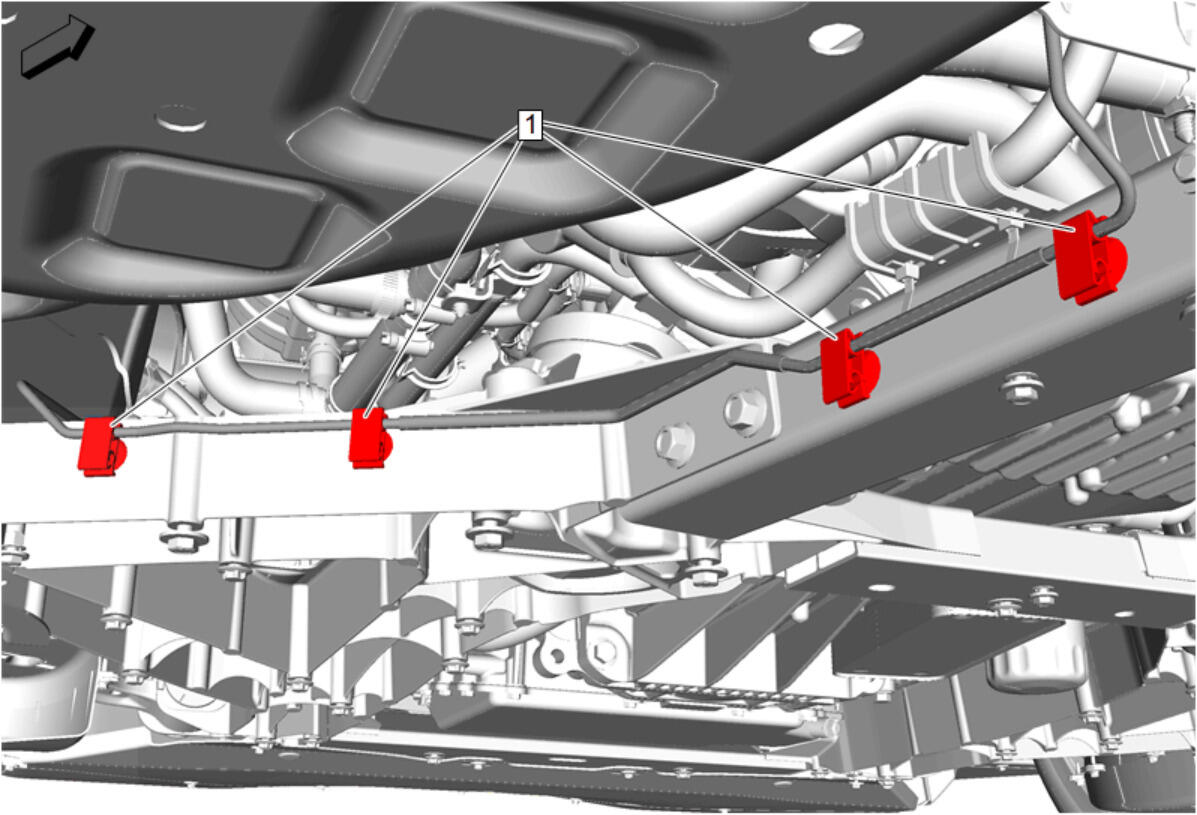

Retainer (1) - Release [4x]

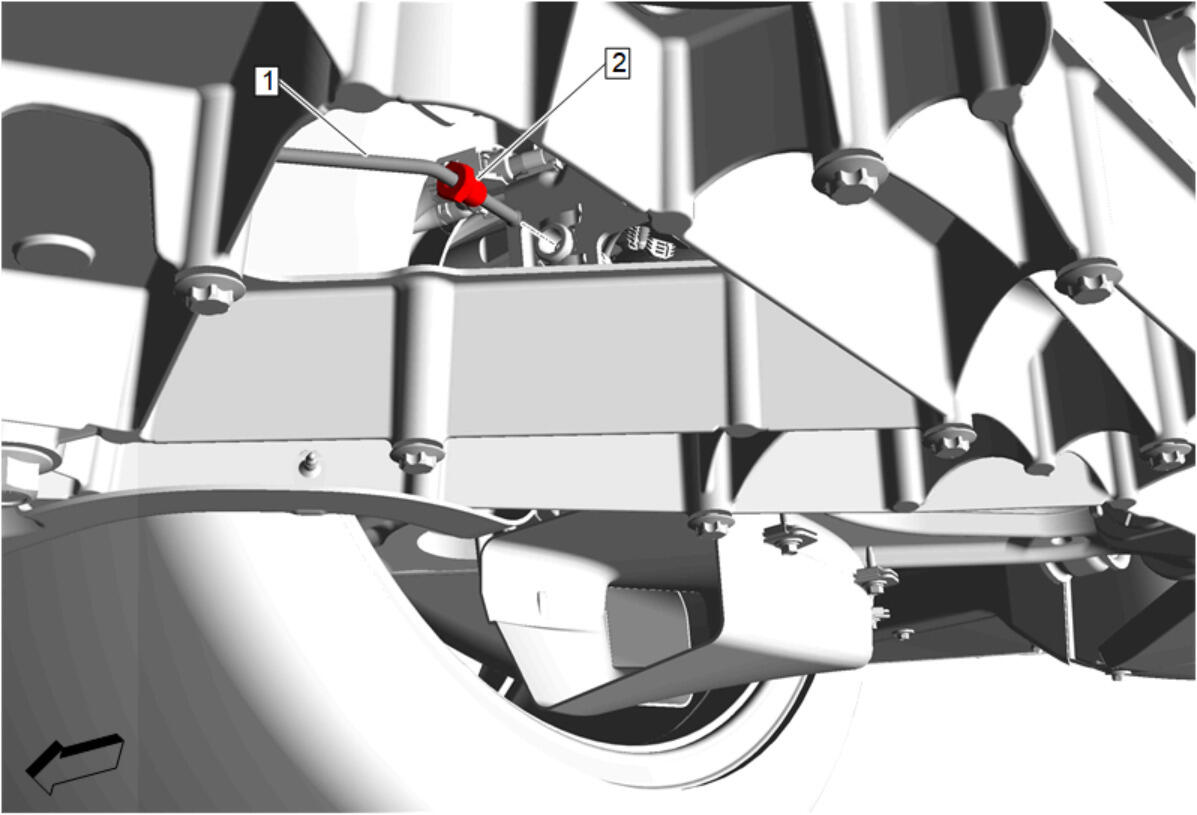

Rear Brake Pipe Nut (2) - Remove
- Plug the rear brake hose inlet port to prevent brake fluid loss and contamination.
- Cap the rear brake pipe to prevent brake fluid loss and contamination.
- Maneuver the rear brake pipe (1) out from under the vehicle.
