Removal Procedure

  1. GM5357081Courtesy of GENERAL MOTORS COMPANY

    Front Compartment Rear Access Cover (2) - Remove - Front Compartment Rear Access Cover Replacement

  2. Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection

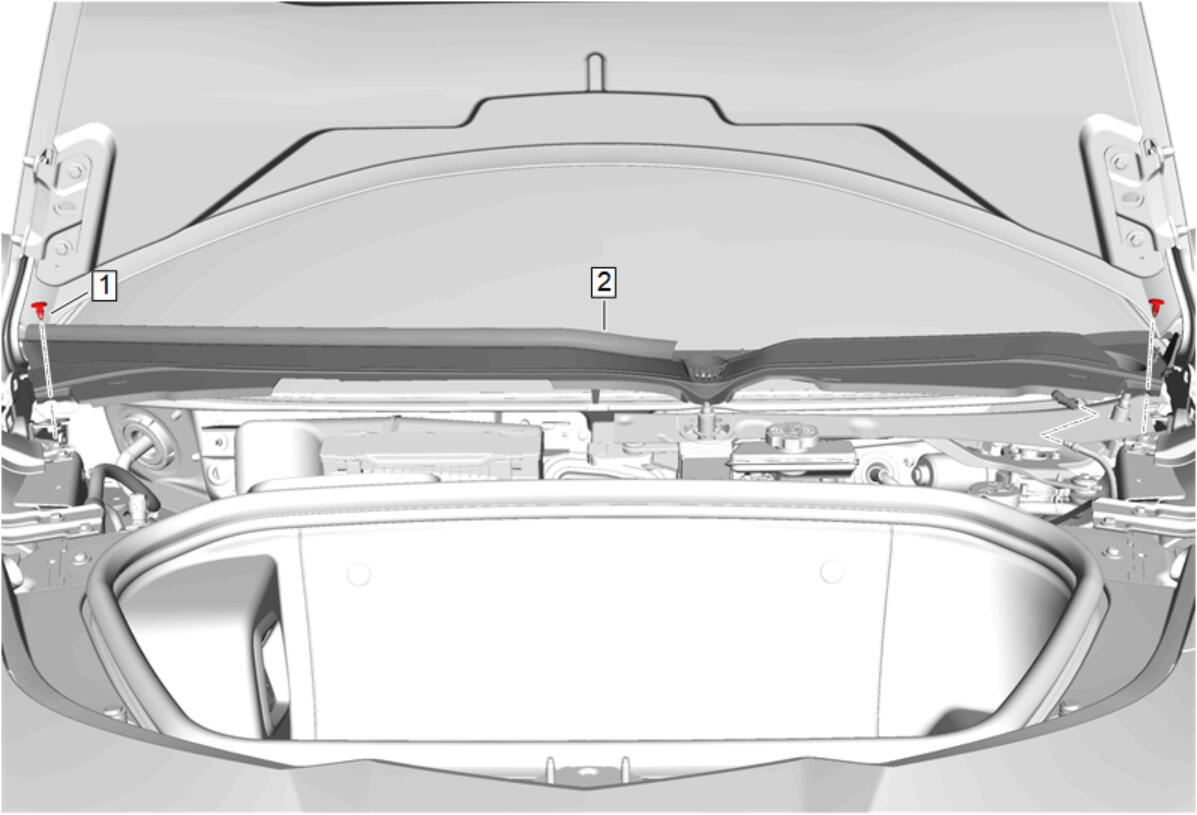

  3. GM5385053Courtesy of GENERAL MOTORS COMPANY

    Air Inlet Grille Panel (2) - Remove - Air Inlet Grille Panel Replacement

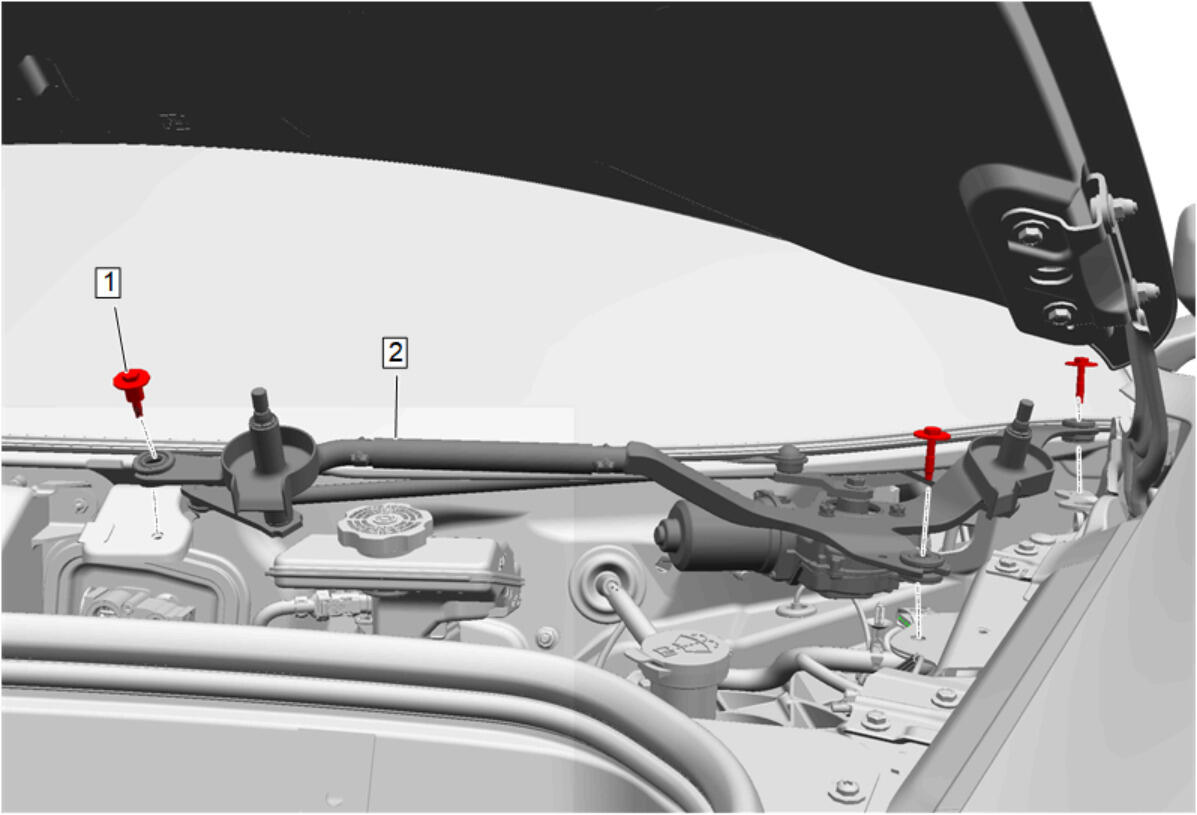

  4. GM5384887Courtesy of GENERAL MOTORS COMPANY

    Windshield Wiper Transmission (2) - Remove - Windshield Wiper Transmission Replacement

  5. Electrical Connector @ Brake Fluid Level Sensor - Disconnect
  6. Remove and properly dispose of the brake fluid in the master cylinder reservoir.

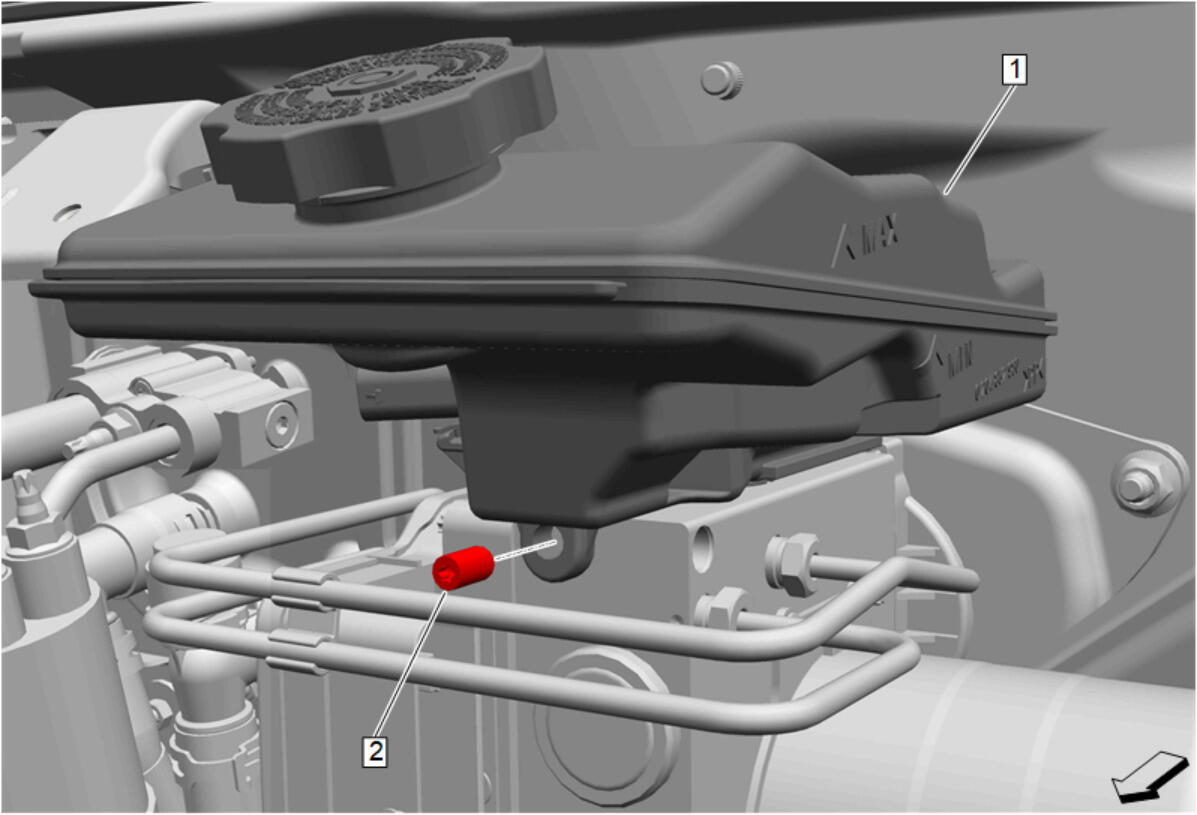

  7. GM5394670Courtesy of GENERAL MOTORS COMPANY

    Brake Master Cylinder Reservoir Bolt (2) - Remove

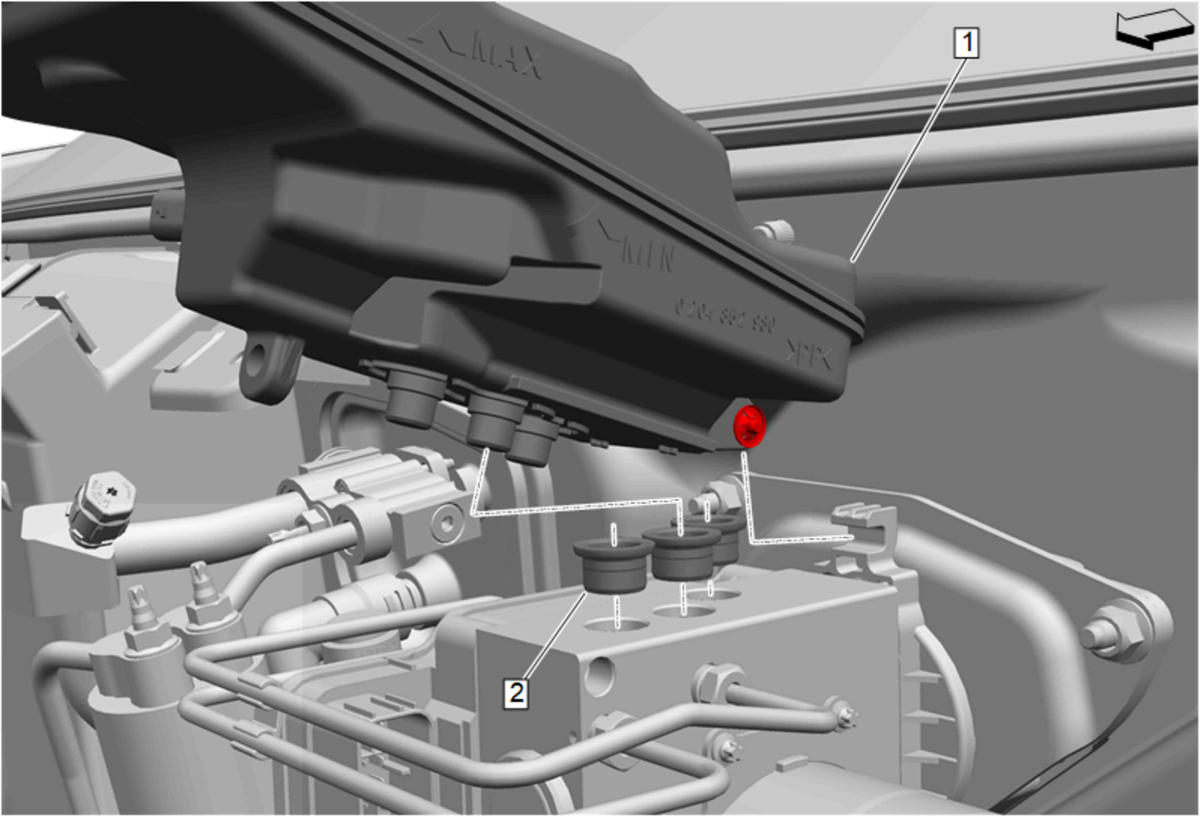

  8. GM5394671Courtesy of GENERAL MOTORS COMPANY

    Brake Master Cylinder Reservoir (1) - Remove

  9. Brake Master Cylinder Reservoir Seal (2) - Remove and DISCARD [3x]
  10. Transfer components as necessary.
