Transmission Fluid Level Inspection (M13 Without Y4Q)

WARNING: This page is about a different variant/trim than selected.

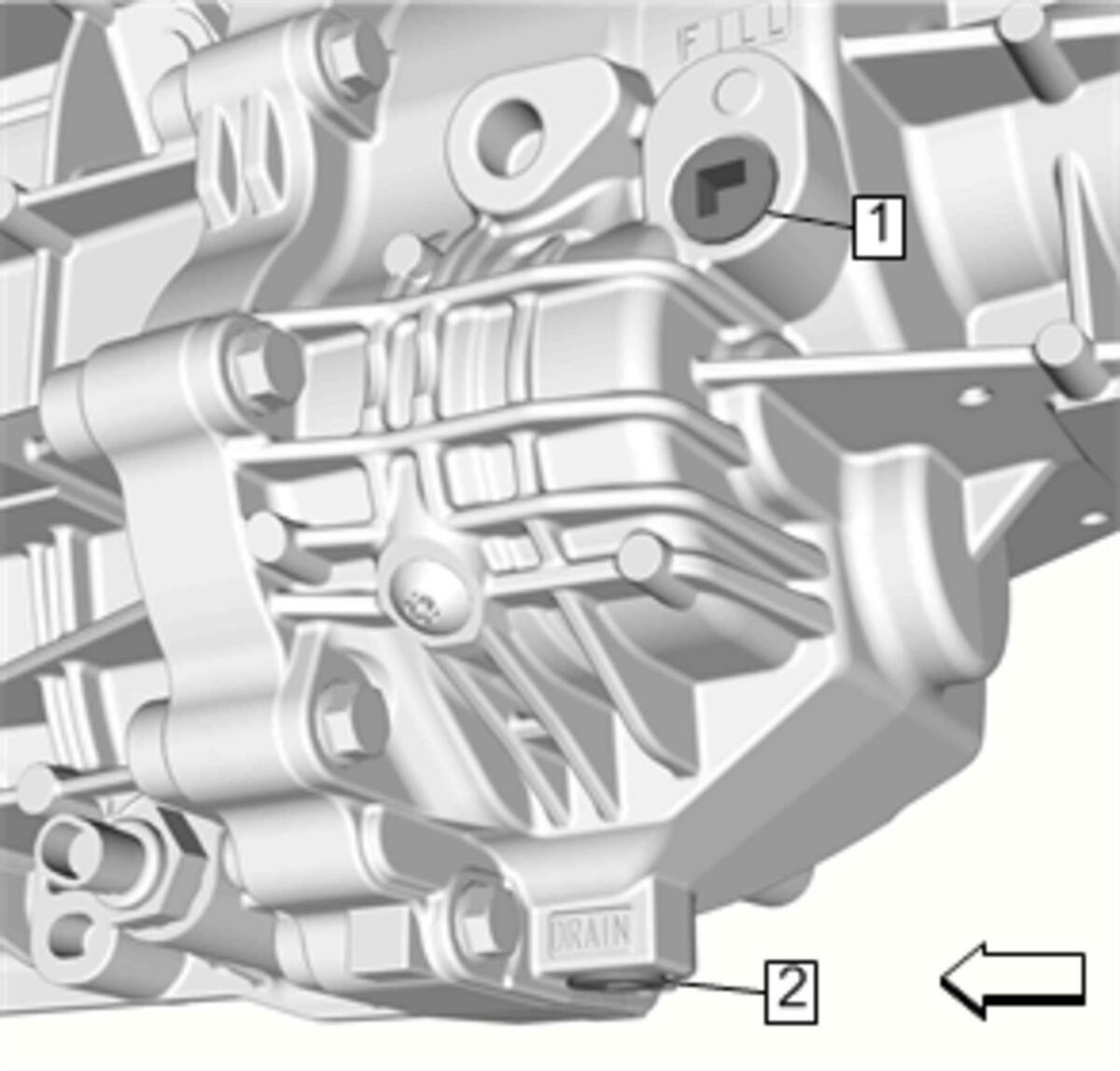

Fig 1: Identifying Transmission Fluid Fill And Drain Plugs (M13)
Courtesy of GENERAL MOTORS COMPANY

Raise and suitably support the vehicle. Lifting and Jacking the Vehicle (Base) , or Lifting and Jacking the Vehicle (Convertible) .
Clean any dirt from around the fill plug (1).
Remove the transmission fill plug from the transmission.
Courtesy of GENERAL MOTORS COMPANY

Check that the transmission fluid level is even with the bottom of the fill plug hole.
Add fluid, if necessary. Adhesives, Fluids, Lubricants, and Sealers (M13)
Fig 2: Identifying Transmission Fluid Fill And Drain Plugs (M13)
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

Install the transmission fill plug (1) to the transmission and tighten the fill plug to 27 N.m (20 lb ft).
Lower the vehicle.
