5th/6th Speed Driven Gear Removal

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

Remove the locking ring (1) and the two piece thrust washer (2).

NOTE:

Ensure the remover tools are aligned level to pull the gear evenly off the shaft.

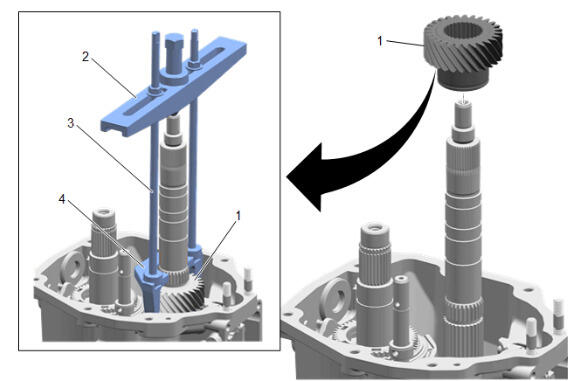

Using the GE-8433 two jaw puller (3), DT-39431-A 5th/6th driven gear puller (5), and the DT-39431-3 fifth gear puller adapter bolts (4), remove the 5th/6th speed driven gear.
Courtesy of GENERAL MOTORS COMPANY

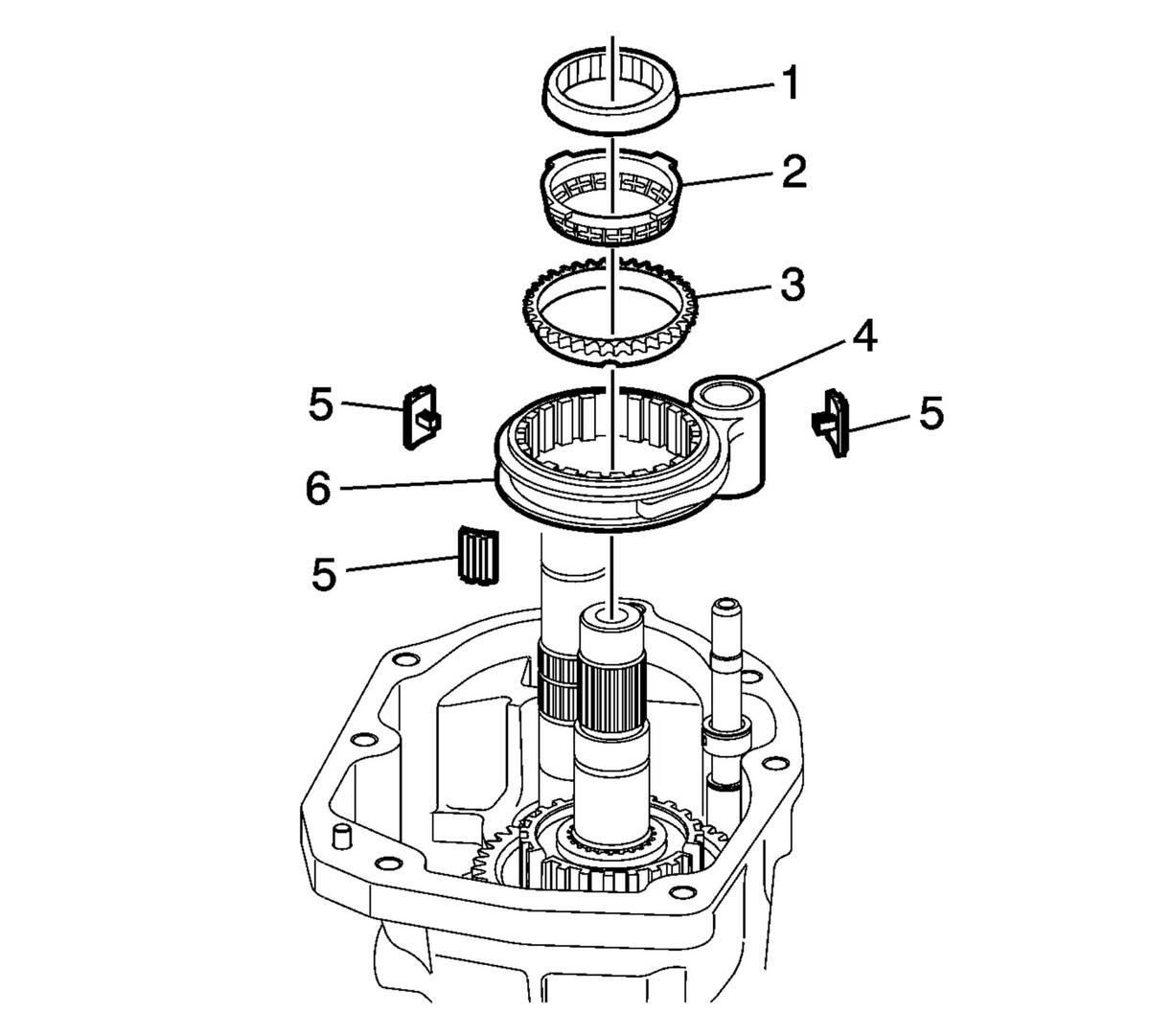

Remove the following 5th/6th synchronizer components:
1. The speed drive gear inner cone (1)
2. The speed drive gear friction cone (2)
3. The speed drive gear synchronizer blocking ring (3)
4. The 5th/6th shift fork (4) with the synchronizer sleeve (6)
5. The synchronizer inserts (5)
Courtesy of GENERAL MOTORS COMPANY

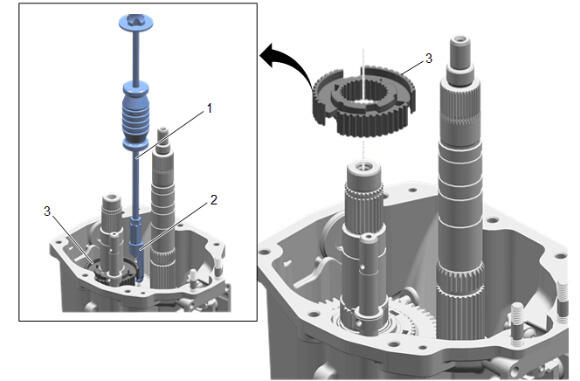

Using the DT-49139 hub remover (2) and GE-6125-1B slide hammer with adapter (1), remove the synchronizer hub assembly.
Courtesy of GENERAL MOTORS COMPANY

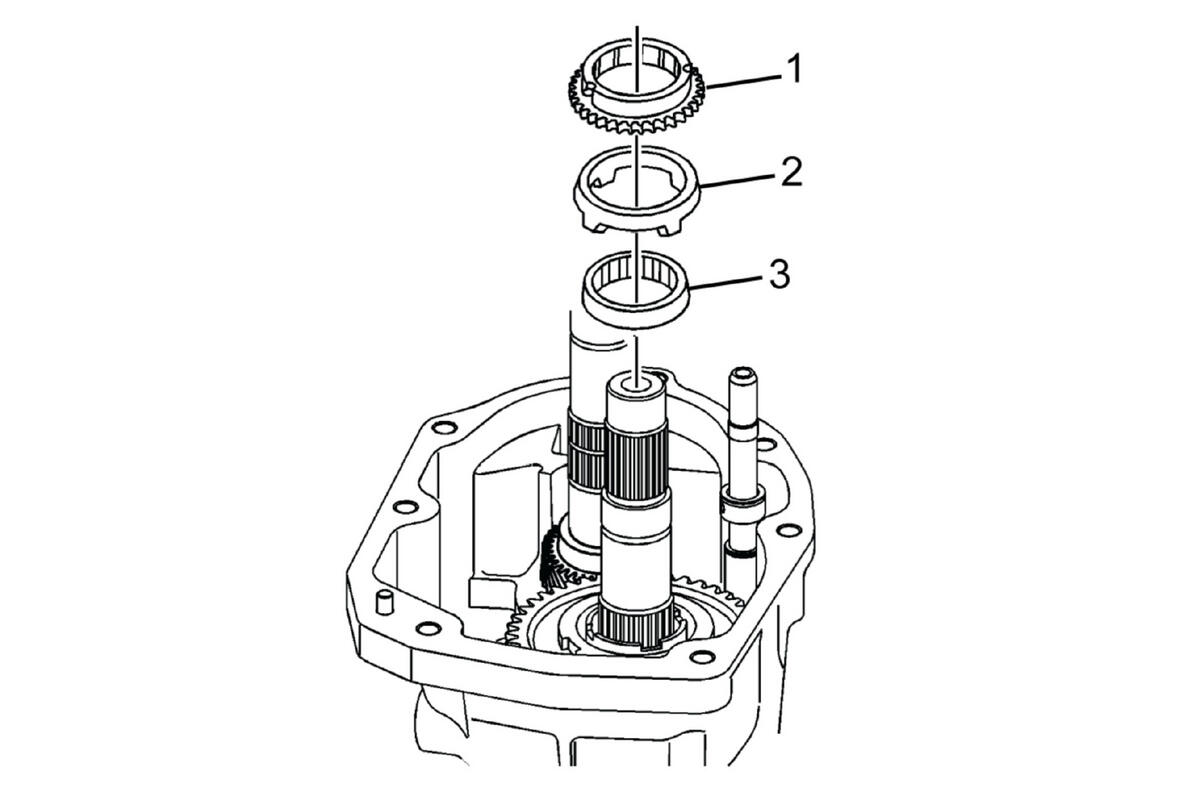

Remove the following components:
1. The 6th speed drive gear synchronizer blocking ring
2. The 6th speed drive gear friction cone
3. The 6th speed drive gear inner cone
Courtesy of GENERAL MOTORS COMPANY

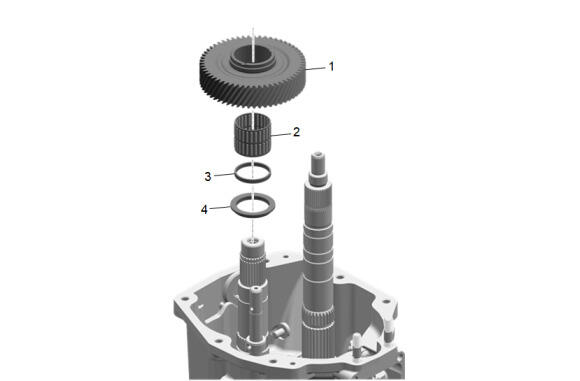

Remove the 6th driven gear, caged needle bearing, and 2 spacers from the countershaft.
