Transmission Case Installation

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

Install the gasket (4).

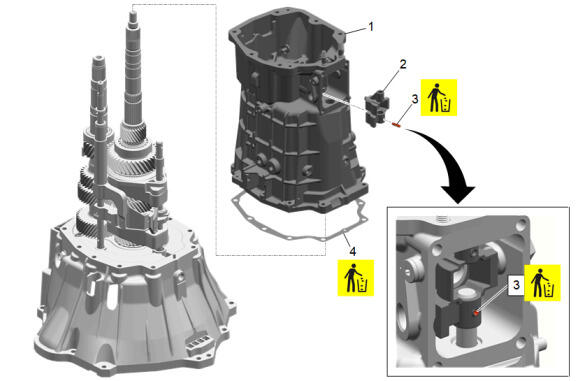

Do the following in order to install the transmission case and the select control lever assembly:
1. Shift the transmission into NEUTRAL in order to keep the 3rd/4th shift shaft from engaging.
2. Install the select control lever assembly (2), through the transmission case opening, while sliding the transmission case (1) onto the gear clusters and the shift rail components.
3. Install the select control lever assembly pin (3).
Courtesy of GENERAL MOTORS COMPANY

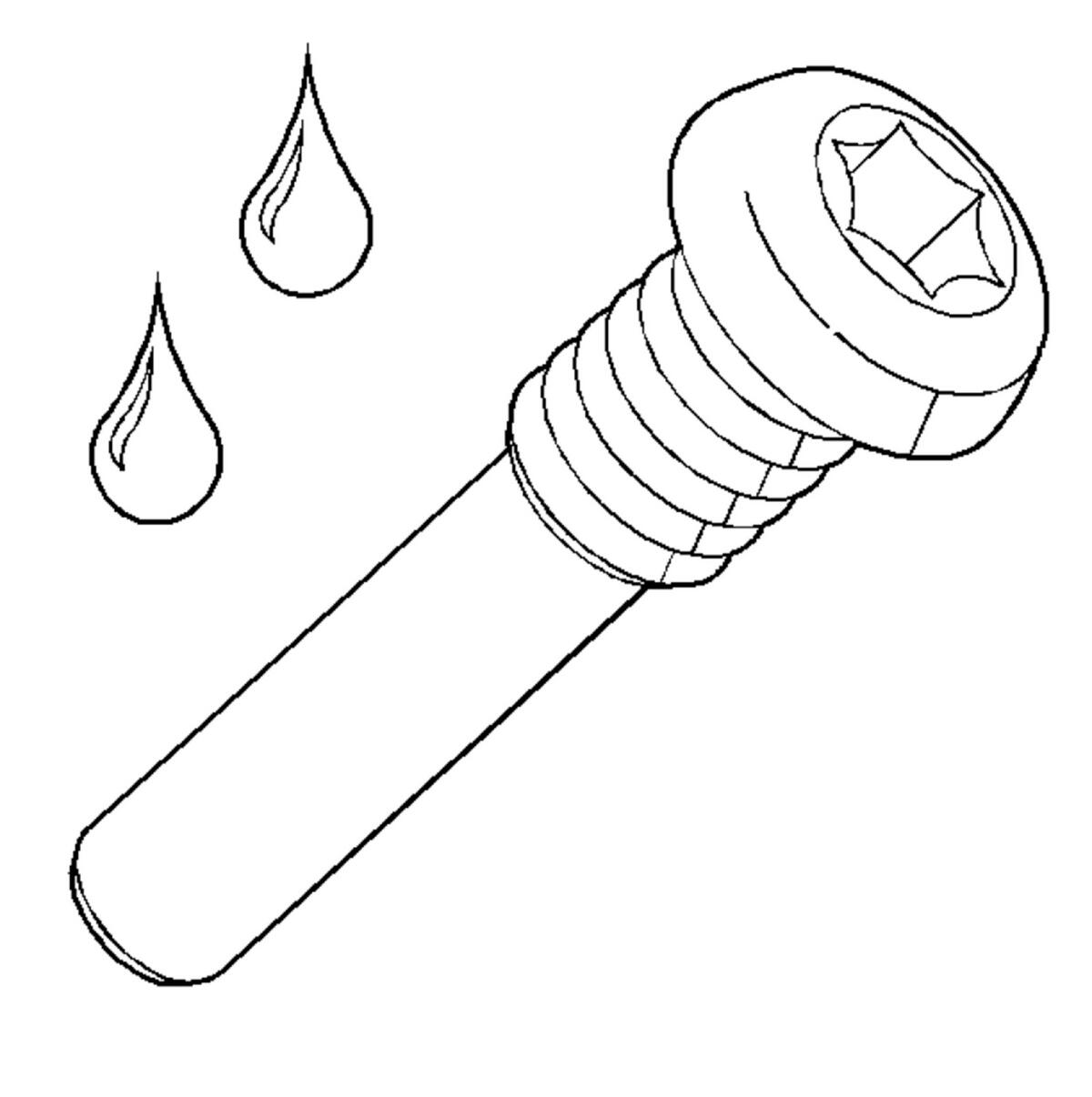

Apply threadlocker to the threads of the shift lever guide bolts. Adhesives, Fluids, Lubricants, and Sealers (MJK, MH3, or MM6)
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

NOTE:
In order to align the shift interlock plate slot with the shift lever guide bolt holes, pull up on the 5th/6th and reverse shift rail assembly while installing the shift lever guide bolts.

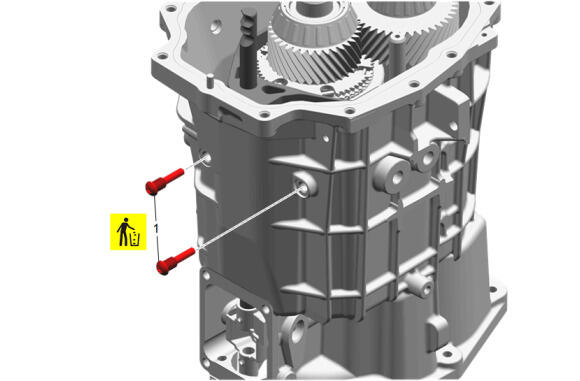

Install the shift lever guide bolts (1) while pulling up on 5th/6th and reverse shift rail assembly. Tighten the bolts to 27 N.m (20 lb ft).
Courtesy of GENERAL MOTORS COMPANY

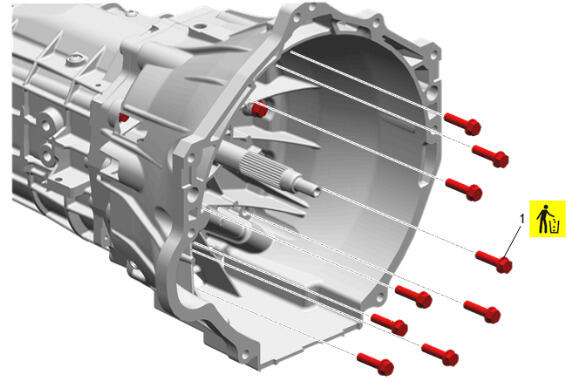

Install the clutch housing to transmission case bolts (1) and tighten to 48 N.m (36 lb ft).
Install the clutch concentric actuator cylinder. Clutch Concentric Actuator Cylinder Replacement
Courtesy of GENERAL MOTORS COMPANY

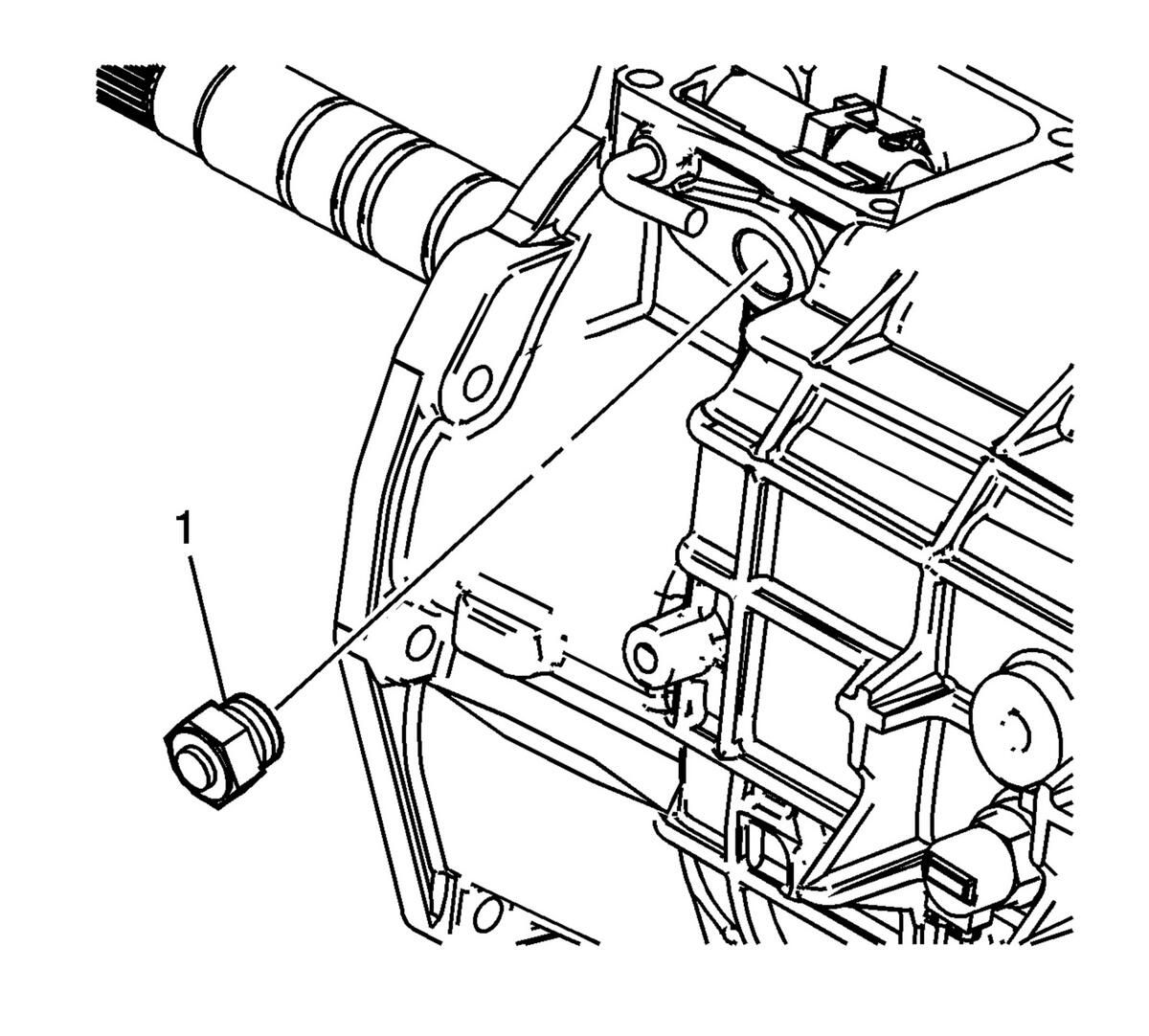

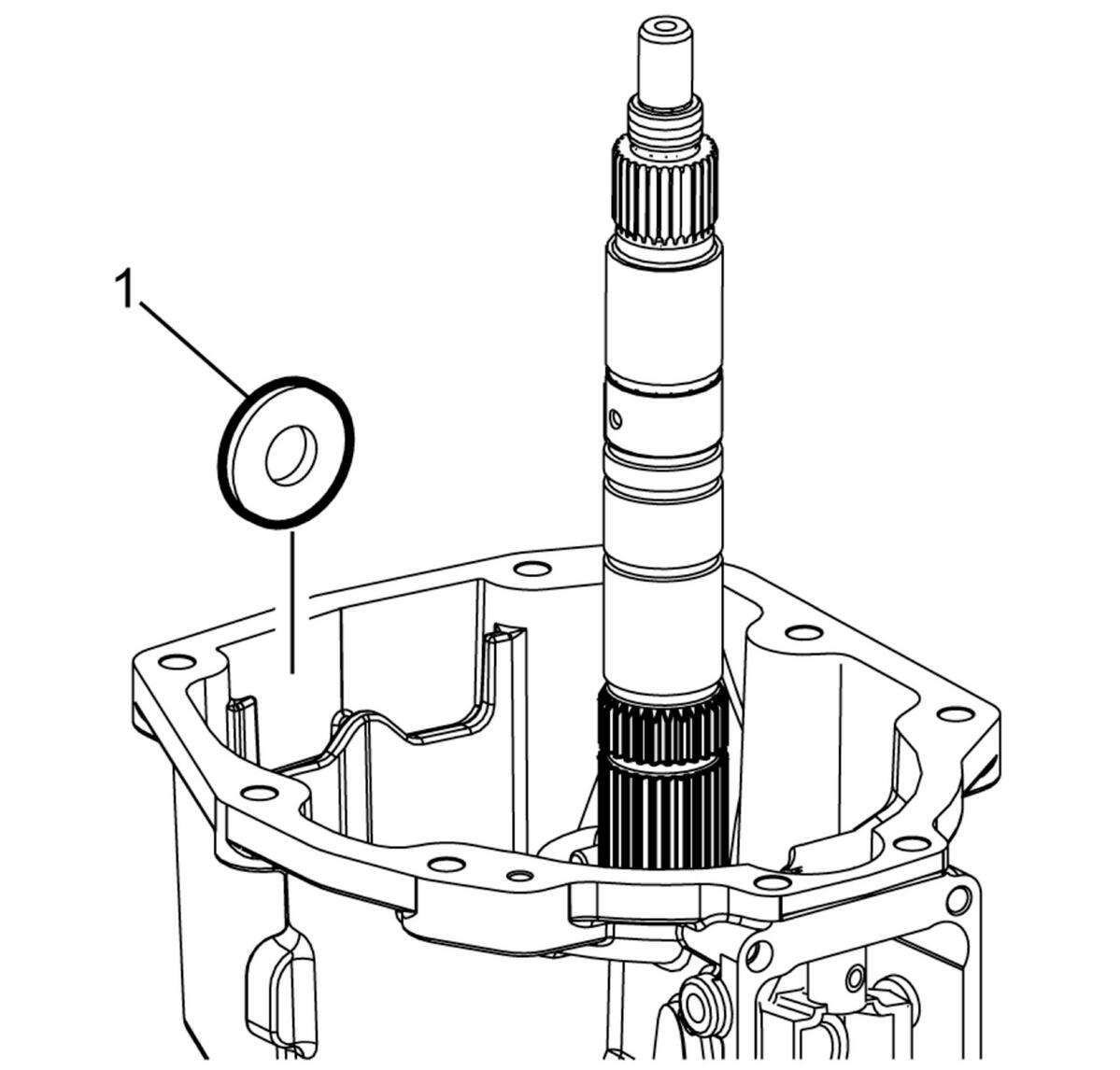

Apply adhesive to the magnet, then install the magnet (1) into the transmission case. Adhesives, Fluids, Lubricants, and Sealers (MJK, MH3, or MM6)
Courtesy of GENERAL MOTORS COMPANY

Install the shift detent assembly (1) and tighten to 40 N.m (30 lb ft).
Courtesy of GENERAL MOTORS COMPANY

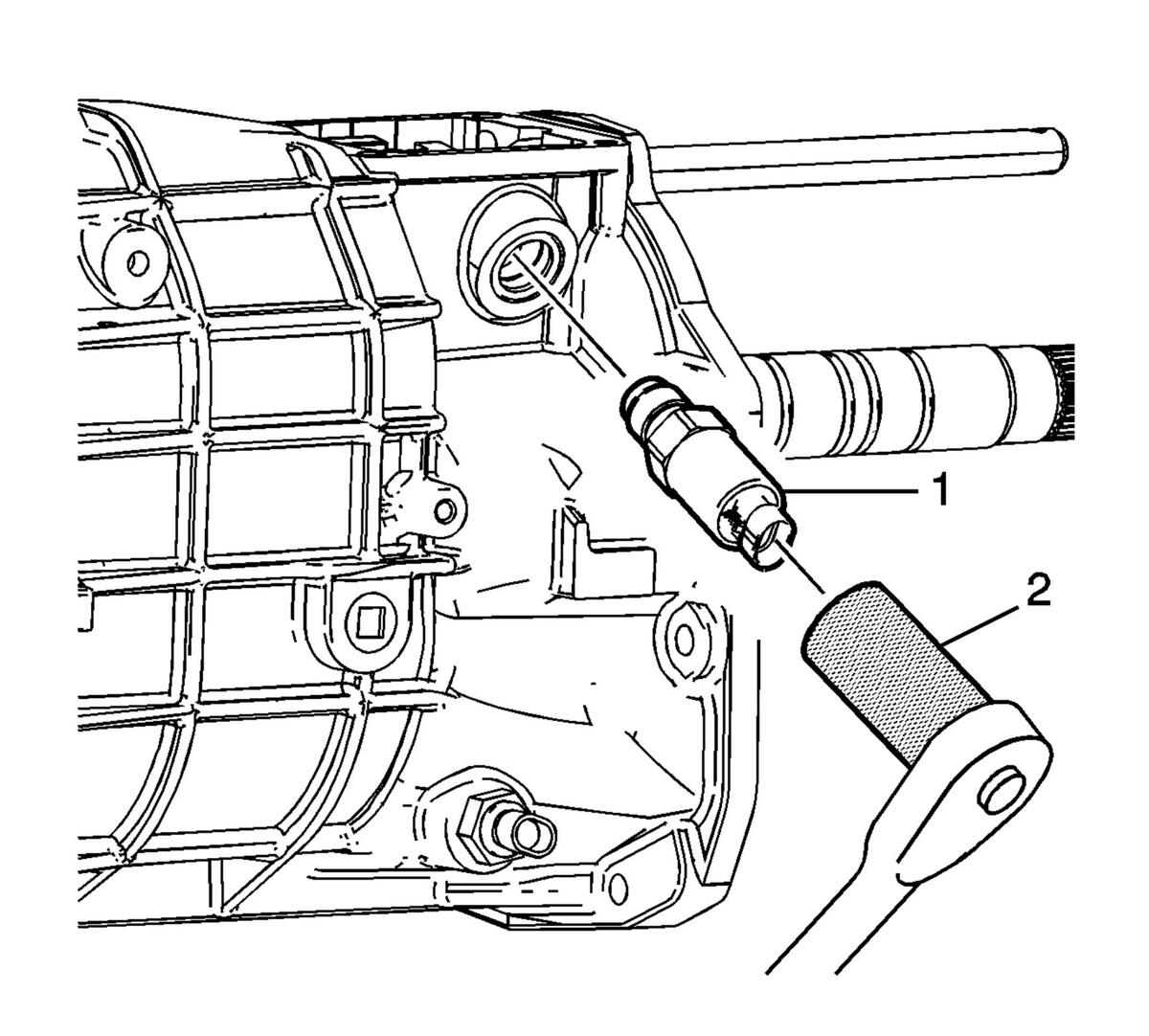

Using DT-49293 gear select/skip shift solenoid remover/installer (2), install the gear select/skip shift solenoid (1) and tighten to 40 N.m (30 lb ft).
