Reverse Shift Fork Installation
WARNING: This page is about a different variant/trim than selected.

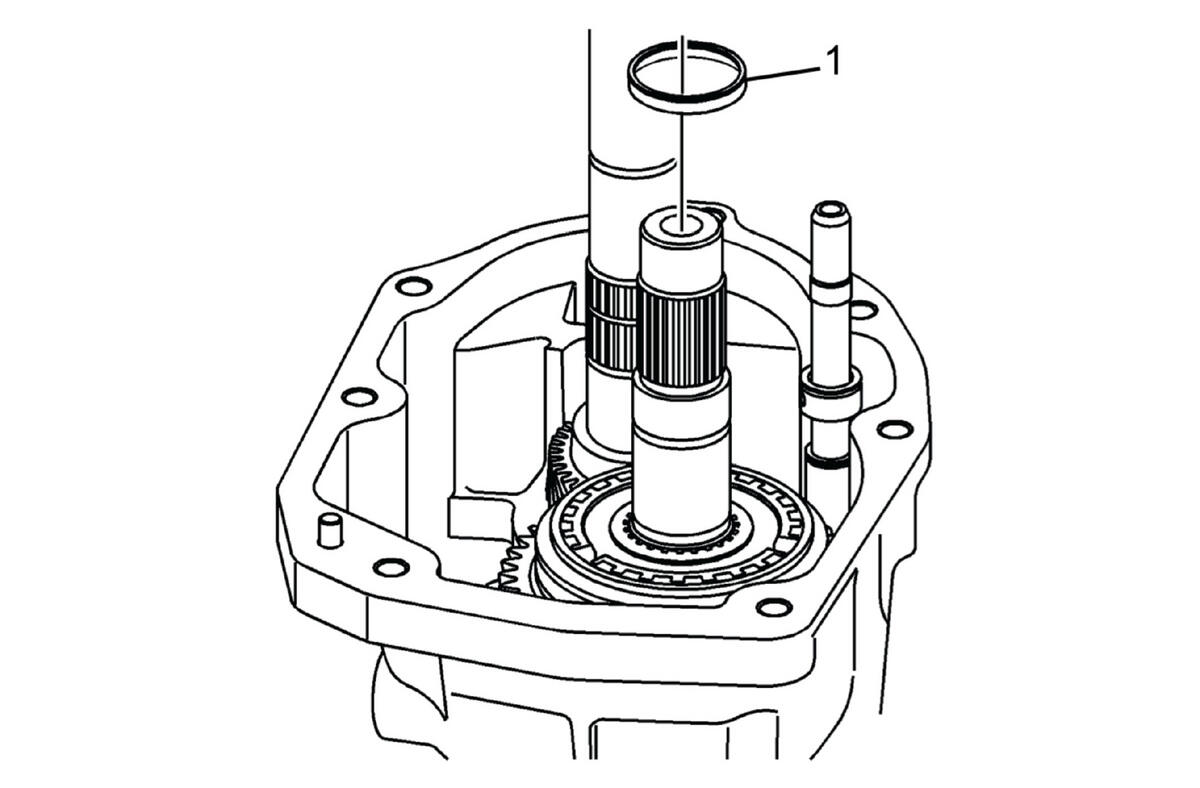

Install the spacer to the countershaft.

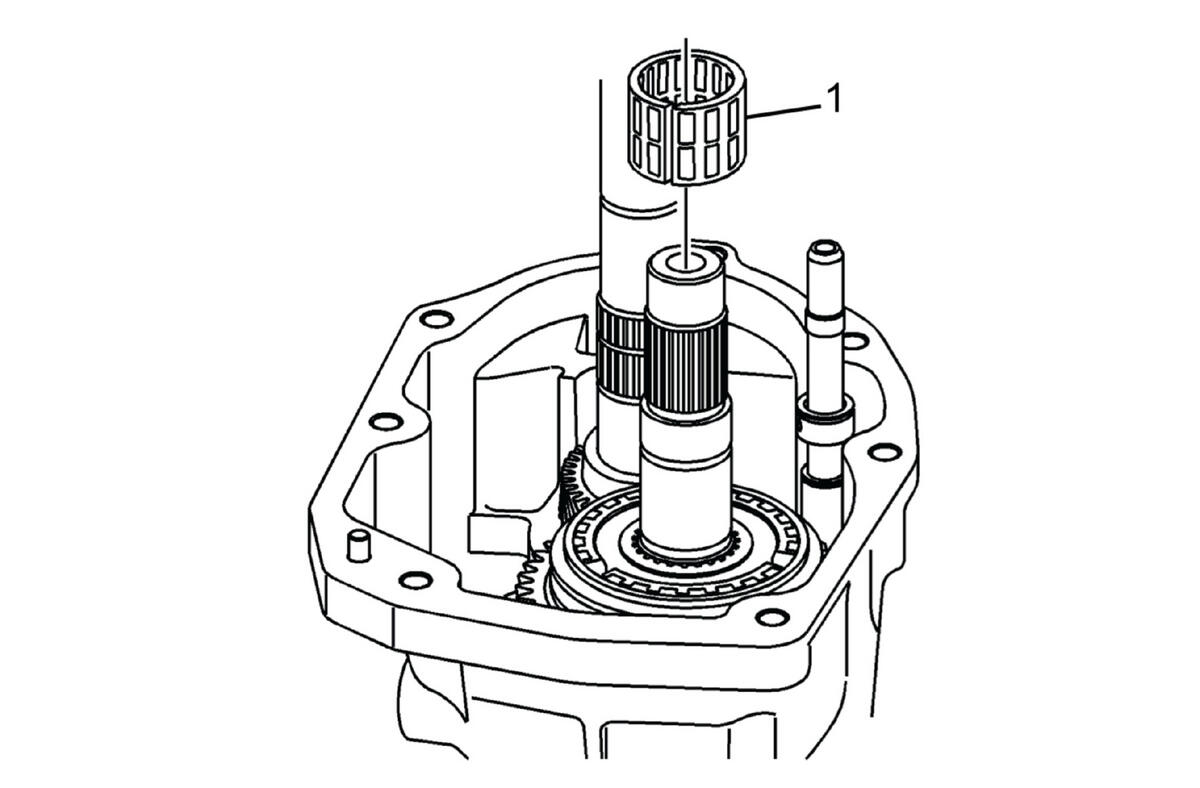

Install the needle bearing to the countershaft.
- NOTE:
Align the gear with the raised tabs on the synchronizer to ensure the gear sets flush.

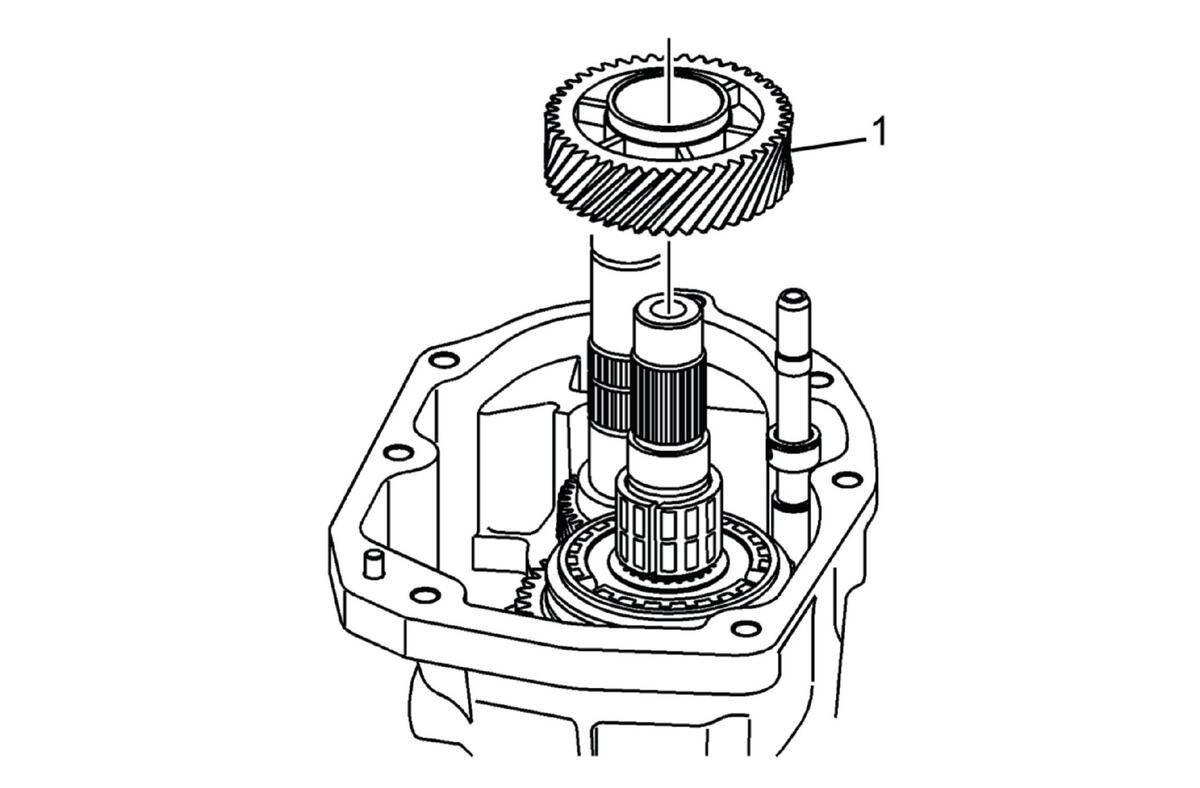

Install the gear to the countershaft.
Install the countershaft retainer and spacer.

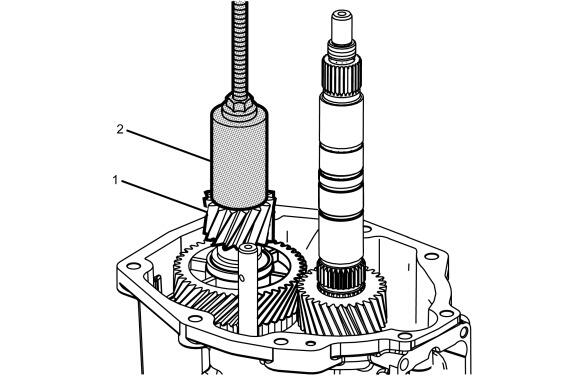

Install the countershaft gear (1) using DT-39441-30 5th gear installer adapter.

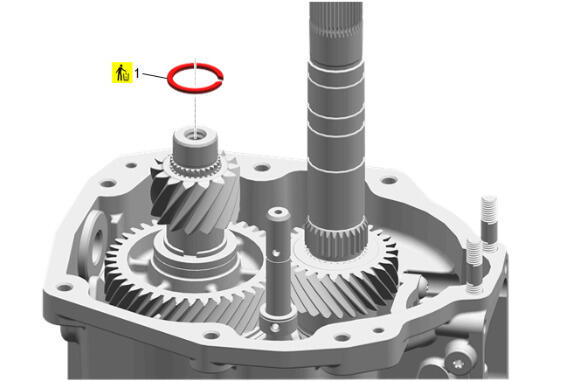

Install the countershaft retainer ring.

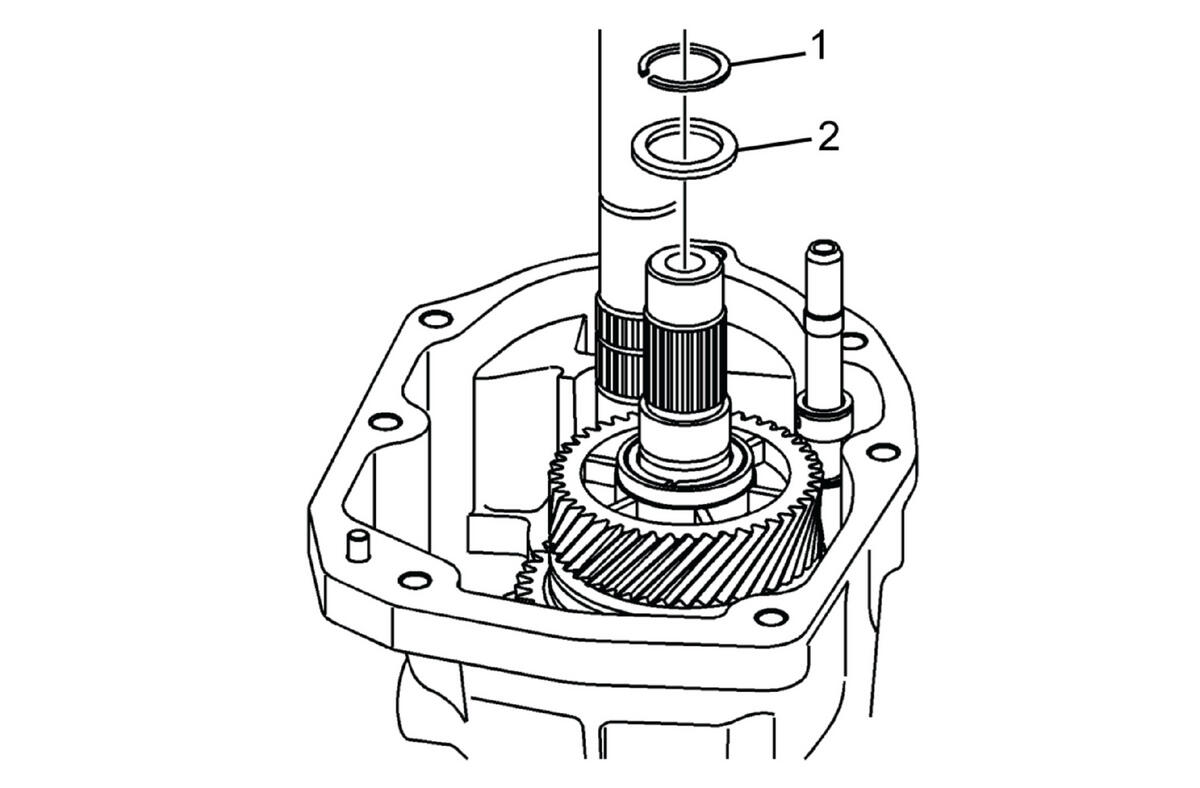

Install the two piece thrust washer (3).
- Install the locking ring (2).

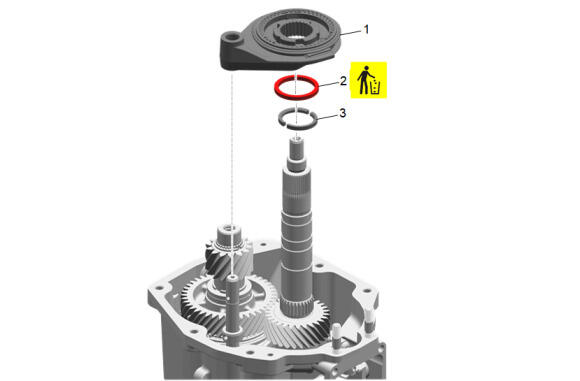

- Install the reverse shift fork and the synchronizer (1).

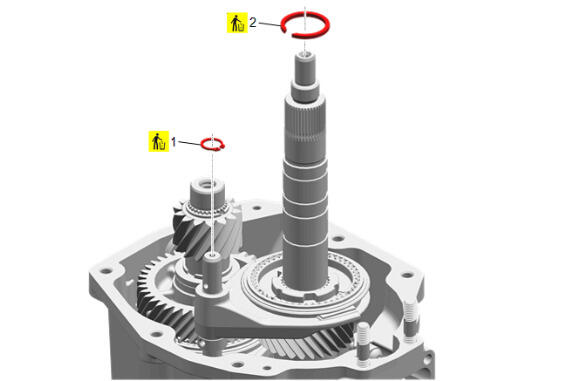

Install a NEW shift fork retainer ring (2).
- Install the reverse synchronizer retainer ring (1).
NOTE:
The synchronizer hub for reverse should be assembled with nylon ring side away from the reverse gear.
