Input Shaft, Mainshaft, and Countershaft

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

Rotate the clutch housing to the vertical position.
Install the following assemblies in order:
1. The countershaft bearing race (1).
2. The input shaft bearing race (2)
3. The input shaft (5)
4. Align the 4th speed gear blocking ring to the input shaft.
5. The mainshaft assembly (4)
6. The countershaft (3), lifting up the mainshaft (4) enough to install the countershaft (3).
Courtesy of GENERAL MOTORS COMPANY

Install the transmission case (1).
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

Install the clutch housing to transmission case bolts (1) and tighten to 36 N.m (27 lb ft).
Courtesy of GENERAL MOTORS COMPANY

Measure the input shaft/mainshaft end play using the following procedure:
1. Place the tip of the J 8001 indicator set (1) on the end of the mainshaft.
2. Move the main shaft up and down.
3. Record the measurement.
Select a shim to achieve 0.0127 - 0.0889 mm (0.00049 - 0.00349 in) end play.
Remove the J 8001 indicator set.
Courtesy of GENERAL MOTORS COMPANY

Measure the countershaft end play using the following procedure:
1. Place the tip of the J 8001 indicator set (1) on the end of the countershaft.
2. Move the countershaft up and down.
3. Record the measurement.
Select a shim to achieve 0.0127 - 0.0889 mm (0.00049 - 0.00349 in) end play.
Remove the J 8001 indicator set.
Courtesy of GENERAL MOTORS COMPANY

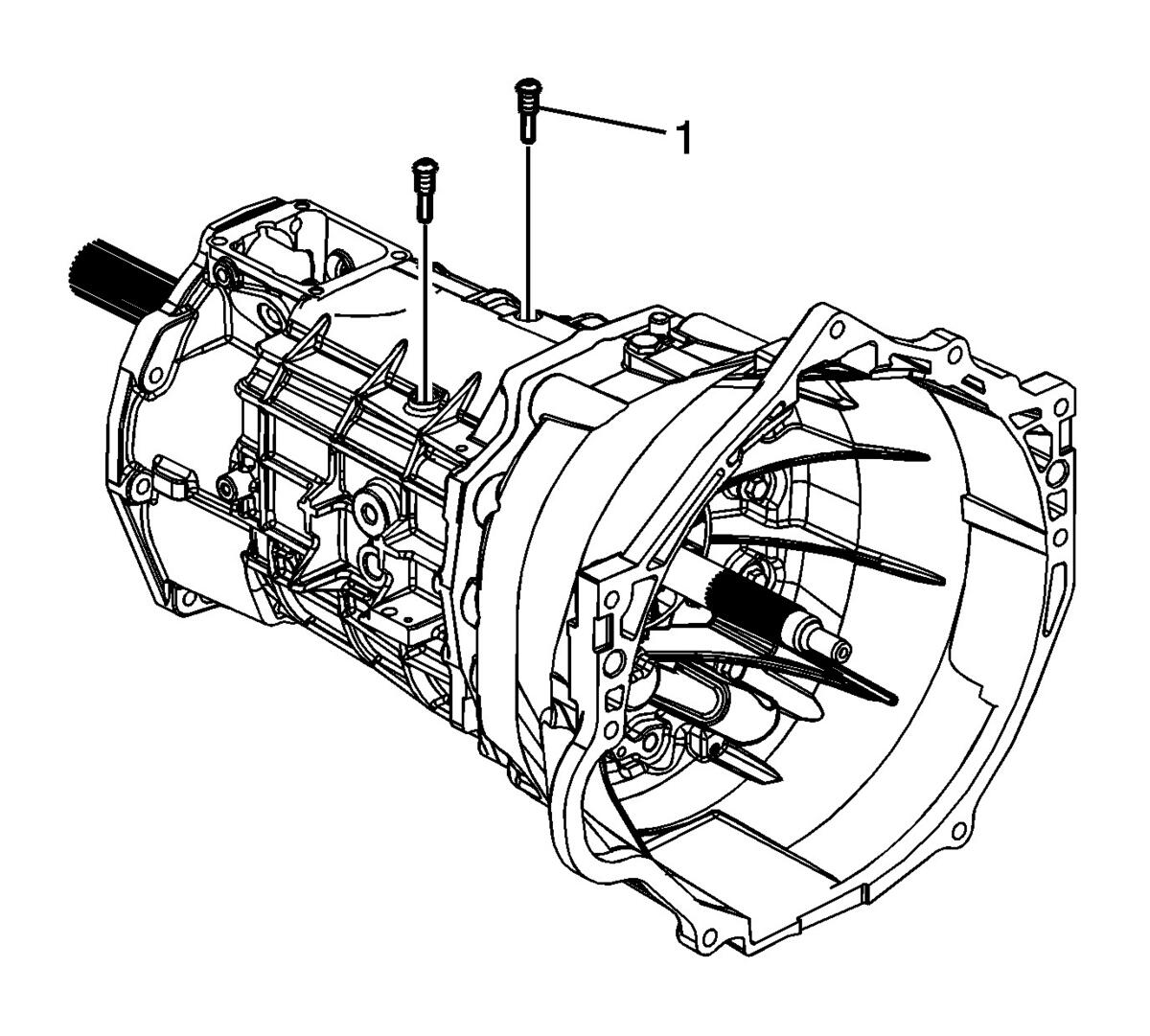

Remove the shift lever guide bolts (1).
Courtesy of GENERAL MOTORS COMPANY

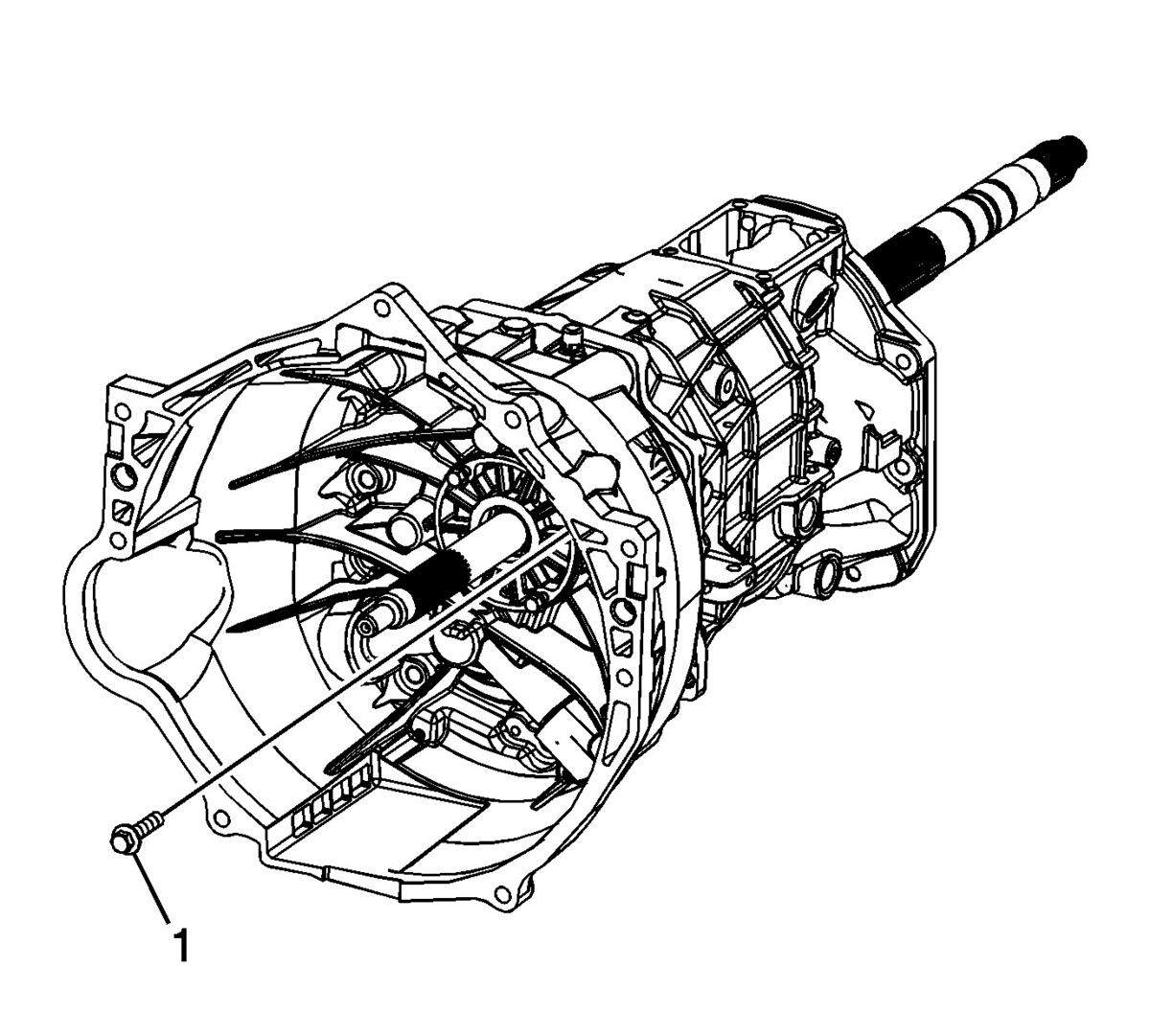

Remove the clutch housing to the transmission case bolts (1).
Courtesy of GENERAL MOTORS COMPANY

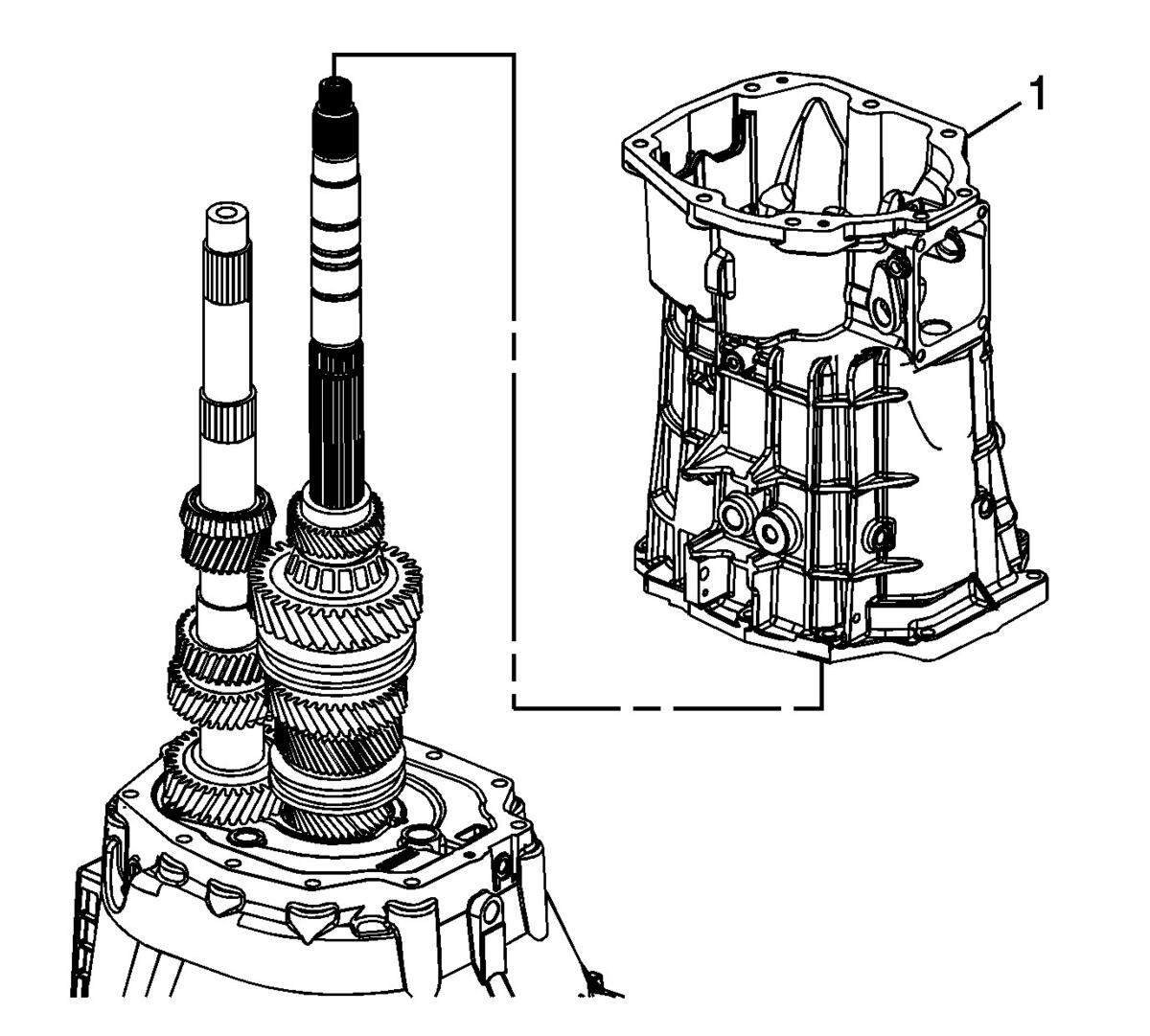

Remove the transmission case (1).
Courtesy of GENERAL MOTORS COMPANY

Remove the following parts in order:
1. The countershaft (3), lifting up the mainshaft (4) enough to remove the countershaft (3).
2. The mainshaft assembly (4).
3. The input shaft (5).
4. The input shaft bearing race (2).
5. The countershaft bearing race (1).
Courtesy of GENERAL MOTORS COMPANY

Install the NEW correct size input shaft bearing shim (2), and the original input shaft bearing race (1).
Courtesy of GENERAL MOTORS COMPANY

Install the NEW correct size countershaft shaft bearing shim (2), and the original countershaft bearing race (1).
