6th Speed Driven Gear Installation

WARNING: This page is about a different variant/trim than selected.

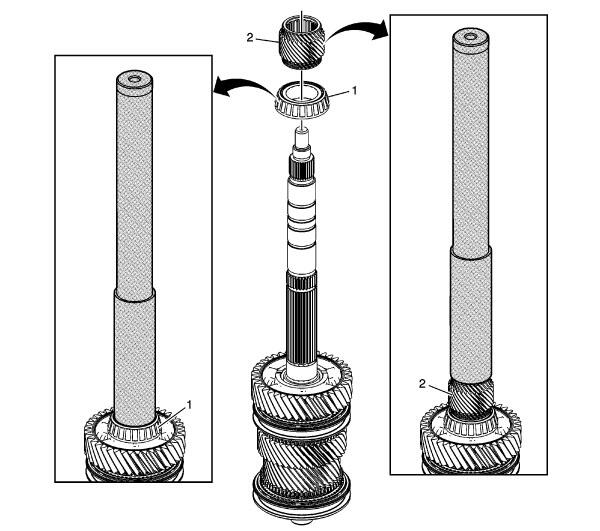

GM3212476Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
6th Speed Driven Gear Installation

Callout Component Name
1 Main Shaft Bearing

Special Tools

  • J-39441  5th/6th Driven Gear Installer
  • J-39441-20  5th Gear Installer Adapter
2 6th Speed Driven Gear

Special Tools

  • J-39441  5th/6th Driven Gear Installer
  • J-39441-10  5th Gear Installer Adapter
