6th Gear Installation
WARNING: This page is about a different variant/trim than selected.
NOTE:

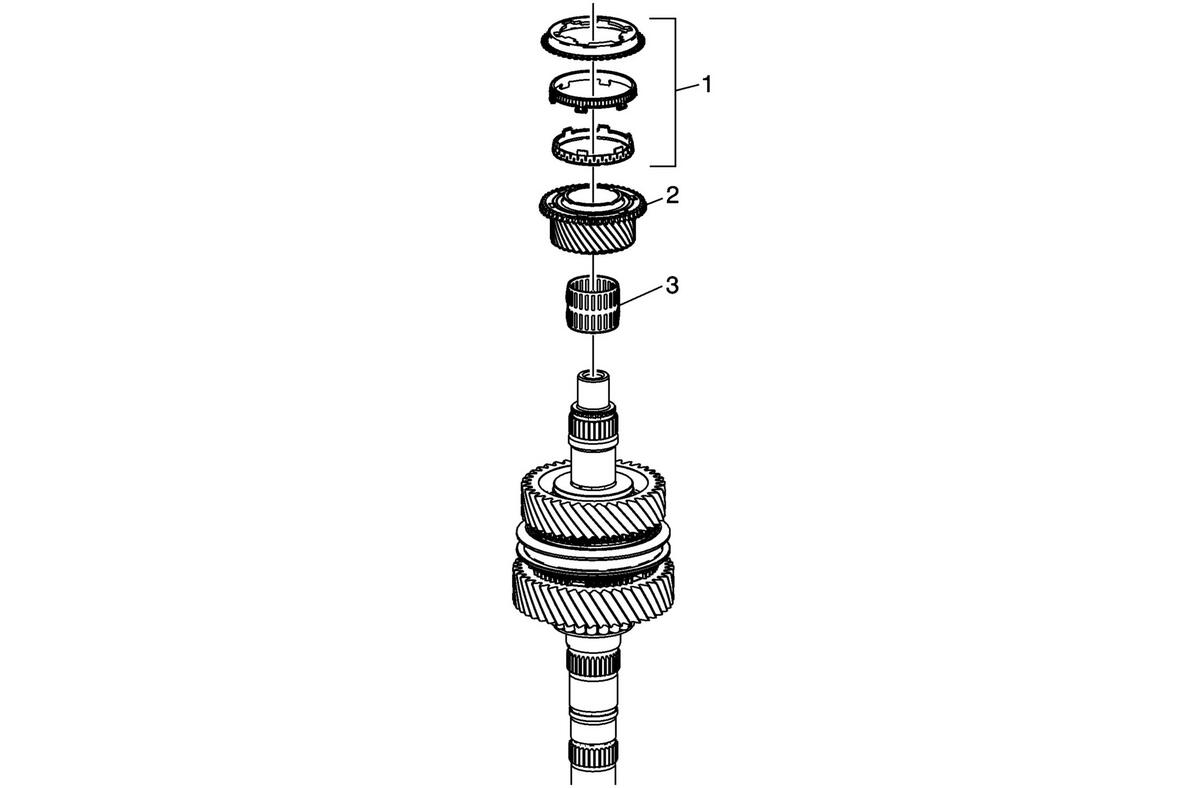

Callouts in the following chart represent components shown in graphic above.
6th Gear Installation
| Callout | Component Name |
|---|---|
| 1 | 6th Gear Blocking Ring Assembly
NOTE:
Ensure the tabs on the blocking ring align with the corresponding pockets in the synchronizer hub |
| 2 | 6th Gear Assembly |
| 3 | 6th Gear Bearing Assembly |
