Propeller Shaft Oil Seal, Reverse Sensor, and Speed Sensor Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:

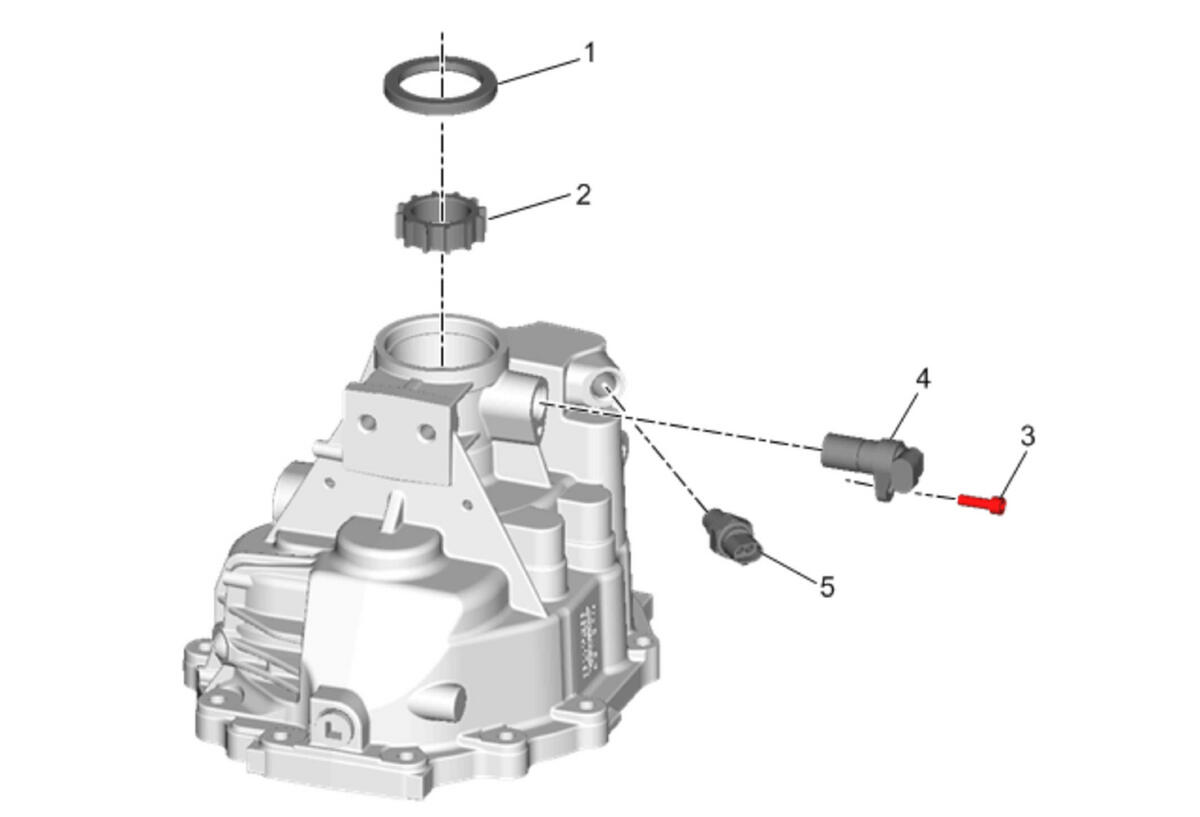

Callouts in the following chart represent components shown in graphic above.
Propeller Shaft Oil Seal, Reverse Sensor, and Speed Sensor Removal
| Callout | Component Name |
|---|---|
| 1 | Propeller Shaft Oil Seal |
| 2 | Speed Sensor Reluctor Wheel |
| 3 | Transmission Speed Sensor Bolt/Screw |
| 4 | Manual Transmission Output Speed Sensor Assembly |
| 5 | Reverse Sensor |
