Shift Shaft Bearing Installation

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

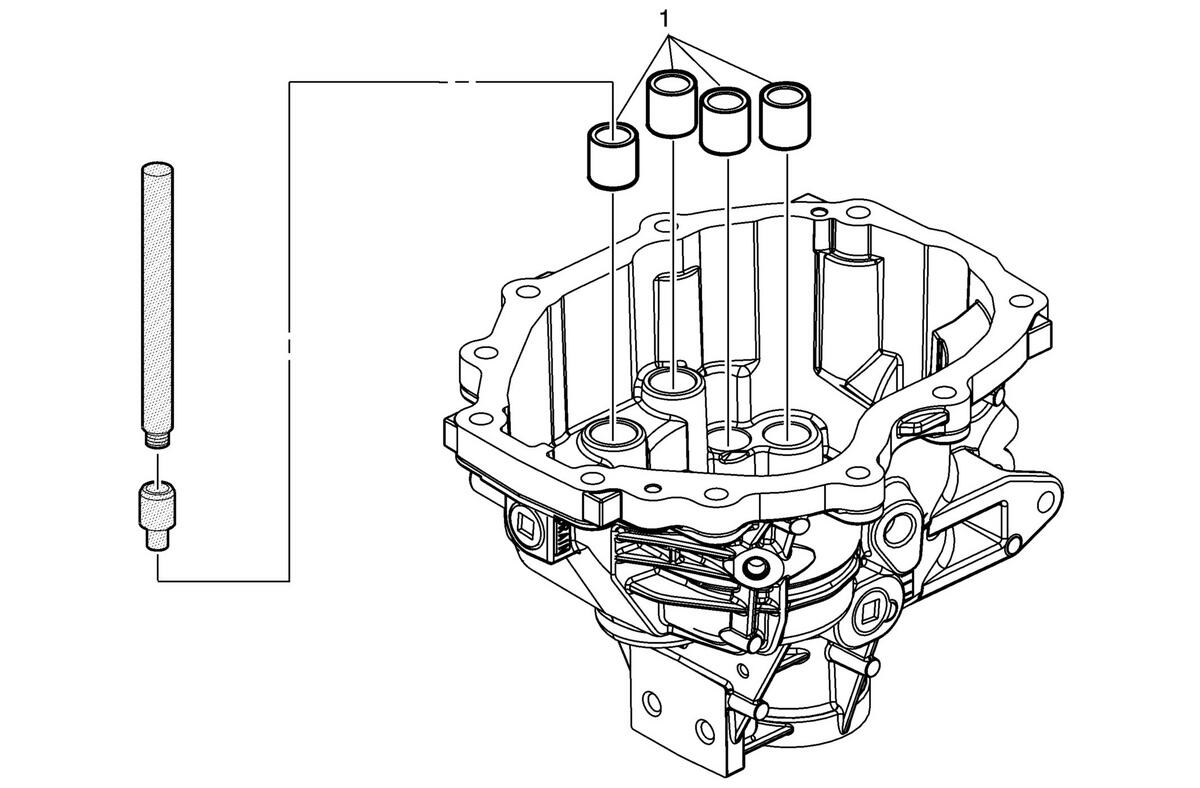

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
1	Shift Shaft Bearing Assembly Procedure Install the DT 44384 shift fork bearing installer into the bearing. Install the GE 36190 driver handle into the installer. Install the bearing. Special Tools GE 36190 Driver Handle DT 44384 Shift Fork Bearing Installer For equivalent regional tools, refer to Special Tools (M13) .

Callout

Component Name

Shift Shaft Bearing Assembly

Procedure

Special Tools
GE 36190 Driver Handle
DT 44384 Shift Fork Bearing Installer
For equivalent regional tools, refer to Special Tools (M13) .
