Propeller Shaft Oil Seal, Reverse Sensor, and Speed Sensor Installation

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

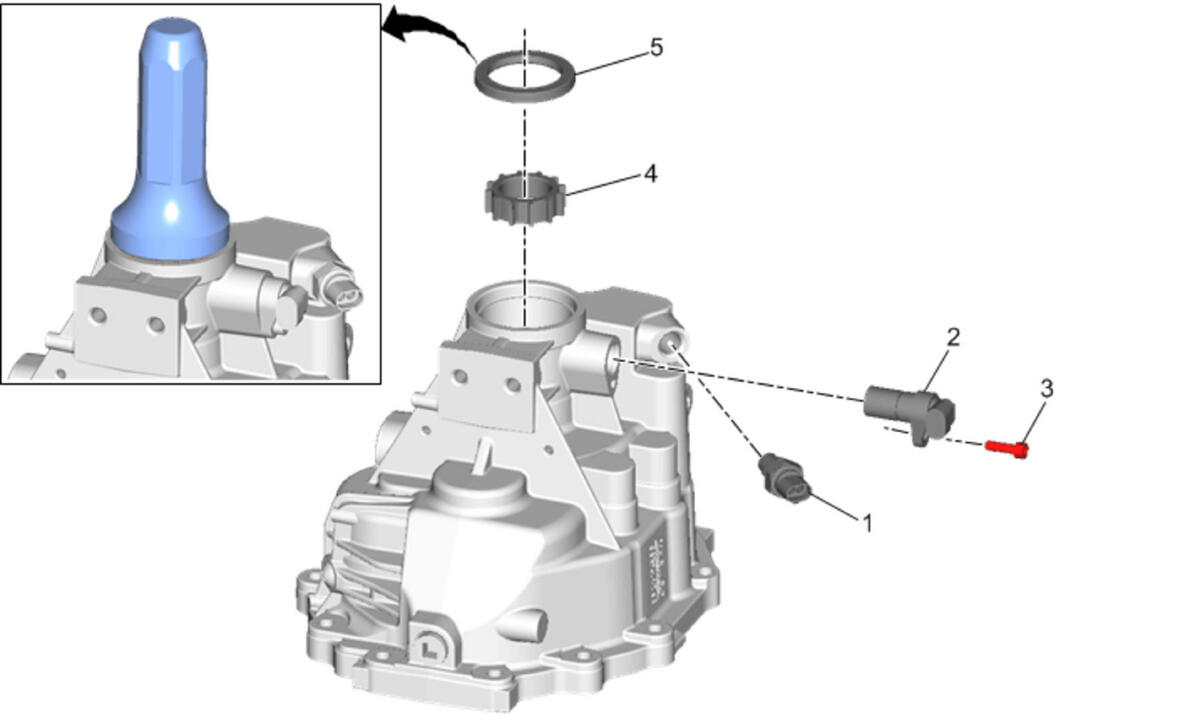

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
1	Reverse Sensor Tighten 27 N.m (20 lb ft)
2	Manual Transmission Output Speed Sensor Assembly
3	Transmission Speed Sensor Bolt/Screw Tighten 10 N.m (89 lb in)
4	Speed Sensor Reluctor Wheel
5	Propeller Shaft Oil Seal Procedure Install the DT 37212 front output shaft seal installer into the seal. Install the seal. Special Tools DT 37212 Front Output Shaft Seal Installer For equivalent regional tools, refer to Special Tools (M13) .
