Windshield Upper Garnish Molding Replacement

Courtesy of GENERAL MOTORS COMPANY

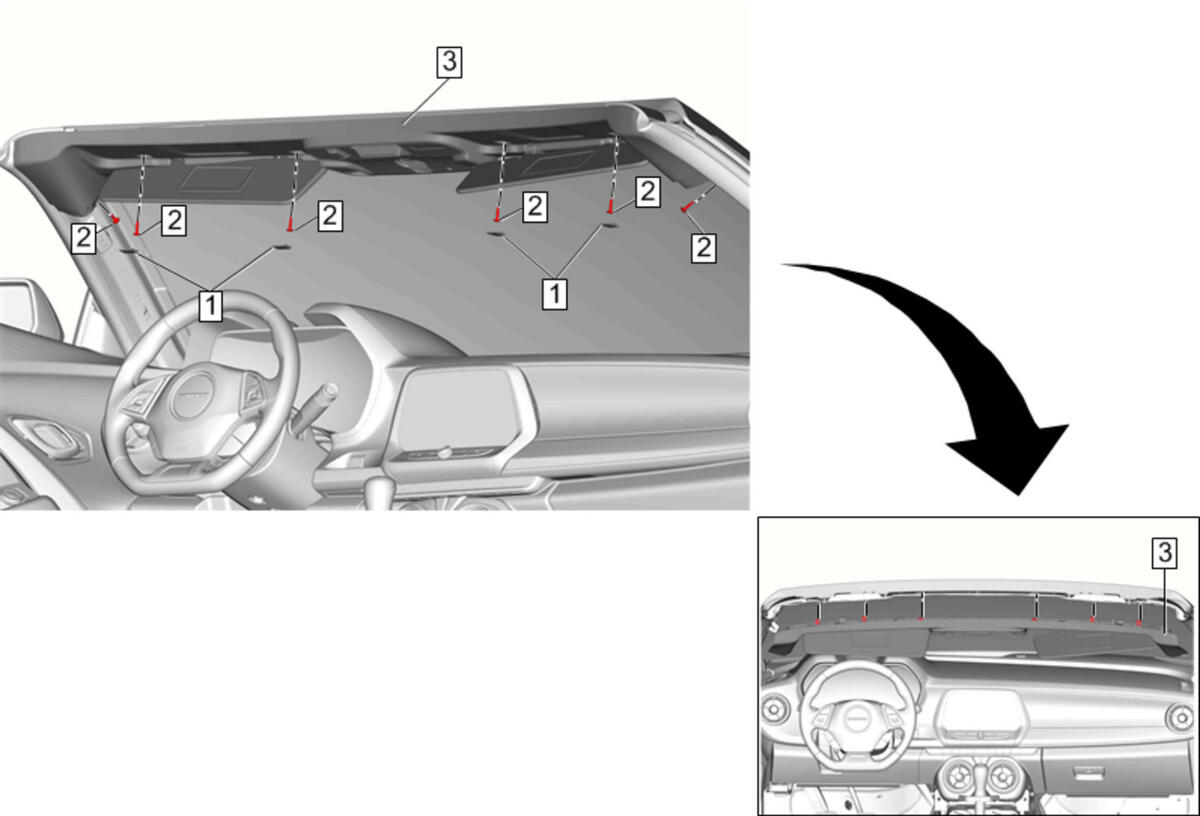

Callout	Component Name
Preliminary Procedures Inside Rearview Mirror Replacement Windshield Garnish Molding Replacement - Left Side (Coupe) , or Windshield Garnish Molding Replacement - Left Side (Convertible) , Windshield Garnish Molding Replacement - Right Side (Coupe) , or Windshield Garnish Molding Replacement - Right Side (Convertible)
1	Folding Top Cover [4x] Procedure Tilt the sunshade down toward the windshield to access covers.
2	Roof Panel Bolt [6x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
3	Windshield Upper Garnish Molding Procedure Disconnect the electrical connectors and unclip the electrical harness from the windshield inner side frame. Transfer parts as necessary.
