Rear Compartment Lid Replacement

Courtesy of GENERAL MOTORS COMPANY

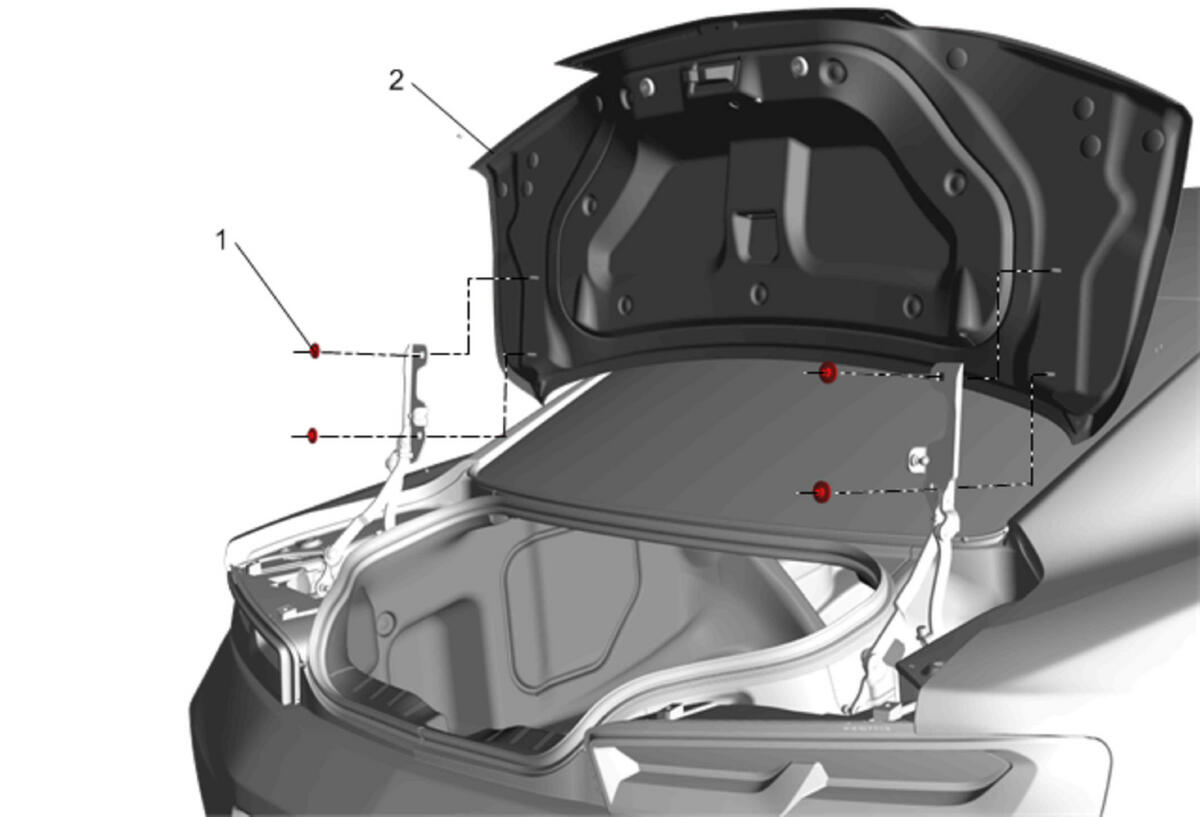

Callout	Component Name
Preliminary Procedure Rear Compartment Lid Strut Replacement
1	Rear Compartment Lid Nut [4x] CAUTION: Refer to Fastener Caution . Tighten 22 N.m (16 lb ft)
2	Rear Compartment Lid Procedure Disconnect the electrical connector. With the aid of an assistant, remove the rear compartment lid. Transfer components as necessary. Hood - Adjust - Rear Compartment Lid Adjustment

Callout

Component Name

Rear Compartment Lid Nut [4x]

CAUTION:

Tighten
22 N.m (16 lb ft)

Rear Compartment Lid

Procedure
