Rear Compartment Lid Adjustment

Procedure

1. Loosen the rear compartment lid hinge nuts (Qty: 4) to perform adjustments (a) and (b). Loosen the rear compartment latch striker bolts to perform adjustment (c).
2. Adjust the rear compartment lid in order to obtain an even gap between the rear compartment lid and the quarter outer panel, the rear tail lamp, and the rear bumper fascia and so that the rear compartment lid is flush with the quarter outer panel, the rear tail lamp, and the rear bumper fascia.

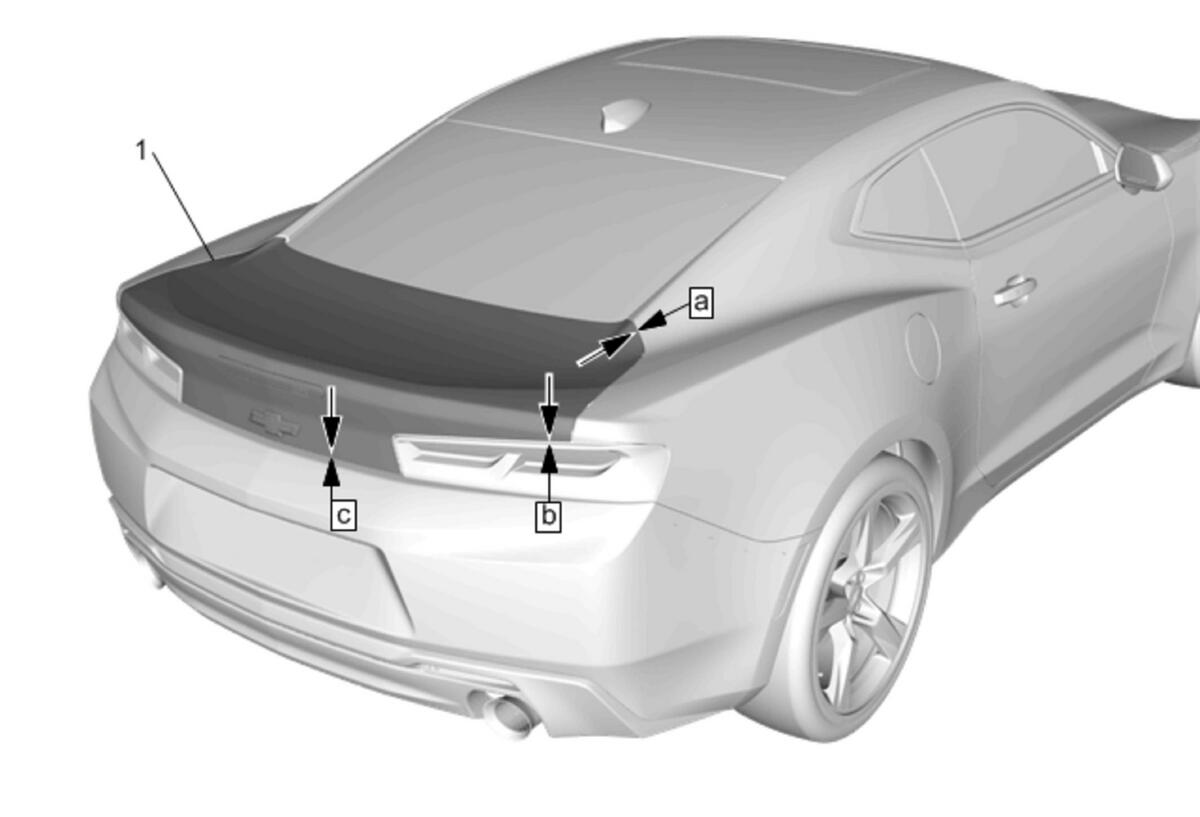

   Adjustments

   • Rear compartment lid to quarter outer panel (a) 3.0 mm ± 0.75 mm (0.12 in ± 0.03 in)
   • Tail lamp to rear compartment lid (b) 6.25 mm ± 1.5 mm (0.25 in ± 0.06 in)
   • Rear compartment lid to rear bumper fascia (c) 6.0 mm ± 1.5 mm (0.24 in ± 0.06 in)
