Engine Harness Routing - Rear of the Engine (LV7)

WARNING: This page is about a different car, the 2019 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

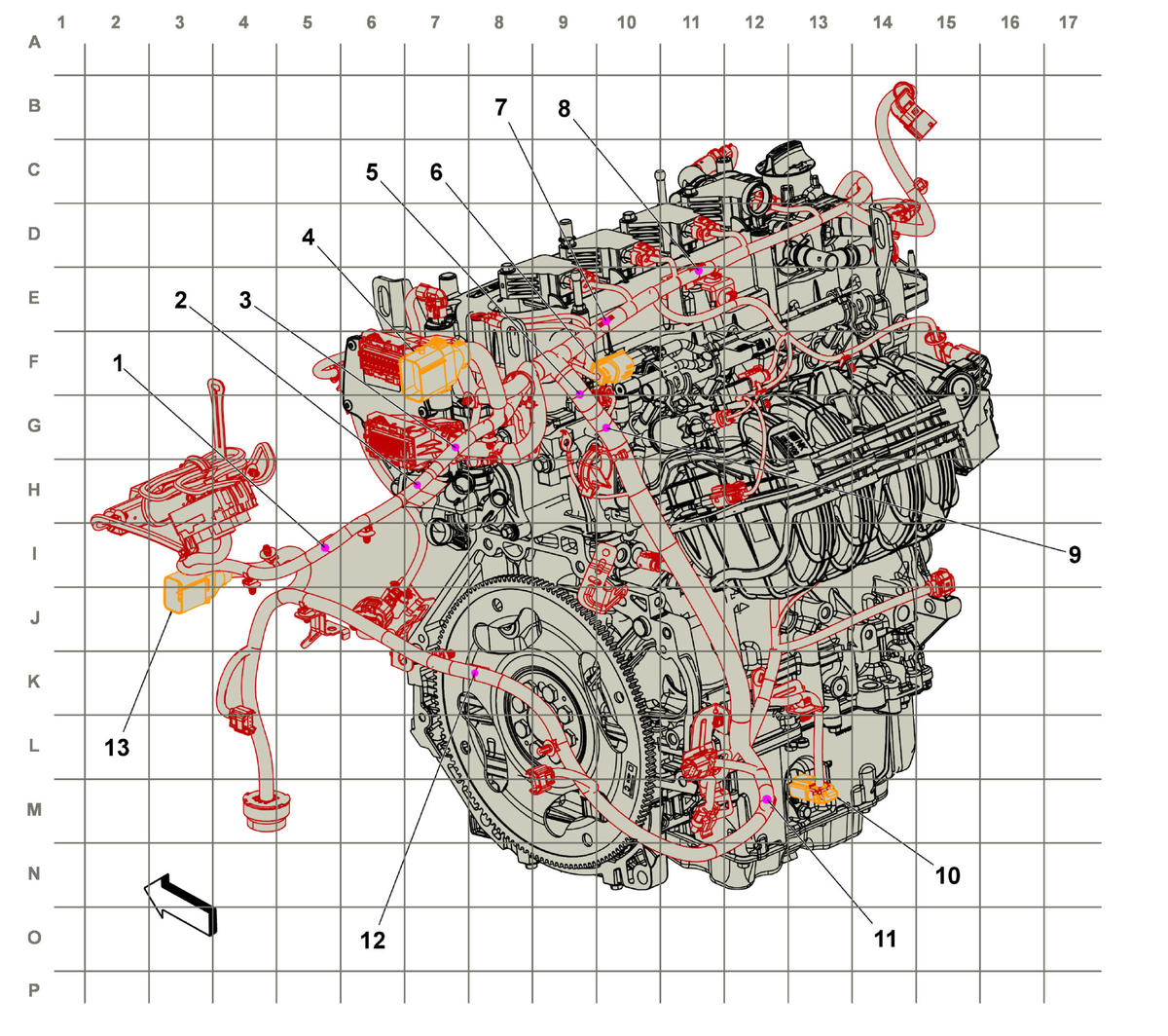

GM5317144Courtesy of GENERAL MOTORS COMPANY
Items
1. J115 Engine Harness
2. J124 Engine Harness
3. J160 Engine Harness
4. X100 Body Harness to Engine Harness X100 Body Harness to Engine Harness
5. J118 Engine Harness
6. X160 Engine Harness to Fuel Injector Harness X160 Engine Harness to Fuel Injector Harness (L5Q) , or X160 Engine Harness to Fuel Injector Harness (LV7)
7. J121 Engine Harness
8. J122 Engine Harness
9. J119 Engine Harness
10. X102 Engine Harness to Engine Oil Control Solenoid Jumper Harness X102 Engine Harness to Engine Oil Control Solenoid Jumper Harness (L5Q) , or X102 Engine Harness to Engine Oil Control Solenoid Jumper Harness (LV7)
11. J127 Engine Harness
12. J126 Engine Harness
13.X103 Body Harness to Engine Harness X103 Body Harness to Engine Harness
