Engine Harness Routing - Front of the Engine (LV7)

WARNING: This page is about a different car, the 2019 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

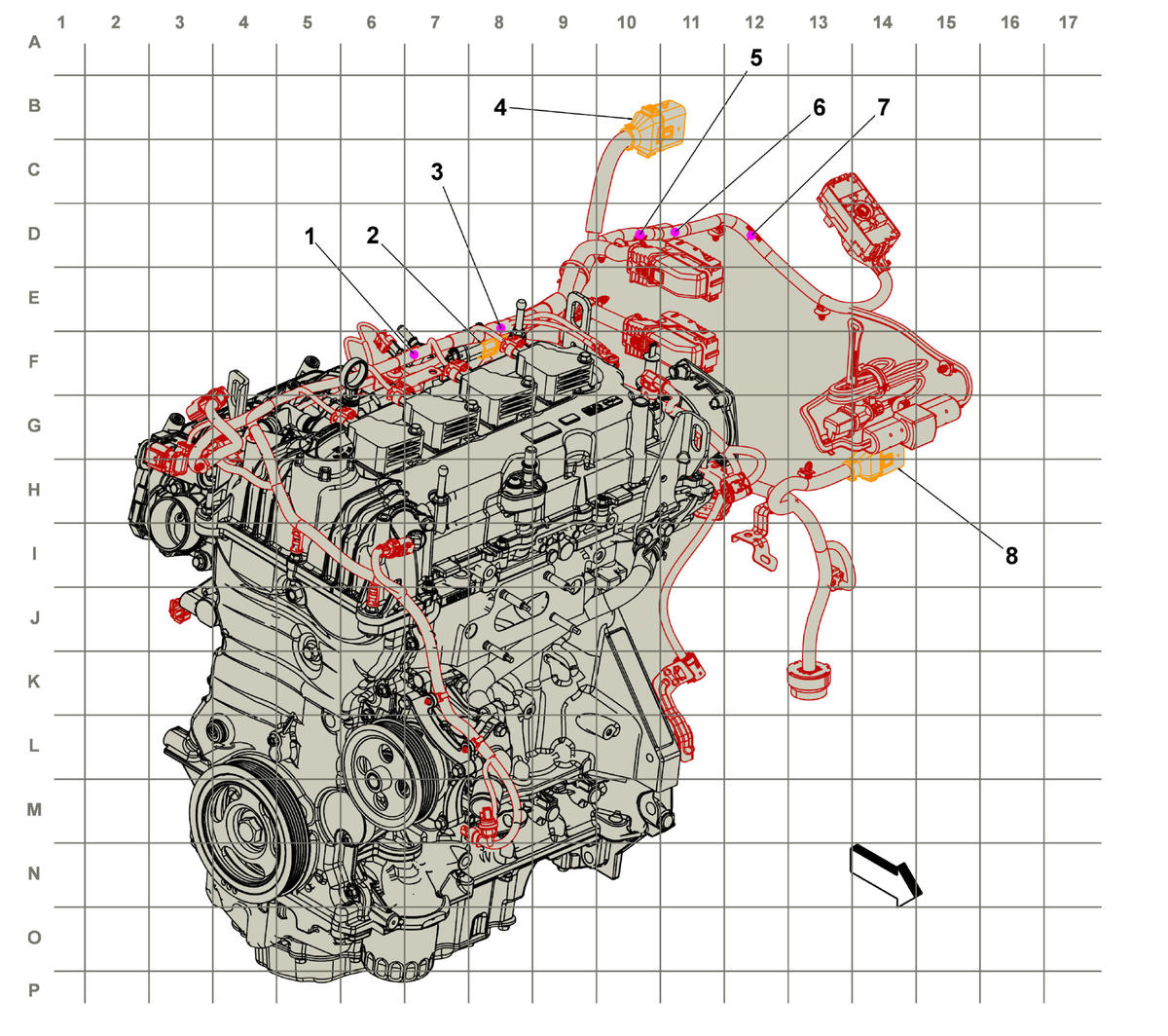

GM5317143Courtesy of GENERAL MOTORS COMPANY
Items
1. J122 Engine Harness
2. X160 Engine Harness to Fuel Injector Harness X160 Engine Harness to Fuel Injector Harness (L5Q) , or X160 Engine Harness to Fuel Injector Harness (LV7)
3. J121 Engine Harness
4. X100 Body Harness to Engine Harness X100 Body Harness to Engine Harness
5. J160 Engine Harness
6. J124 Engine Harness
7. J115 Engine Harness
8. X103 Body Harness to Engine Harness X103 Body Harness to Engine Harness
