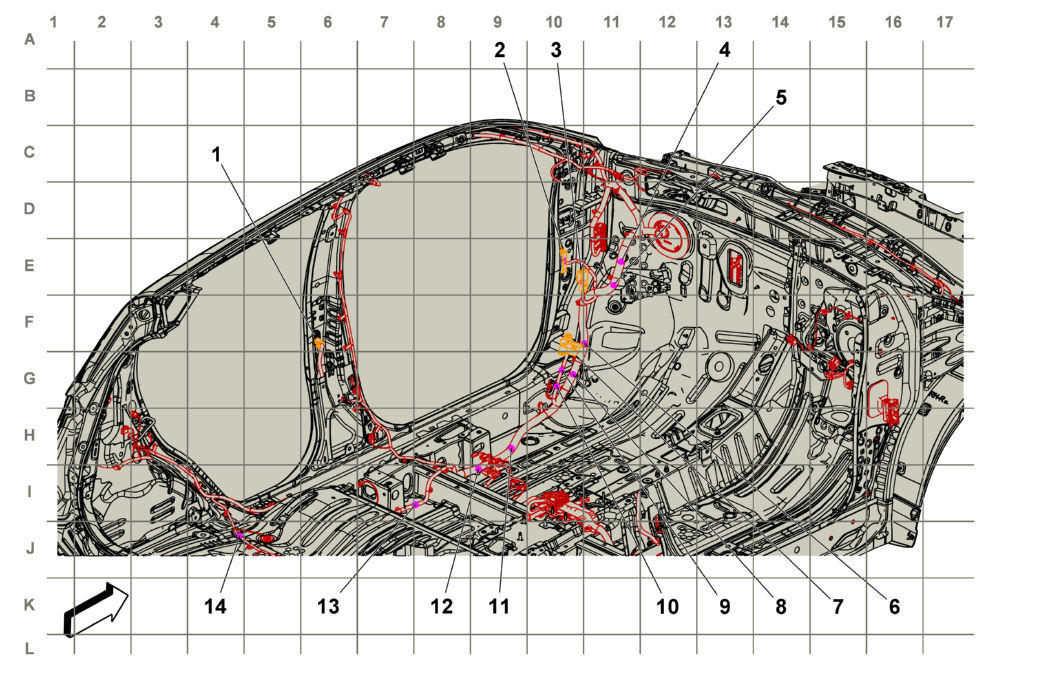

Body Harness Routing - Left Side of the Passenger Compartment (RHD)
WARNING: This page is about a different car, the 2019 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| 1. X700 Body Harness to Left Rear Door Harness X700 Body Harness to Left Rear Door Harness |
| 2. X600 Passenger Door Harness to Body Harness X600 Passenger Door Harness to Body Harness (LHD) , or X600 Passenger Door Harness to Body Harness (RHD) |
| 3. X202 Instrument Panel Harness to Body Harness X202 Instrument Panel Harness to Body Harness |
| 4. J213 Instrument Panel Harness |
| 5. J311 Body Harness |
| 6. J313 Body Harness |
| 7. J314 Body Harness |
| 8. X201 Instrument Panel Harness to Body Harness X201 Instrument Panel Harness to Body Harness |
| 9. J302 Body Harness |
| 10. J327 Body Harness |
| 11. J328 Body Harness |
| 12. J321 Body Harness |
| 13. J322 Body Harness |
| 14. J322 Body Harness |
| 15. J333 Body Harness |
