Windshield Washer Solvent Container Replacement

Courtesy of GENERAL MOTORS COMPANY

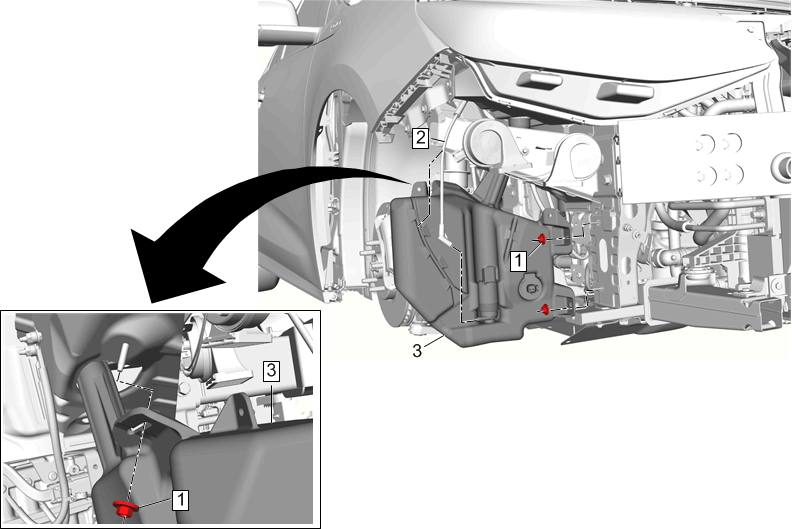

Callout	Component Name
Preliminary Procedures Windshield Washer Solvent Container Filler Tube Replacement Front Headlamp Replacement Disconnect the electrical connectors.
1	Windshield Washer Solvent Container Nut[3x] CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Windshield Washer Pump Hose Procedure Disconnect the windshield washer pump hose.
3	Windshield Washer Solvent Container Procedure Remove the windshield washer solvent container from the vehicle. Drain the windshield washer solvent into a suitable clean container. Transfer components as necessary. Fill the washer container with clean washer solvent once the installation has been completed.
