Windshield Washer Solvent Container Filler Tube Replacement
Windshield Washer Solvent Container Filler Tube Replacement
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
Preliminary Procedure
Open the hood.
1

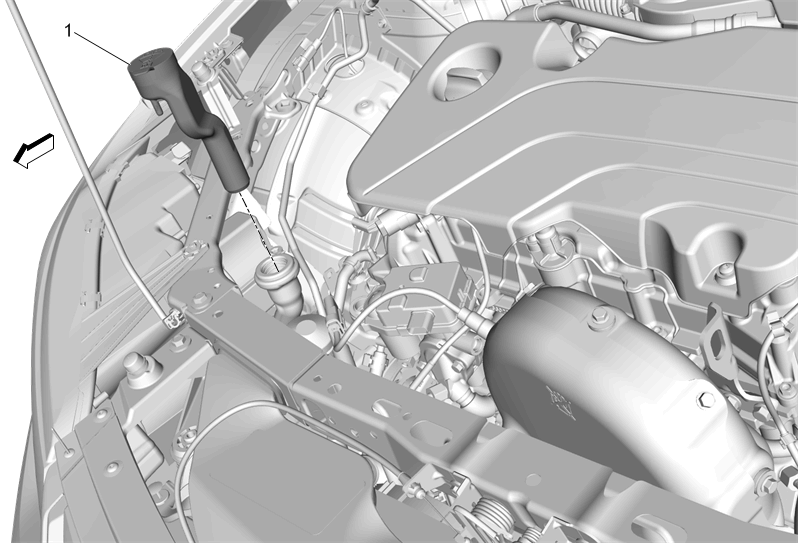

Windshield Washer Solvent Container Filler Tube
Procedure
Pull upward on the filler tube in order to disconnect the filler tube from the windshield washer solvent container grommet.
