Radio Front Floor Console Speaker Replacement (Chevrolet / GMC)

Courtesy of GENERAL MOTORS COMPANY

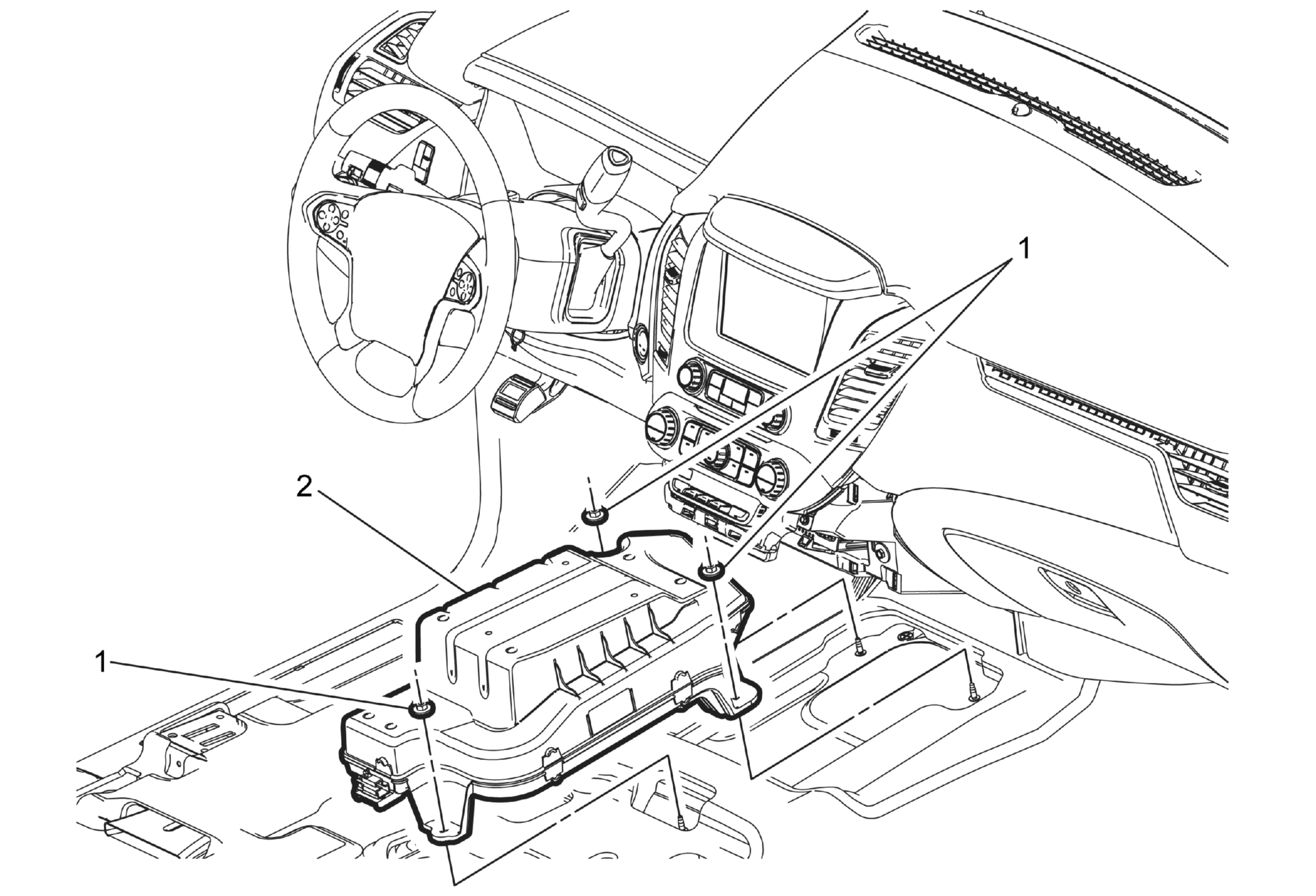

Callout	Component Name
Preliminary Procedure  Remove the front floor console. Refer to Front Floor Console Replacement (Chevrolet / GMC)Front Floor Console Replacement (Cadillac) .
1	Radio Front Floor Console Speaker Fasteners (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten  6 N.m (53 lb in)
2	Radio Front Floor Console Speaker Procedure  Disconnect the electrical connector.
