Instrument Panel Tie Bar Brace Replacement

Courtesy of GENERAL MOTORS COMPANY

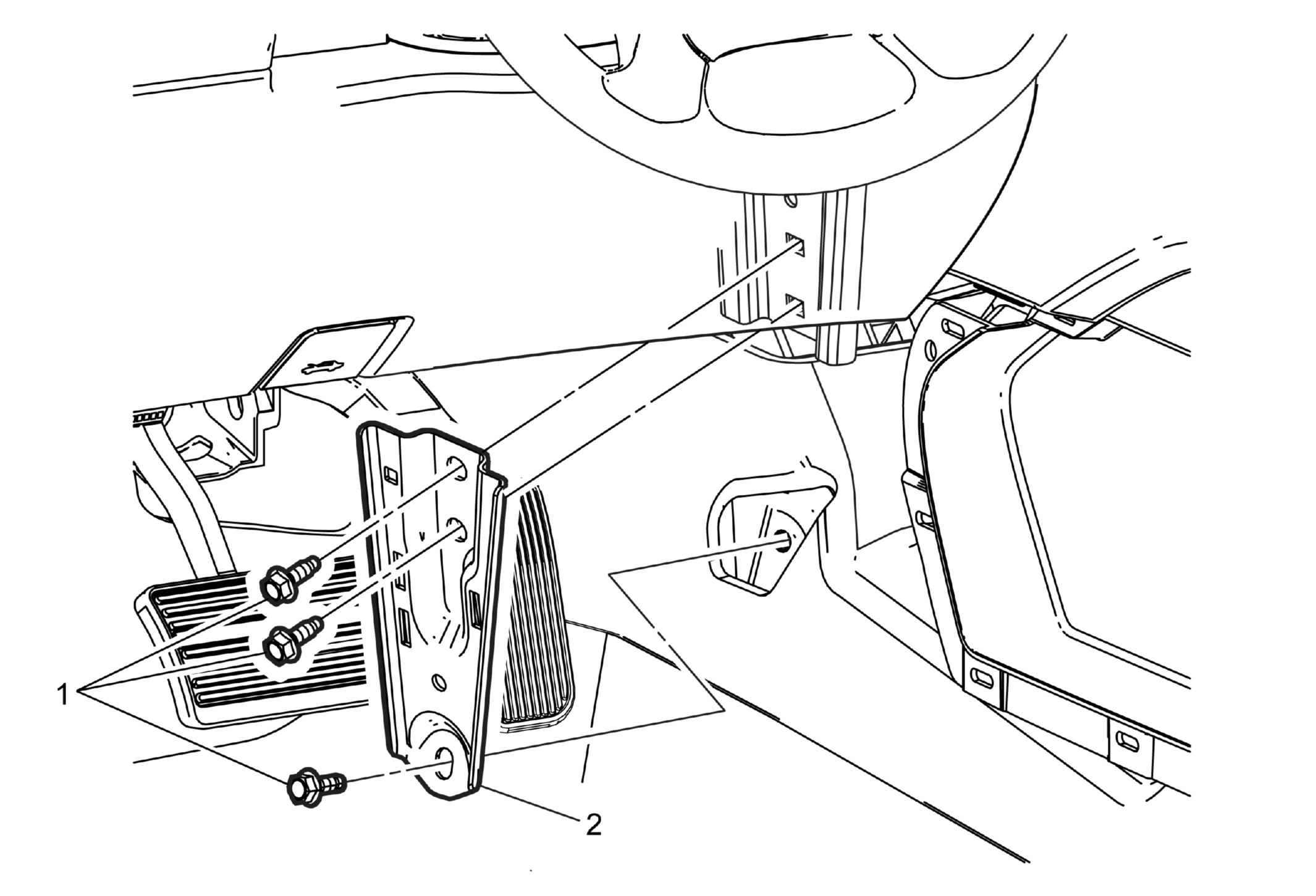

Callout	Component Name
Preliminary Procedures Remove the left front floor console extension panel, if equipped. Refer to Front Floor Console Extension Panel Replacement - Left Side (Chevrolet / GMC) Front Floor Console Extension Panel Replacement - Left Side (Cadillac) . Remove the instrument panel lower center trim panel, if equipped. Refer to Instrument Panel Lower Center Trim Panel Replacement (Chevrolet / GMC) .
1	Instrument Panel Tie Bar Brace Bolt (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 22 N.m (16 lb ft)
2	Instrument Panel Tie Bar Brace

Callout

Component Name

Preliminary Procedures

Instrument Panel Tie Bar Brace Bolt (Qty: 3)

CAUTION:

Tighten
22 N.m (16 lb ft)

Instrument Panel Tie Bar Brace
