Installation Procedure

When replacing the instrument panel compartment, transfer all necessary components.
Courtesy of GENERAL MOTORS COMPANY

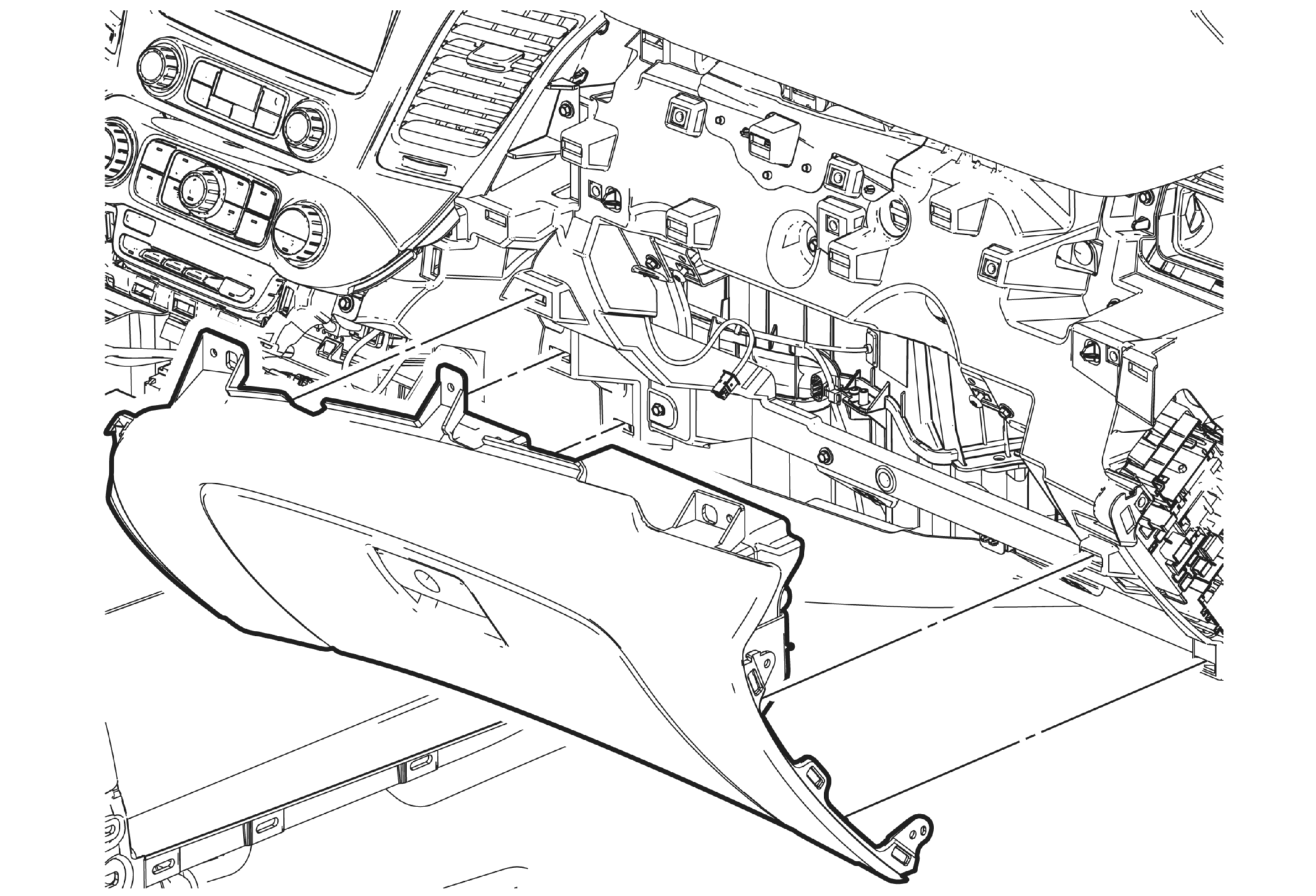

Install the instrument panel compartment (1) to the instrument carrier.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

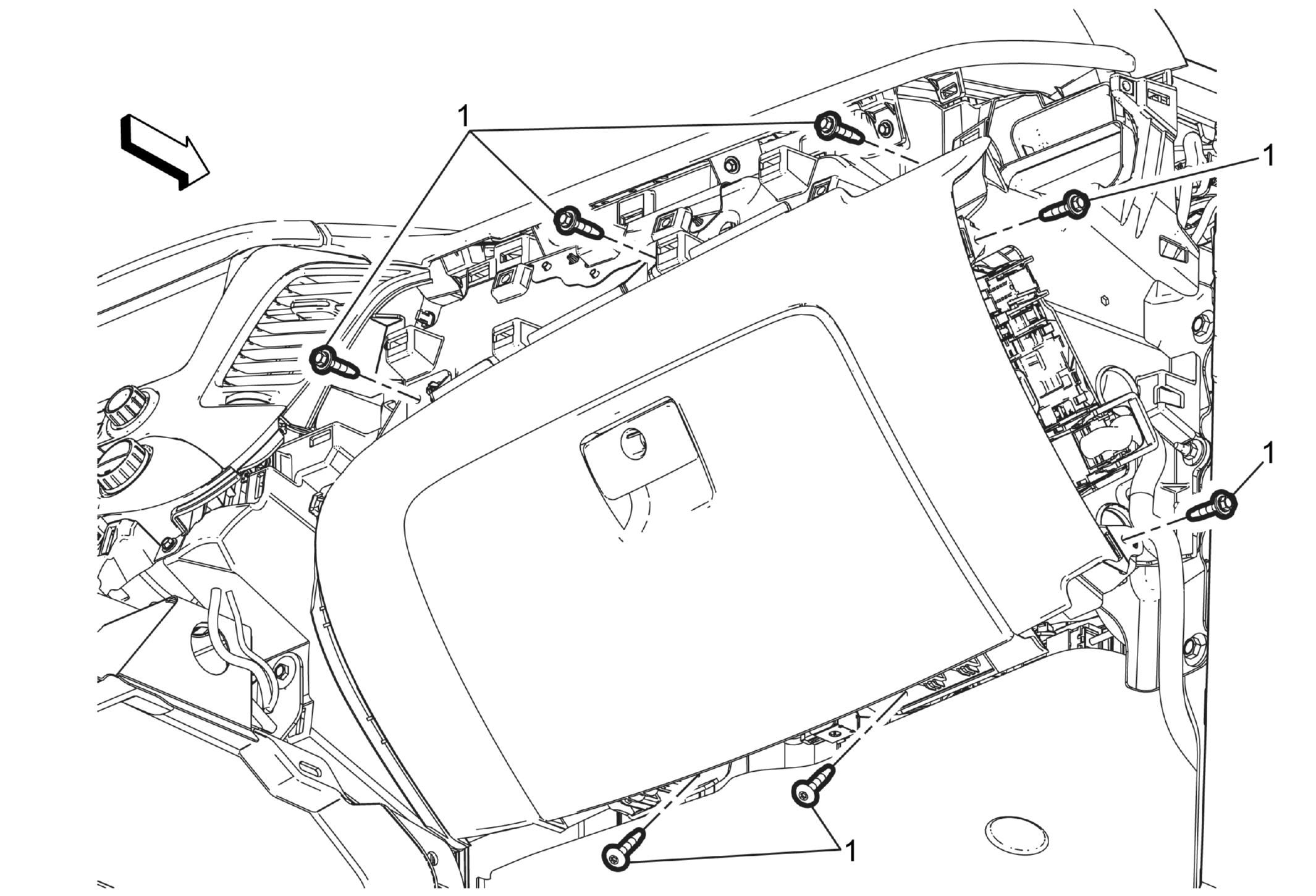

Install the bolts (1) securing the instrument panel compartment to the instrument carrier and tighten to 2.5 N.m (22 lb in).
Courtesy of GENERAL MOTORS COMPANY

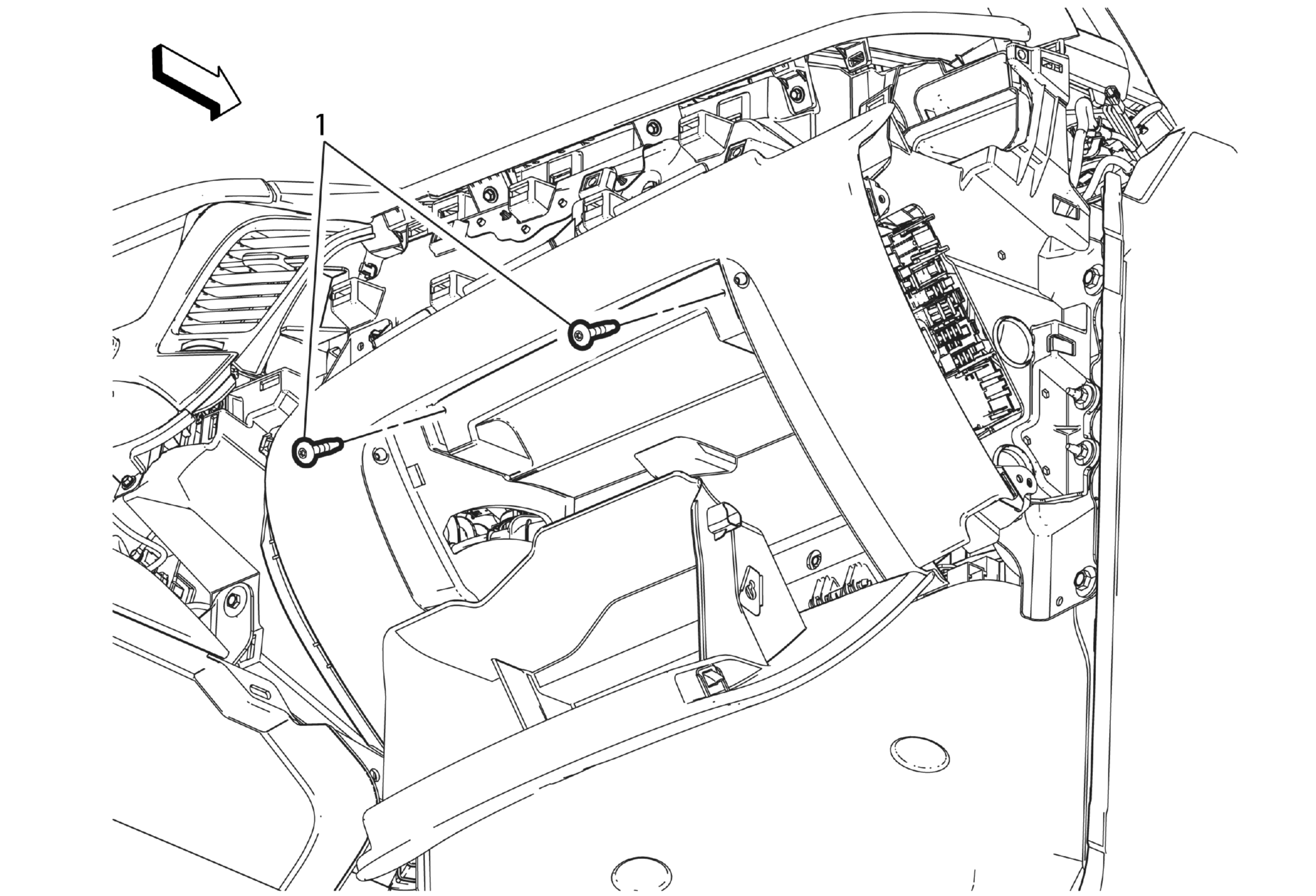

Install the bolts (1) securing the instrument panel compartment to the instrument carrier and tighten to 2.5 N.m (22 lb in).
Install the instrument panel center compartment, if equipped. Refer to Instrument Panel Center Compartment Replacement (Chevrolet / GMC) .
Install the front floor console trim plate, if equipped. Refer to Front Floor Console Trim Plate Replacement (Chevrolet / GMC) .
Install the right front floor console extension panel, if equipped. Refer to Front Floor Console Extension Panel Replacement - Right Side (Chevrolet / GMC) .
Install the right instrument panel outer air outlet. Refer to Instrument Panel Outer Air Outlet Replacement - Right Side (Chevrolet / GMC) .
