Instrument Panel Outer Air Outlet Replacement - Right Side (Chevrolet / GMC)

Courtesy of GENERAL MOTORS COMPANY

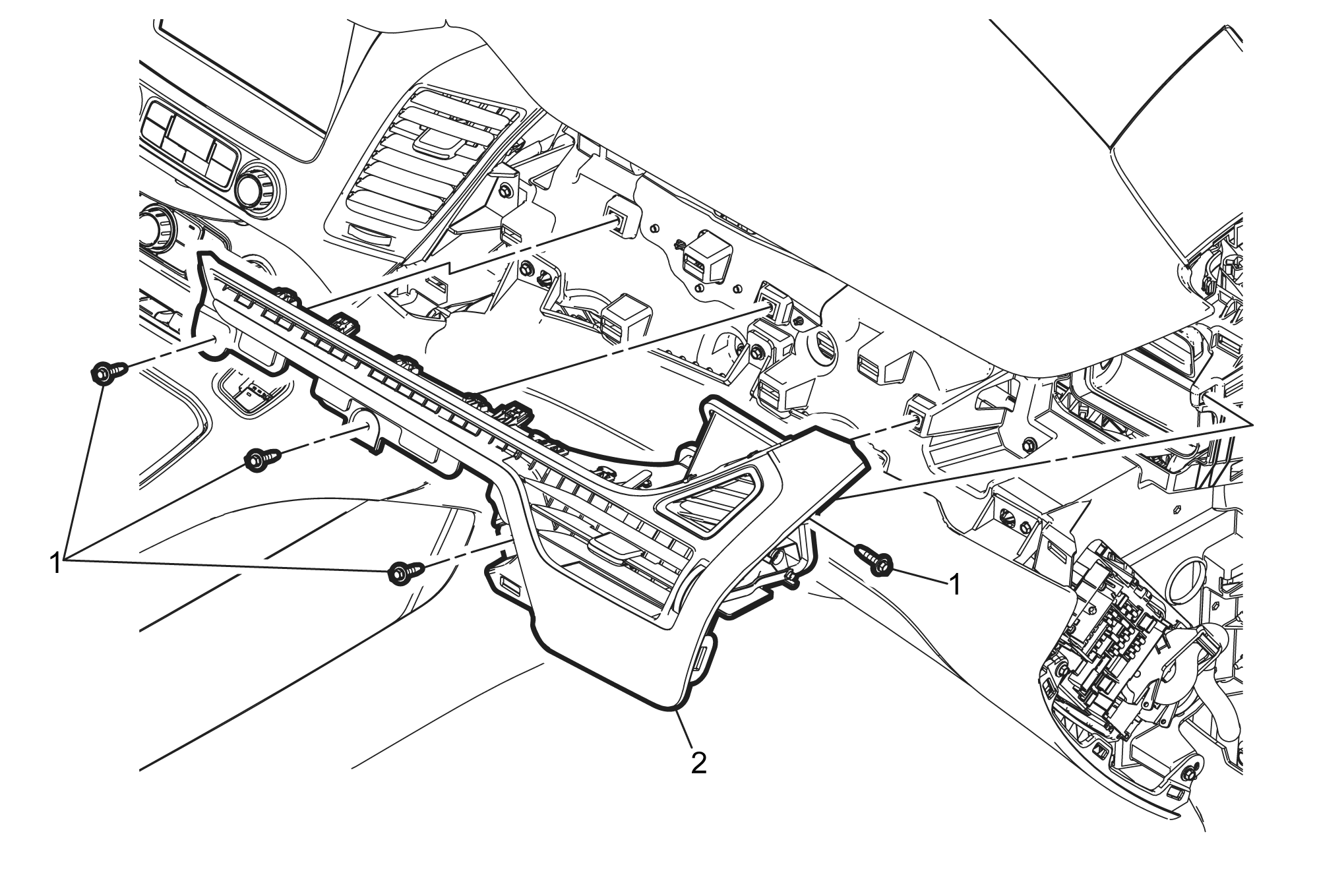

Callout	Component Name
Preliminary Procedures Remove the instrument panel lower trim panel. Refer to Instrument Panel Lower Trim Panel Replacement (Chevrolet / GMC) . Remove the right instrument panel fuse block access hole cover. Refer to Instrument Panel Fuse Block Access Hole Cover Replacement (Chevrolet / GMC) .
1	Instrument Panel Outer Air Outlet Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Instrument Panel Outer Air Outlet Procedure Use a flat bladed plastic trim tool in order to release the retainer clips securing the outlet to the instrument panel carrier.

Callout

Component Name

Preliminary Procedures

Remove the instrument panel lower trim panel. Refer to Instrument Panel Lower Trim Panel Replacement (Chevrolet / GMC) .
Remove the right instrument panel fuse block access hole cover. Refer to Instrument Panel Fuse Block Access Hole Cover Replacement (Chevrolet / GMC) .

Instrument Panel Outer Air Outlet Bolt (Qty: 4)

CAUTION:

Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

Instrument Panel Outer Air Outlet
Procedure
Use a flat bladed plastic trim tool in order to release the retainer clips securing the outlet to the instrument panel carrier.
