Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

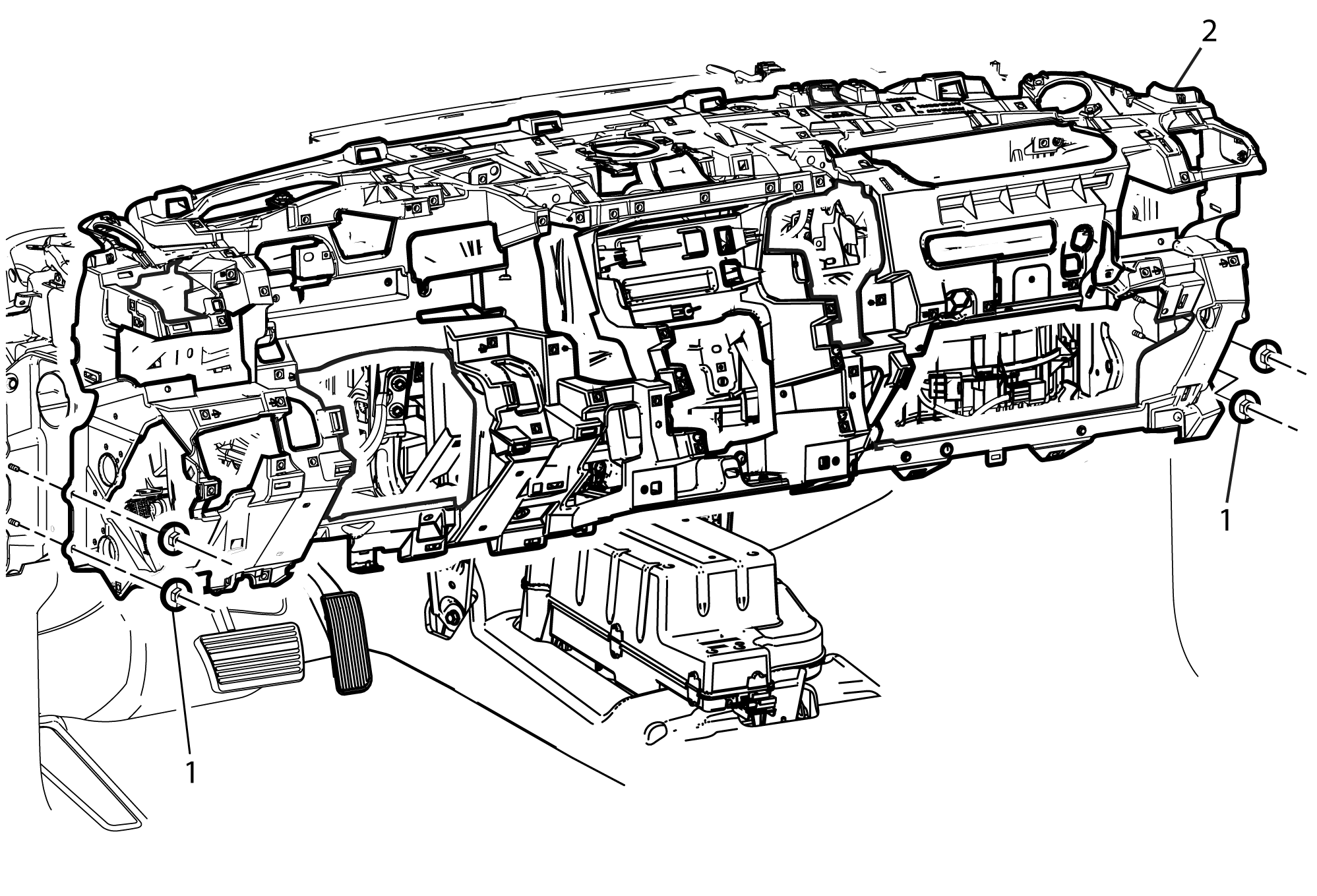

With the aid of an assistant, position the instrument panel carrier (2) into the vehicle.
Reposition the instrument panel wiring harness into vehicle position as was noted in the removal process and connect the fasteners securing the instrument panel wiring harness to the instrument panel assembly.
Install the right and left floor flood lamps by gently releasing the tab on the lamp assemblies.
Install the data link connector fasteners and position the data link connector out of the way.

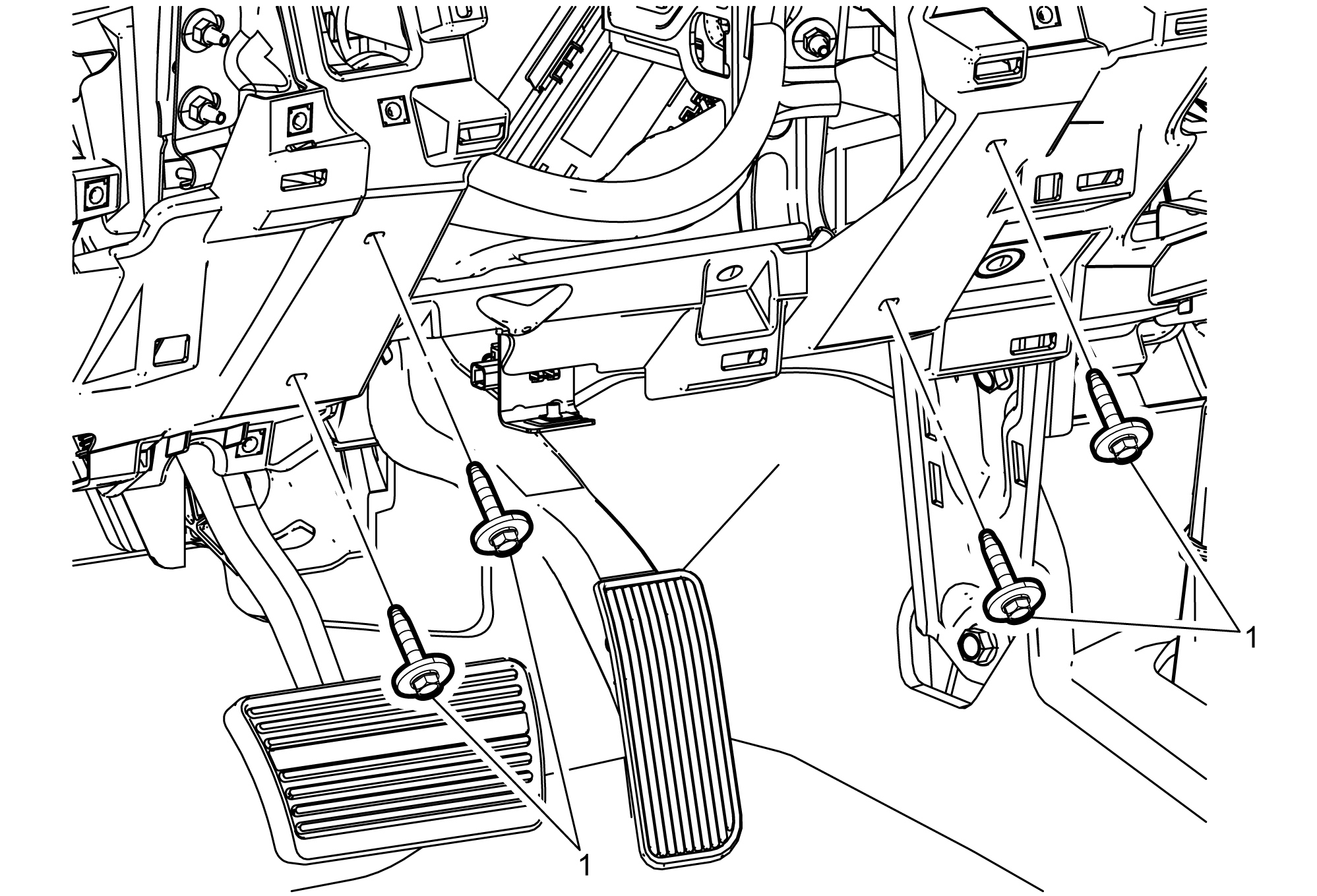

Install the instrument panel carrier nuts (1) and tighten to 9 N.m (80 lb in).
Courtesy of GENERAL MOTORS COMPANY

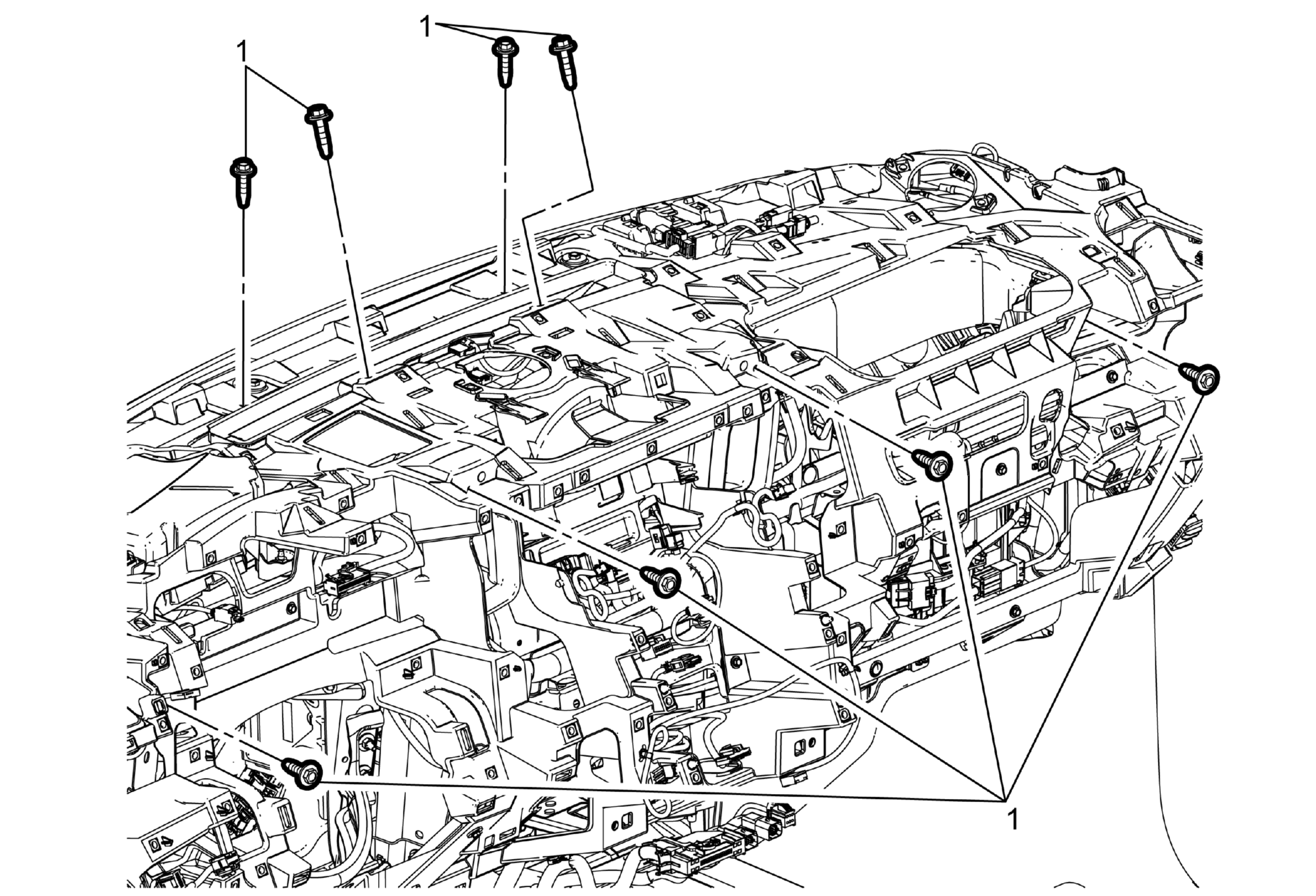

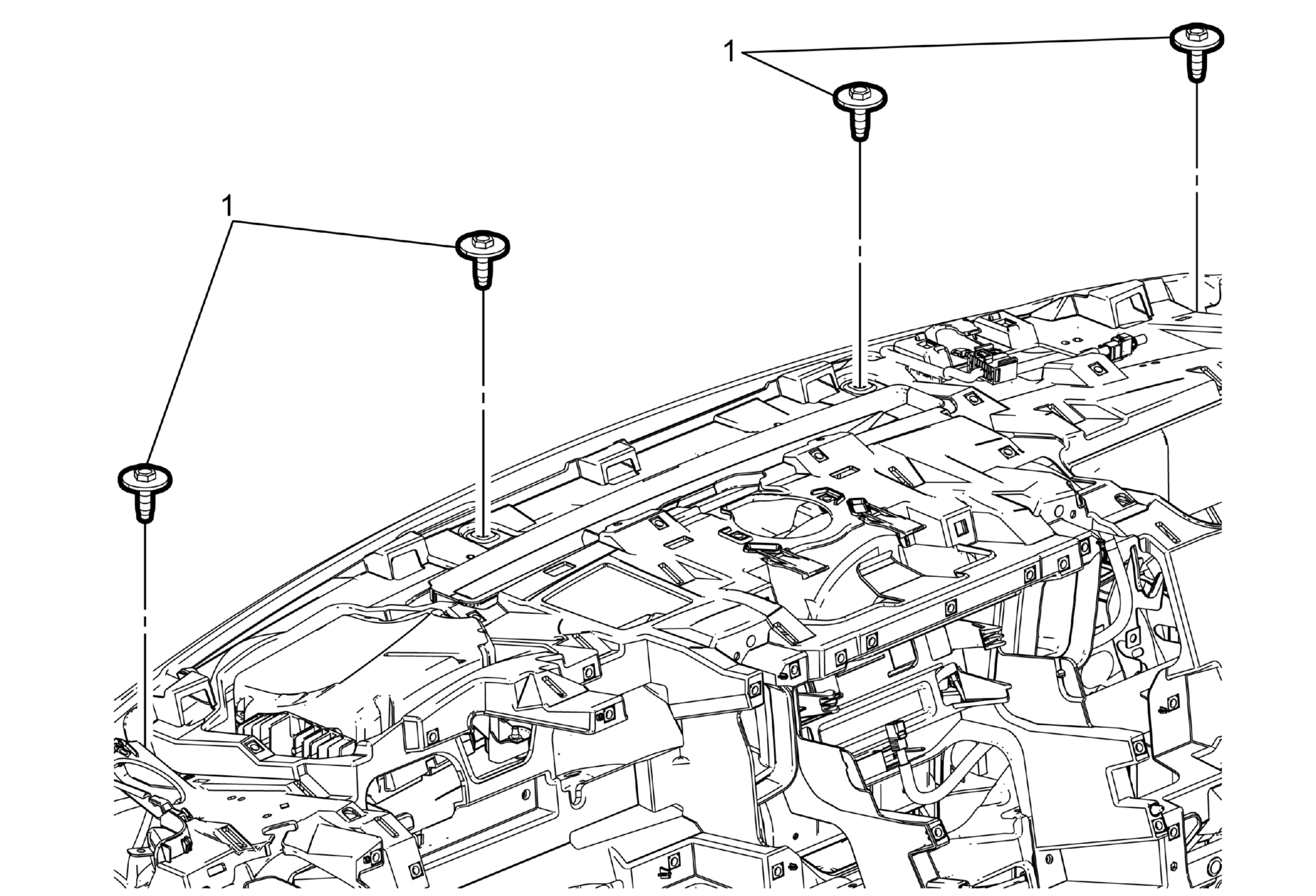

Install the instrument panel upper trim panel fasteners (1) and tighten to 9 N.m (80 lb in).
Courtesy of GENERAL MOTORS COMPANY

Install the instrument carrier fasteners (1) and tighten to 2.5 N.m (22 lb in).
Courtesy of GENERAL MOTORS COMPANY

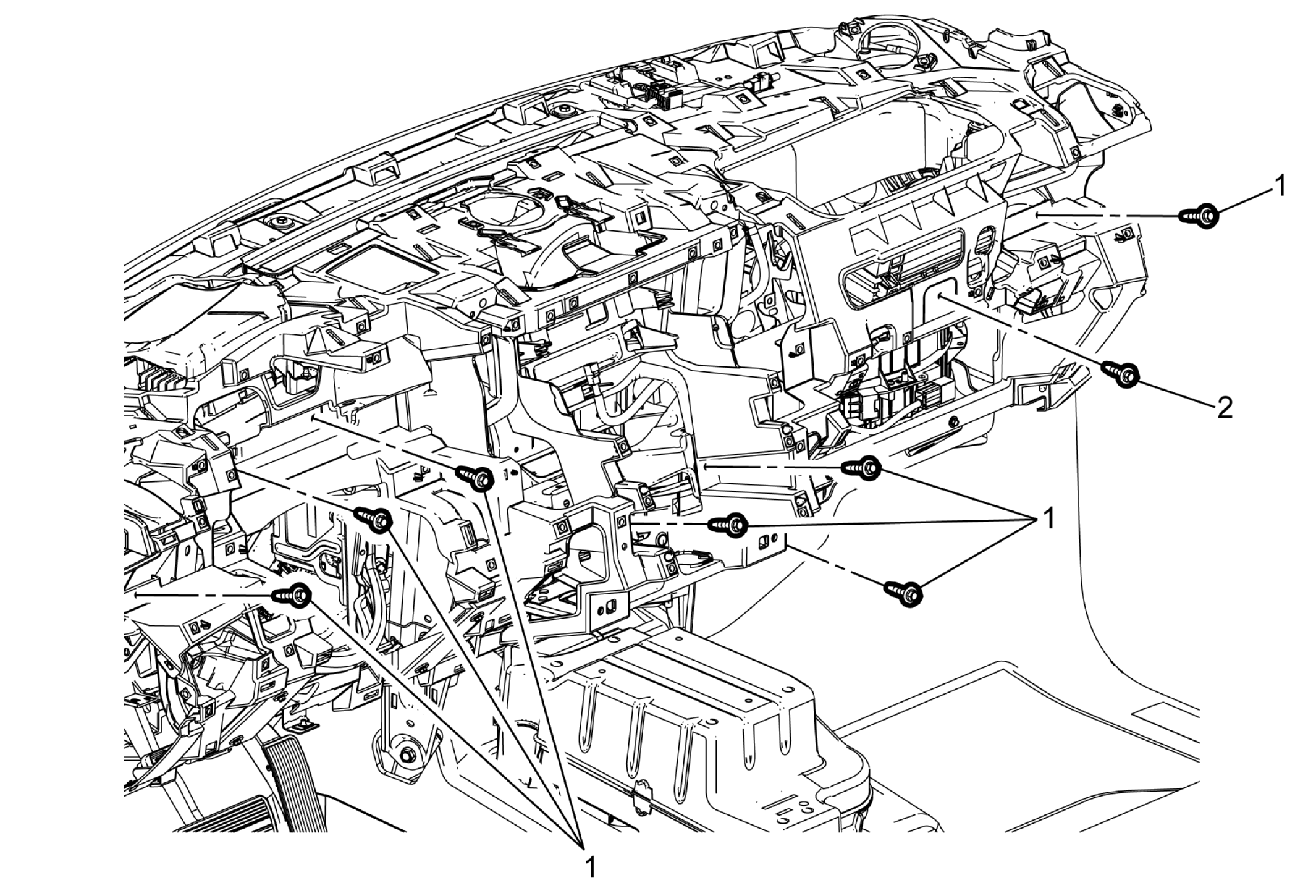

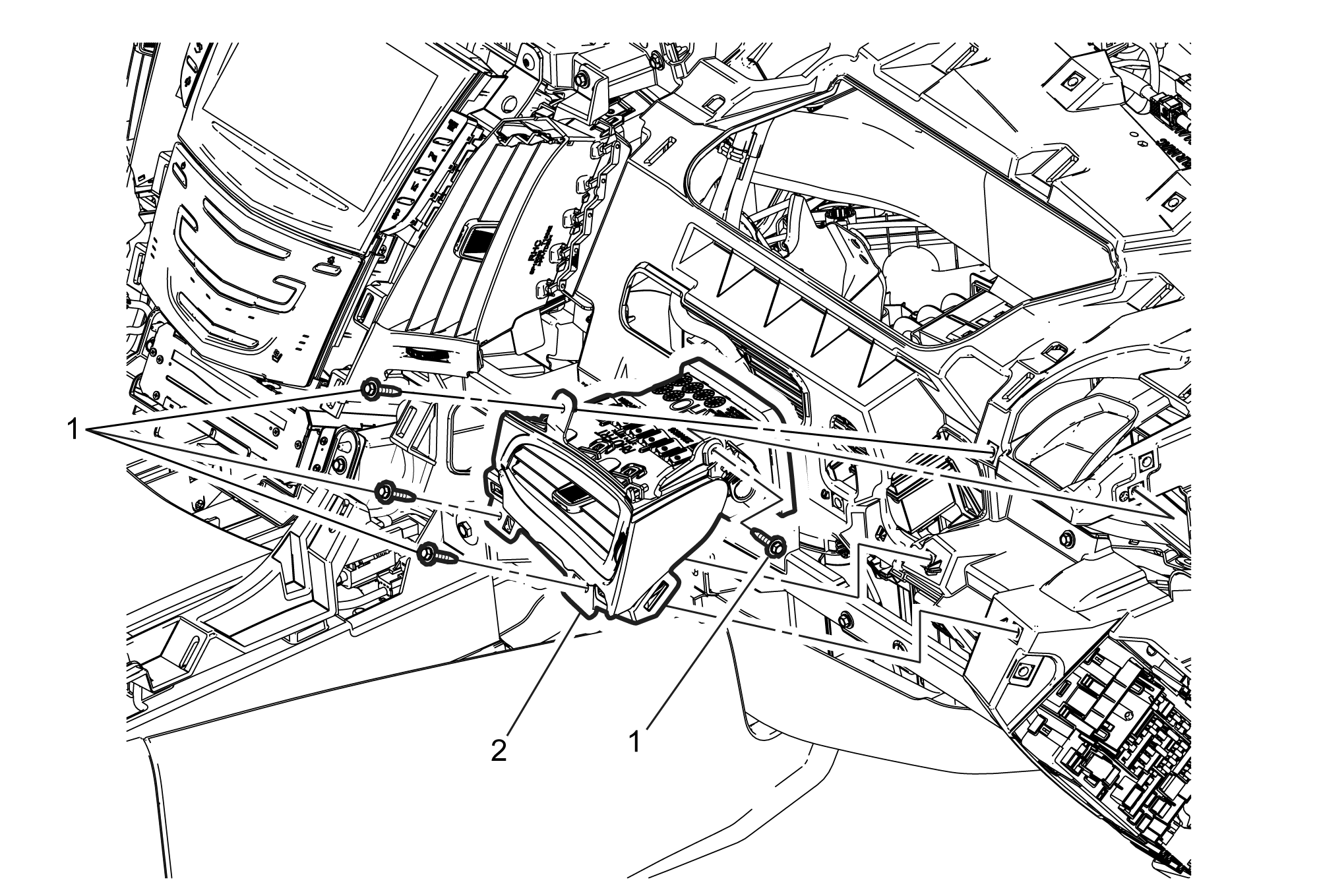

Install the instrument carrier fasteners (1) and tighten to 2.5 N.m (22 lb in).
Install the communication interface module bracket fasteners (2) and tighten to 2.5 N.m (22 lb in).
Courtesy of GENERAL MOTORS COMPANY

Install the air distributor front duct fasteners (1) and tighten to 2.5 N.m (22 lb in).
Courtesy of GENERAL MOTORS COMPANY

Install the steering column (3). Refer to Steering Column Replacement (N33, N37)Steering Column Replacement (N38) .
Courtesy of GENERAL MOTORS COMPANY

Install the instrument cluster (2). Refer to Instrument Cluster Replacement (Cadillac) .
Courtesy of GENERAL MOTORS COMPANY

Install both instrument panel wiring harness junction blocks (1). Refer to Instrument Panel Wiring Harness Junction Block Replacement .
Courtesy of GENERAL MOTORS COMPANY

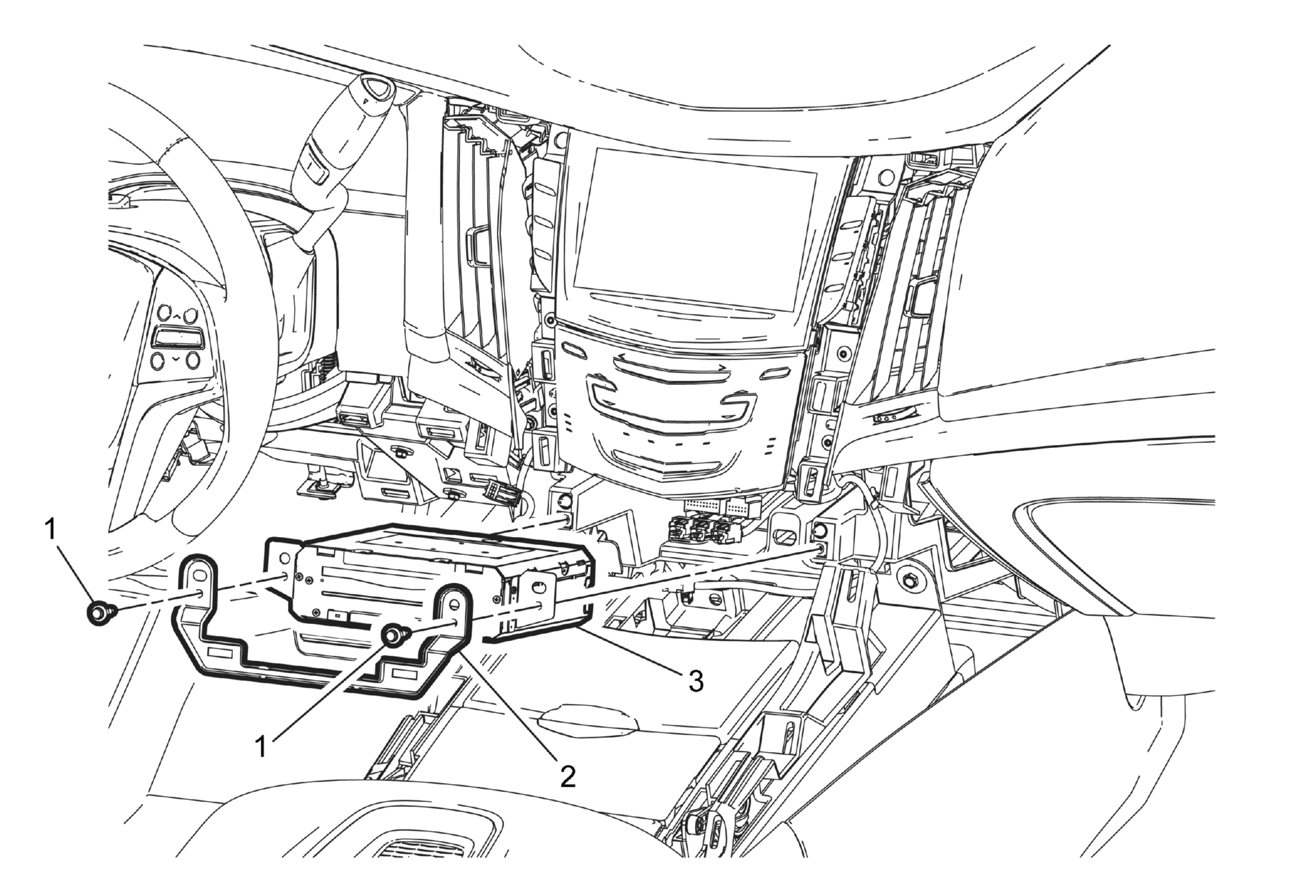

Install the video player (3). Refer to Video Player Replacement (Cadillac) .
Courtesy of GENERAL MOTORS COMPANY

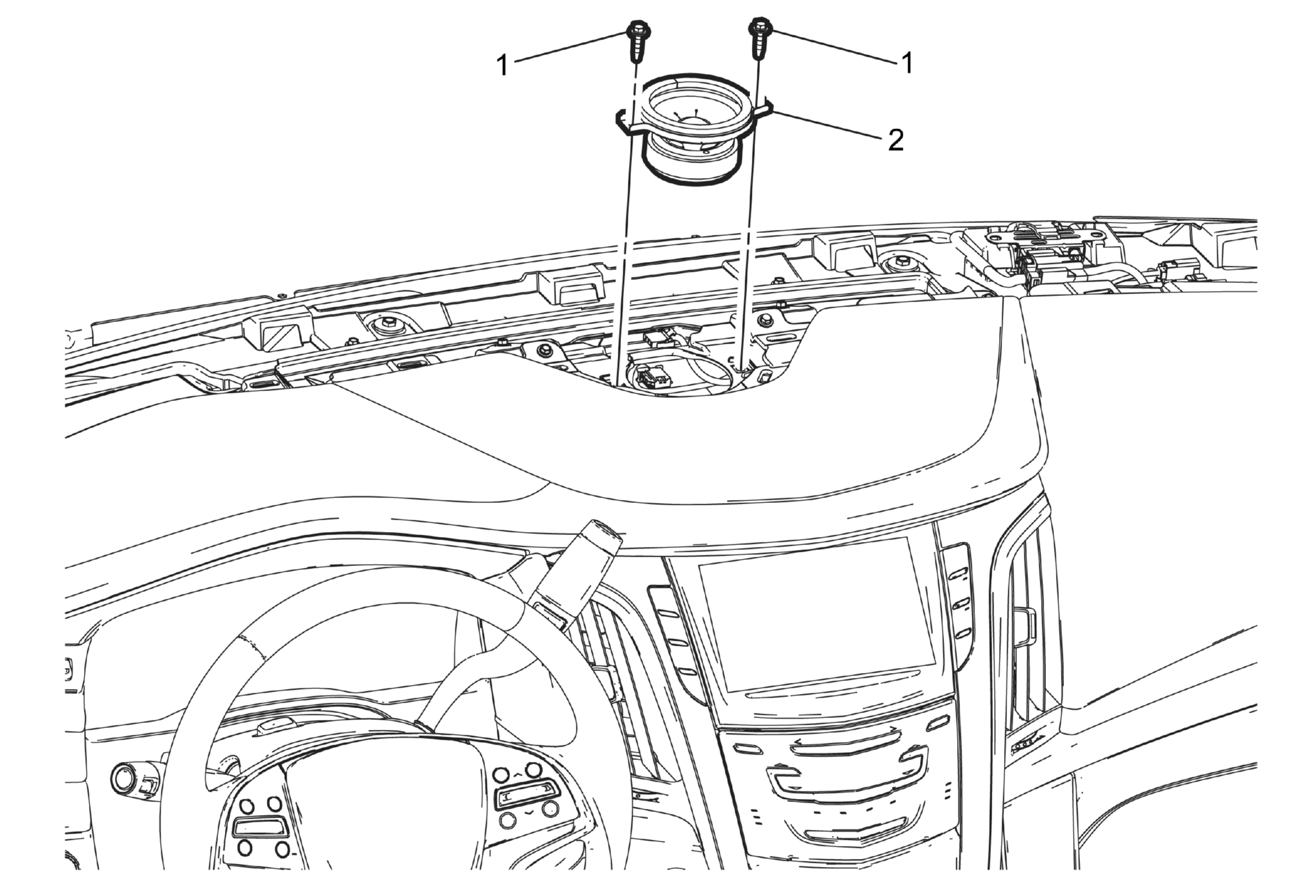

Install the radio front center speaker (2). Refer to Radio Front Center Speaker Replacement (Cadillac) .
Courtesy of GENERAL MOTORS COMPANY

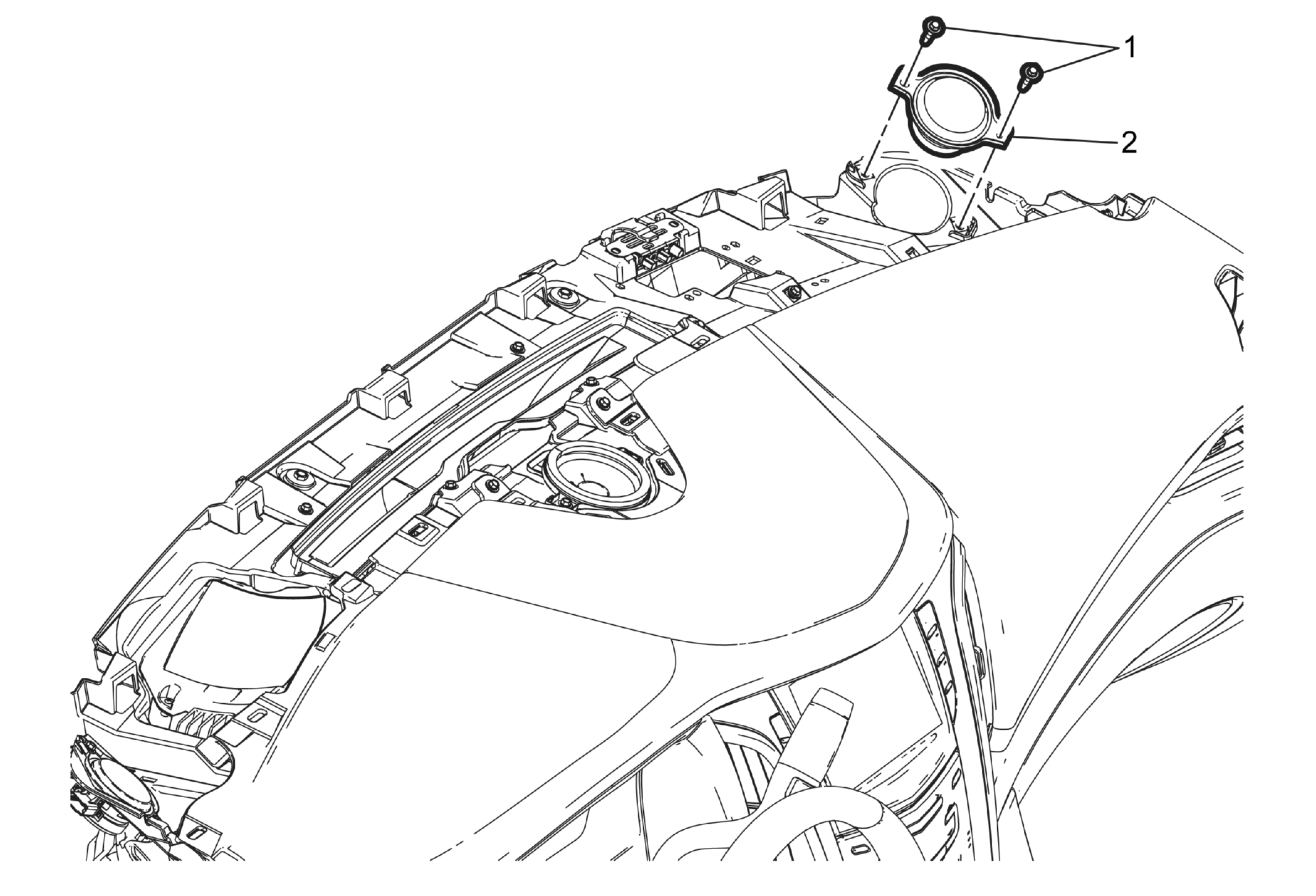

Install the radio speaker (2). Refer to Radio Speaker Replacement (Cadillac) .
Courtesy of GENERAL MOTORS COMPANY

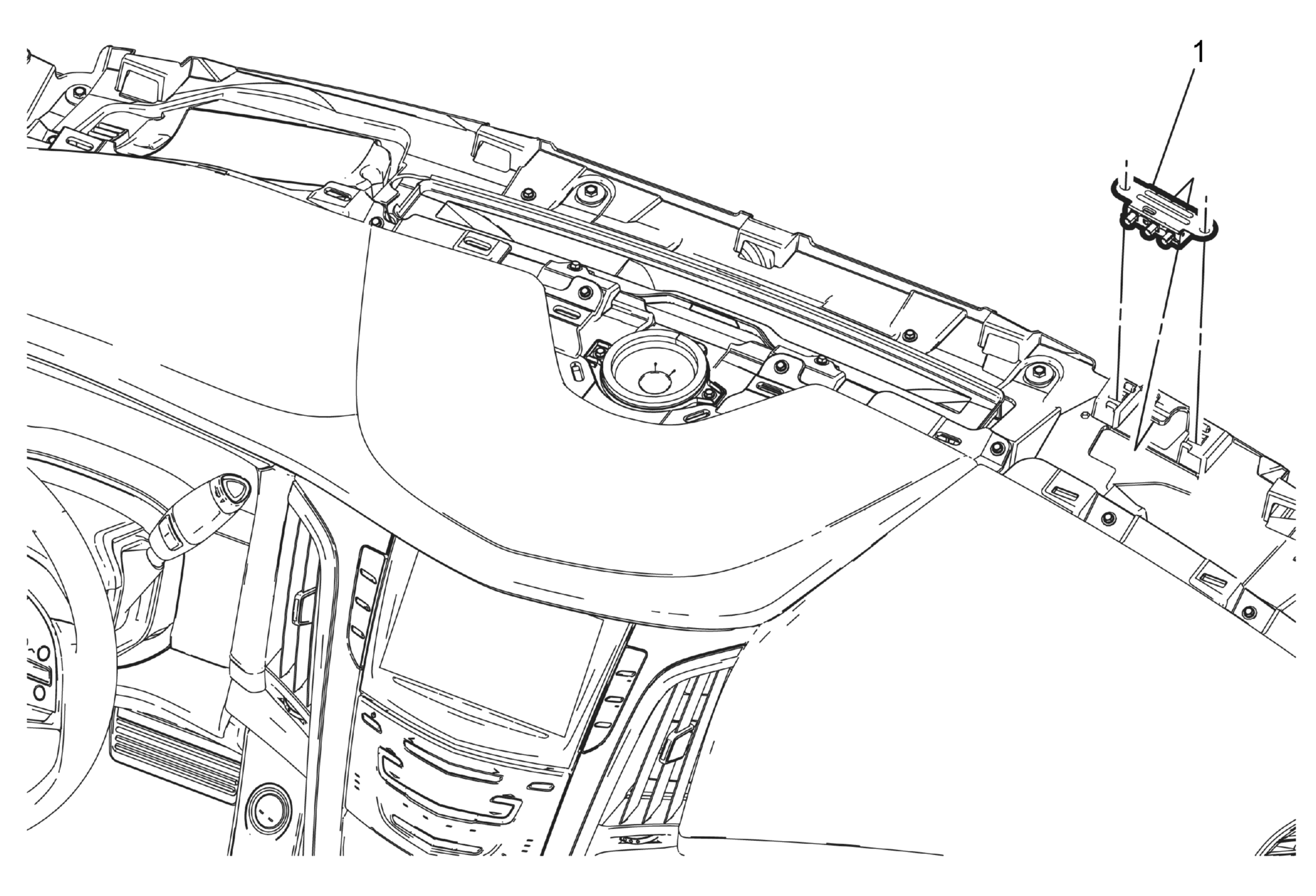

Install the navigation signal splitter (1). Refer to Navigation Signal Splitter Replacement (Cadillac) .
Courtesy of GENERAL MOTORS COMPANY

Install the right instrument panel center air outlet (2). Refer to Instrument Panel Center Air Outlet Replacement - Right Side (Cadillac) .
Courtesy of GENERAL MOTORS COMPANY

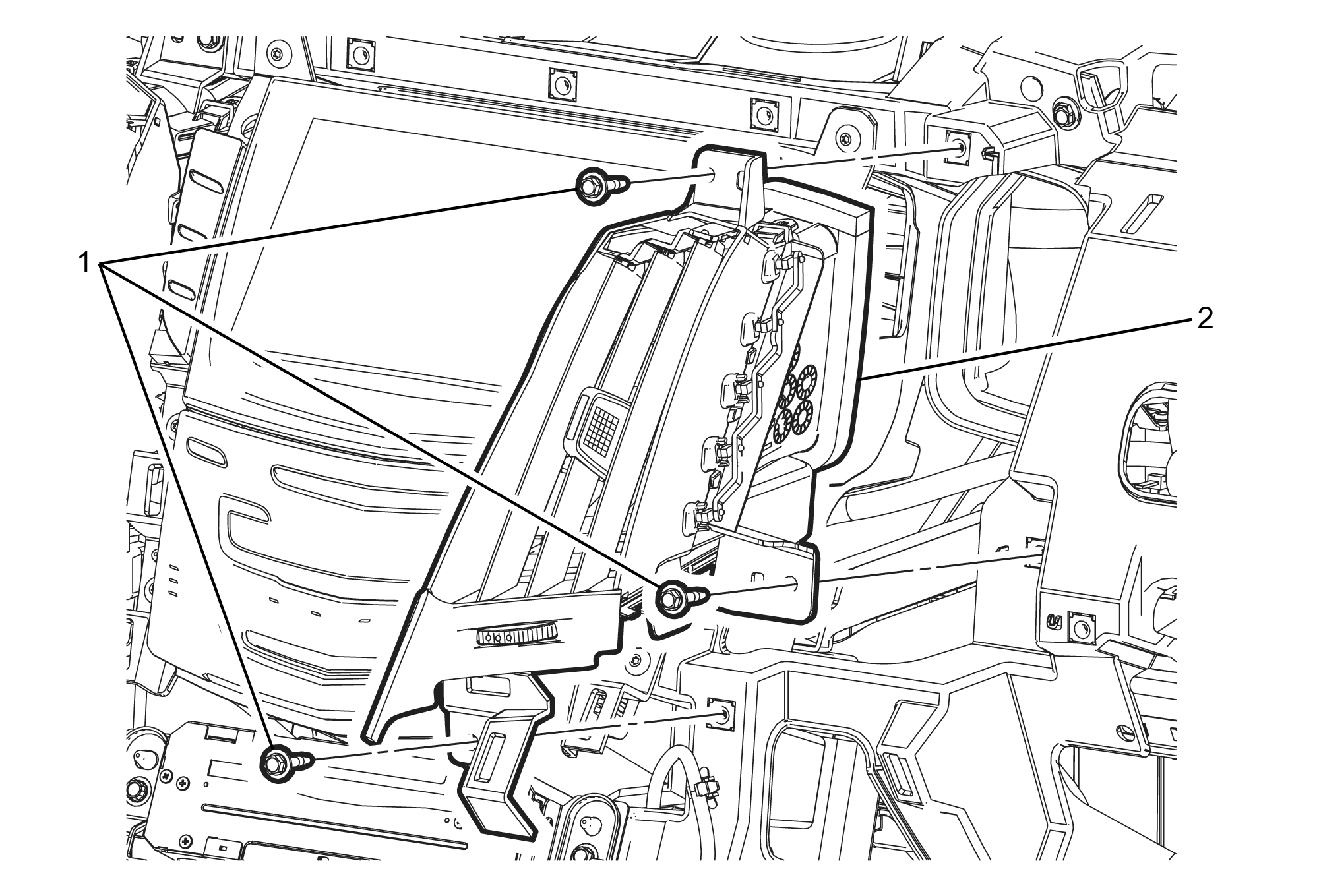

Install the left instrument panel center air outlet (2). Refer to Instrument Panel Center Air Outlet Replacement - Left Side (Cadillac) .
Courtesy of GENERAL MOTORS COMPANY

Install the radio (1). Refer to Radio Replacement (Cadillac with NGI)Radio Replacement (Cadillac with IOB)
Courtesy of GENERAL MOTORS COMPANY

Install the instrument panel upper trim panel bracket (3). Refer to Instrument Panel Upper Trim Panel Bracket Replacement (Cadillac) .
Courtesy of GENERAL MOTORS COMPANY

Install the right instrument panel outer air outlet (2). Refer to Instrument Panel Outer Air Outlet Replacement - Right Side (Cadillac) .
Courtesy of GENERAL MOTORS COMPANY

Install the left instrument panel outer air outlet (2). Refer to Instrument Panel Outer Air Outlet Replacement - Left Side (Cadillac) .
Courtesy of GENERAL MOTORS COMPANY

Install the front floor console (3). Refer to Front Floor Console Replacement (Cadillac) .
Enable the SIR system. Refer to SIR Disabling and Enabling .
