Dash Panel Inner Insulator Replacement

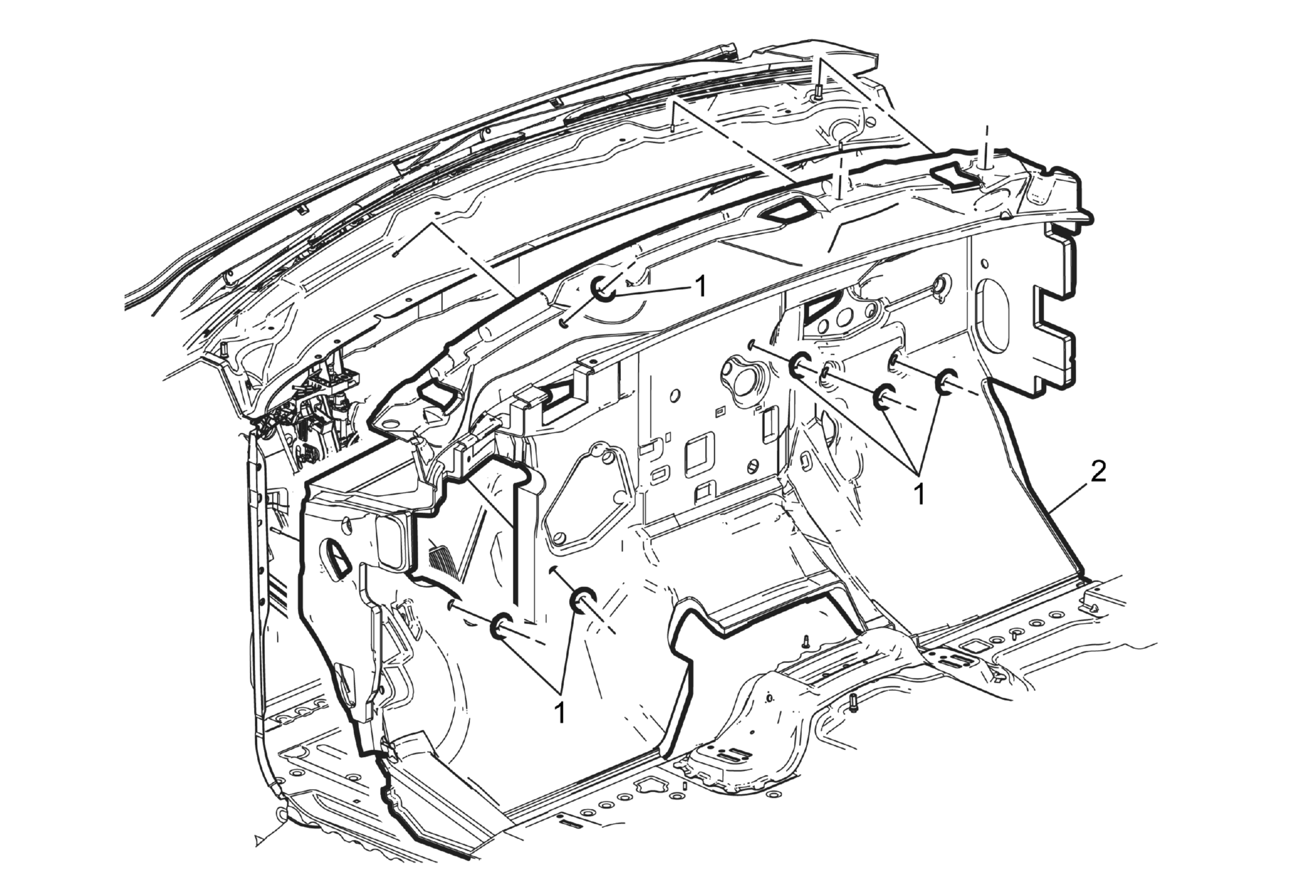

GM3637397Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Heater and Air Conditioning Evaporator and Blower Module Removal and Installation
  2. Brake and Accelerator Pedal Assembly Replacement
  3. Parking Brake Lever Pedal Assembly Replacement
  4. Body Wiring Harness Junction Block Replacement
  5. Underhood Electrical Center or Junction Block Bracket Replacement
1 Dash Panel Inner Insulator Retainer - Female [6x]
2 Dash Panel Inner Insulator

Procedure

  1. Release the body wiring harness pass through grommet and route the body wiring harness from the engine compartment into the interior of the vehicle.
  2. Pull back the carpet. Refer to Front Floor Panel Carpet Replacement .
