Body Wiring Harness Junction Block Replacement

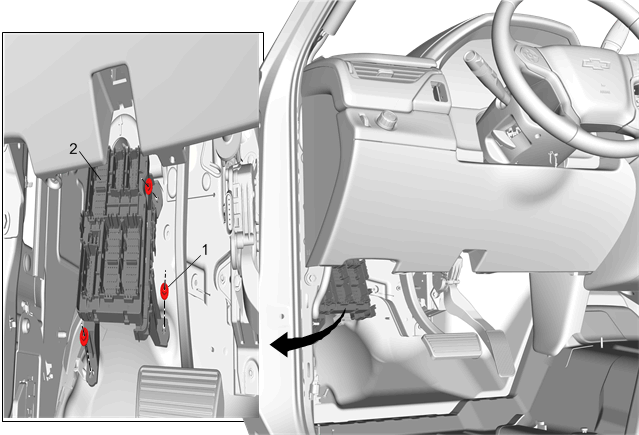

GM3807693Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (Dual Battery)Battery Negative Cable Disconnection and Connection (Single Battery)
  2. Remove the cover.
  3. Disconnect the electrical connectors.
1 Body Harness Junction Block Nut (3)
CAUTION:

Refer to Fastener Caution .


Tighten
7 N.m (62 lb in)
2 Body Harness Junction Block

Procedure

  1. Disconnect any remaining electrical connectors under the fuse block.
  2. Remove the block from the vehicle.
