Left Front of Engine Compartment Harness Routing

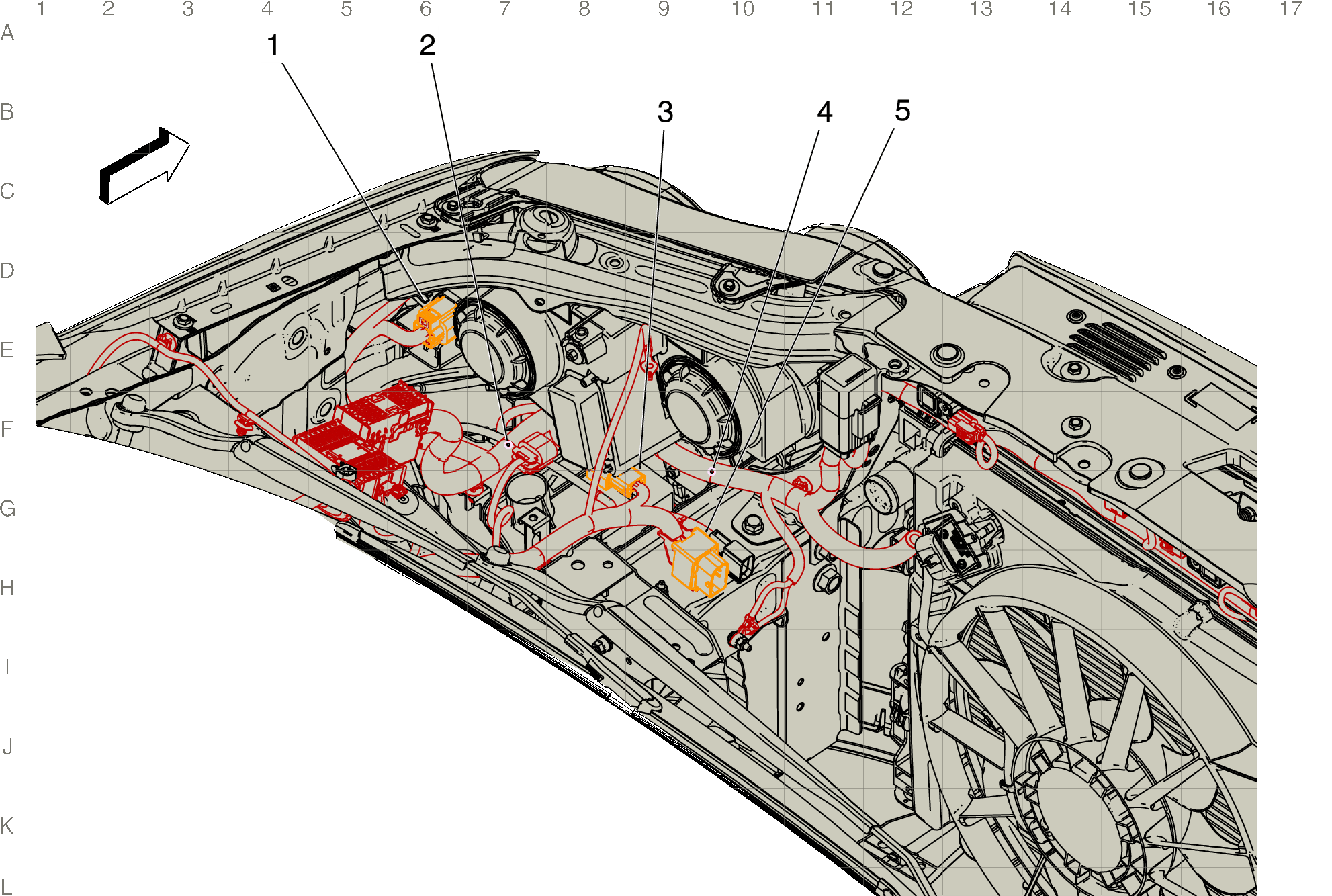

GM2654508Courtesy of GENERAL MOTORS COMPANY
Items
1. X110 Forward Lamp Harness to Left Headlamp Harness (4 cavities)
2. J125 Forward Lamp Harness (T3U)
3. X100 Forward Lamp Harness to Body Harness (18 cavities) X100 Forward Lamp Harness to Body Harness
4. J123 Forward Lamp Harness
5. X101 Engine Harness to Body Harness (18 cavities) X101 Engine Harness to Body Harness
