X101 Engine Harness to Body Harness

Courtesy of GENERAL MOTORS COMPANY	Courtesy of GENERAL MOTORS COMPANY

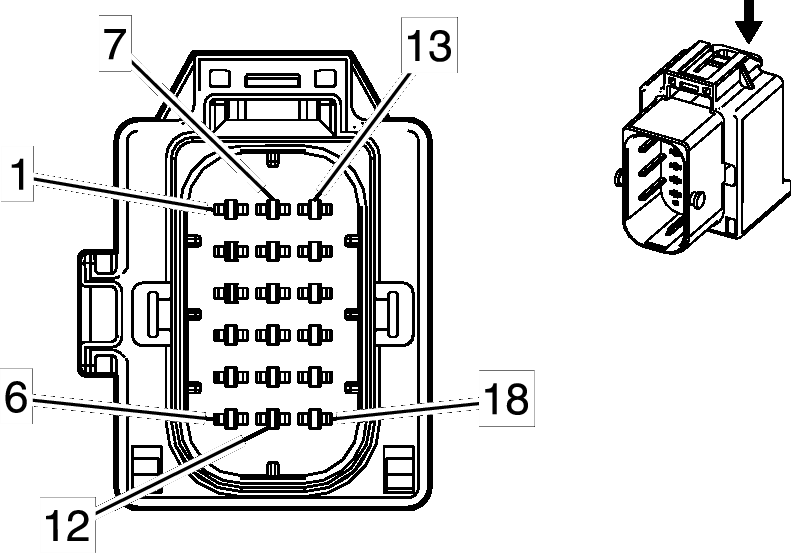

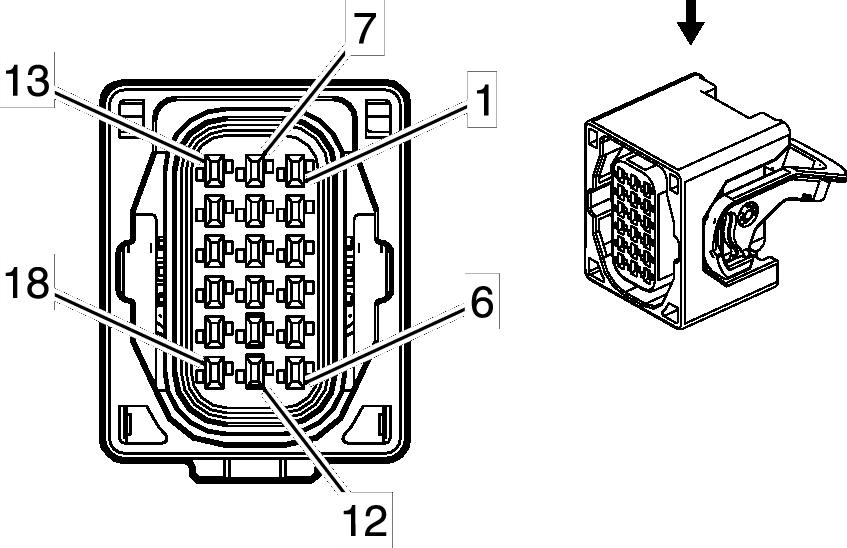

Connector Part Information Harness Type: Engine OEM Connector: 1897688-2 Service Connector: 13395406 Description: 18-Way F 1.5 MCP Series, Sealed (BK)	Connector Part Information Harness Type: Body OEM Connector: 1897686-2 Service Connector: 13395405 Description: 18-Way M 1.5 MCP Series, Sealed (BK)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	13582180	J-35616-14 (GN)	J-38125-557	1241374-1	Lear 17	E	2
II	13575361	J-35616-3 (GY)	EL-38125-560-A	964265-2	Lear 28	E	2
III	13576397	J-35616-34 (YE)	EL-38125-560-A	964265-2	Lear 28	E	2

Pin	Size	Color	Circuit	Terminal Type ID	Option	Function	Pin	Size	Color	Circuit	Terminal Type ID	Option
1	0.5	BU	2500	I	-	High Speed GMLAN Serial Data (+) 1	1	0.5	BU	2500	II	-
2	0.5	WH	2501	I	-	High Speed GMLAN Serial Data (-) 1	2	0.5	WH	2501	II	-
3	0.5	BK/BU	1271	I	-	Accelerator Pedal Position Low Reference 1	3	0.5	BK/BU	1271	II	-
4	0.5	YE/WH	1161	I	-	Accelerator Pedal Position Signal 1	4	0.5	YE/WH	1161	II	-
5	0.5	WH/RD	1164	I	-	Accelerator Pedal Position 5V Reference 1	5	0.5	WH/RD	1164	II	-
6	0.5	BK/VT	1272	I	LUV	Accelerator Pedal Position Low Reference 2	6	0.5	BK/VT	1272	II	-
7	0.5	GN/WH	1162	I	-	Accelerator Pedal Position Signal 2	7	0.5	GN/WH	1162	II	-
8	0.5	BN/RD	1274	I	-	Accelerator Pedal Position 5V Reference 2	8	0.5	BN/RD	1274	II	-
9	-	-	-	-	-	Not Occupied	9	-	-	-	-	-
10	0.5	BK/GN	6281	I	-	Fuel Level Sensor Low Reference	10	0.35	BK/GN	6281	III	-
11	0.5	BU/VT	1589	I	-	Primary Fuel Level Sensor Signal	11	0.35	BU/VT	1589	III	-
12	0.5 0.5	WH/GN YE	5380 6111	I I	LUV+MH8 LUV+MZ4	Brake Position Sensor Signal Clutch Apply Sensor Signal	12	0.35	YE	6111	III	-
13	0.5 0.5	WH/RD GY/RD	5381 6109	I I	LUV+MH8 LUV+MZ4	Brake Position Sensor 5V Reference Clutch Apply Sensor 5V Reference	13	0.35	GY/RD	6109	III	-
14	0.5	BK/BU	6813	I	-	Coolant Temperature Sensor 2 Low Reference	14	0.5	BK/BU	6813	II	-
15	0.5 0.5	BK/YE BK/GY	5382 6110	I I	LUV+MH8 LUV+MZ4	Brake Position Sensor Low Reference Clutch Apply Sensor Low Reference	15	0.35	BK/GY	6110	III	-
16	0.5	YE/BK	3000	I	-	Coolant Temperature Sensor 2 Signal	16	0.5	YE/BK	3000	II	-
17	0.5	BN/WH	6283	I	-	Fuel Tank Vapor Pressure Sensor Control	17	0.35	BN/WH	6283	III	-
18	0.5	BK/BN	6284	I	-	Fuel Tank Vapor Pressure Sensor Low Reference	18	0.35	BK/BN	6284	III	-
