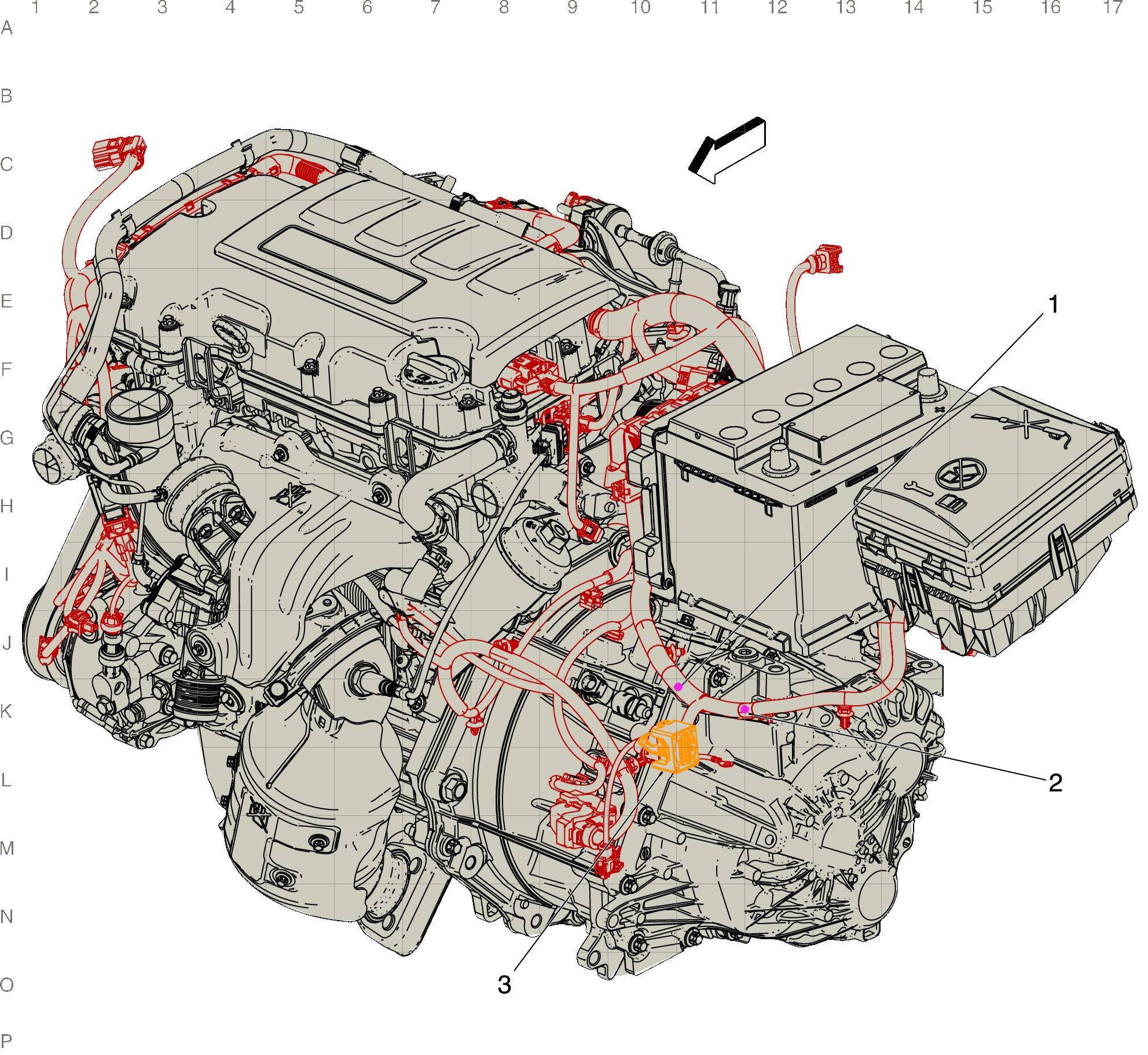

Engine Harness Routing - 1.4L Front (LUV)

GM2969013Courtesy of GENERAL MOTORS COMPANY
Items
1.J100 Engine Harness
2. J101 Engine Harness
3. X101 Engine Harness to Body Harness (18 cavities) X101 Engine Harness to Body Harness
