Ignition and Start Switch Replacement (without Keyless Engine Start)

Courtesy of GENERAL MOTORS COMPANY

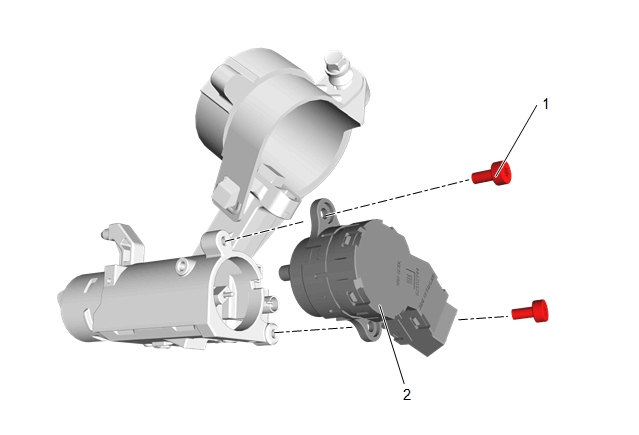

Callout	Component Name
Preliminary Procedures Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection Ignition and Start Switch Housing Replacement
1	Ignition and Start Switch Bolt[2x] CAUTION: Refer to Fastener Caution . Tighten 2N.m (18 lb in)
2	Ignition and Start Switch Procedure Connect the battery negative cable. Battery Negative Cable Disconnection and Connection

Callout

Component Name

Preliminary Procedures

Ignition and Start Switch Bolt[2x]

CAUTION:

Tighten
2N.m (18 lb in)

Ignition and Start Switch
Procedure
Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
