Ignition and Start Switch Housing Replacement

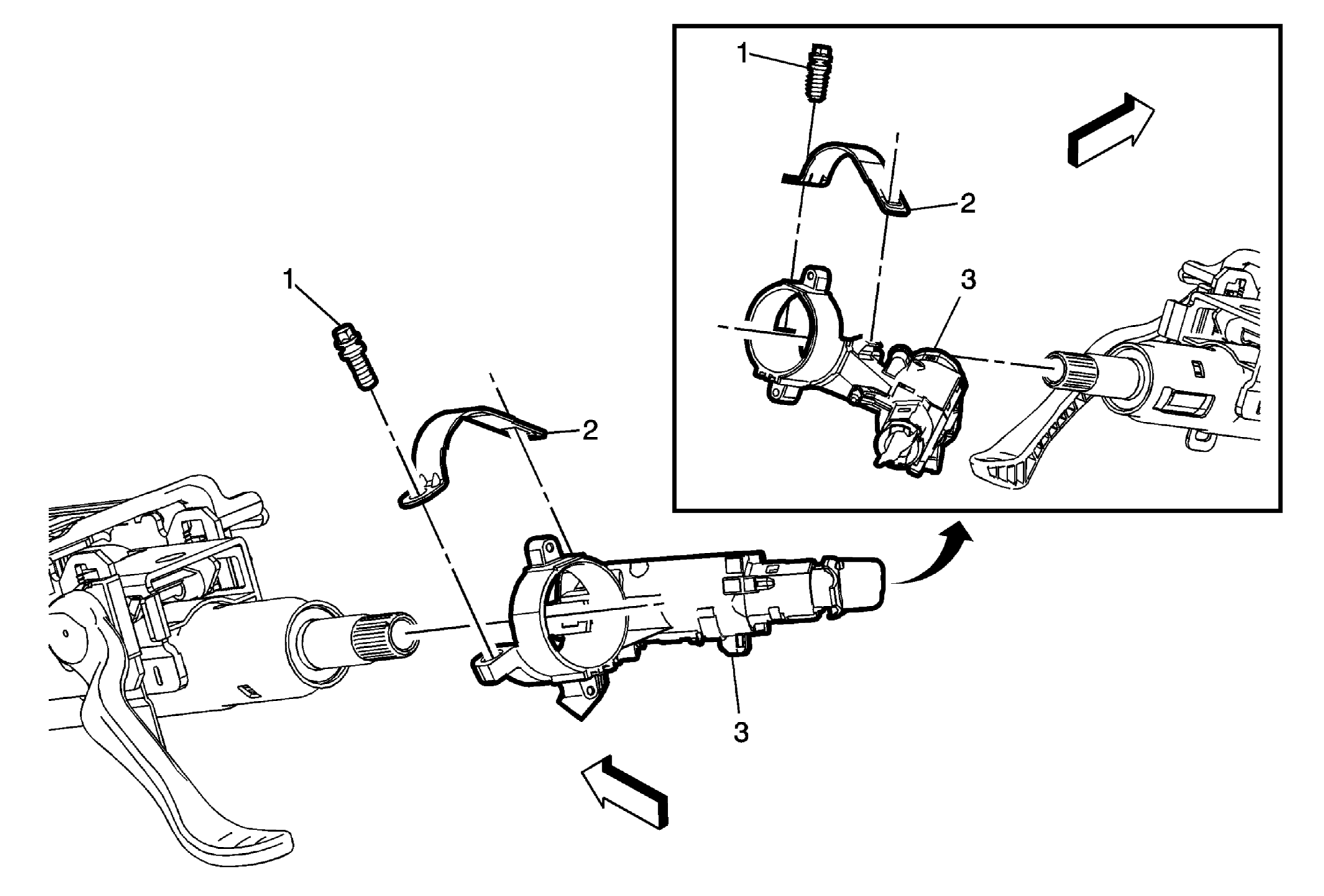

GM2508981Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Theft Deterrent Module Replacement (without BTM)Theft Deterrent Module Replacement (with BTM)
  2. Turn Signal Switch Bracket Replacement
1 Ignition and Start Switch Housing Bolt
CAUTION:

Refer to Fastener Caution .

Procedure

  1. Use a small hammer and chisel to remove the OLD ignition and start switch housing bolt.

    DISCARD the bolt.

  2. Install the NEW ignition and start switch housing bolt and tighten until the bolt head breaks off.
2 Ignition and Start Switch Housing Strap
3 Ignition and Start Switch Housing

Procedure

  1. Disconnect the electrical connector.
  2. Transfer components as necessary.
