Heater Inlet Hose Replacement (1.6L Diesel LH7)

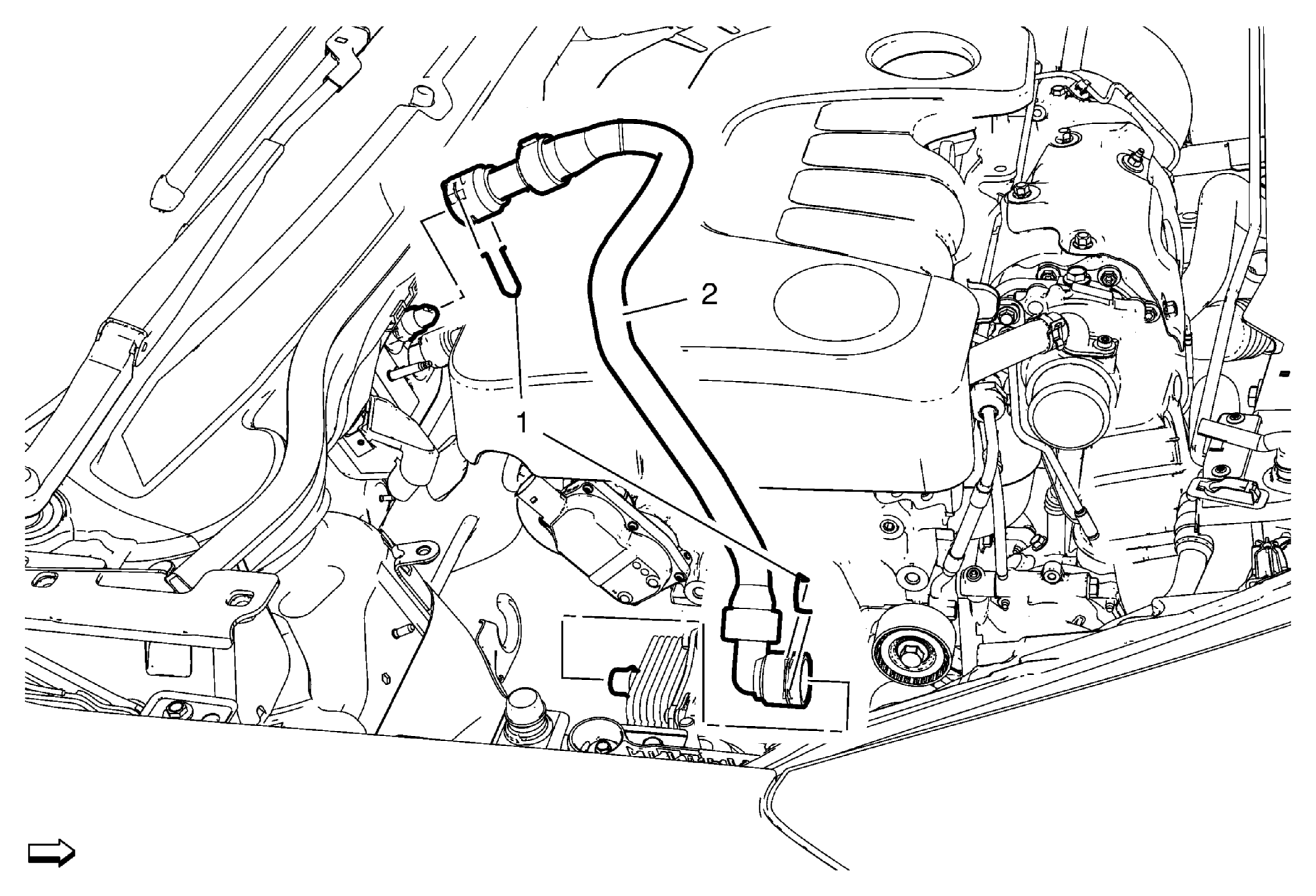

GM3471753Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Disconnect the negative battery cable. Battery Negative Cable Disconnection and Connection .
  2. Drain the cooling system. Cooling System Draining and Filling .
  3. Dash Upper Extension Panel Opening Cover Replacement
1 Heater Inlet Hose Quick Connector (Qty: 2)
2 Heater Inlet Hose
