Dash Upper Extension Panel Opening Cover Replacement

Courtesy of GENERAL MOTORS COMPANY

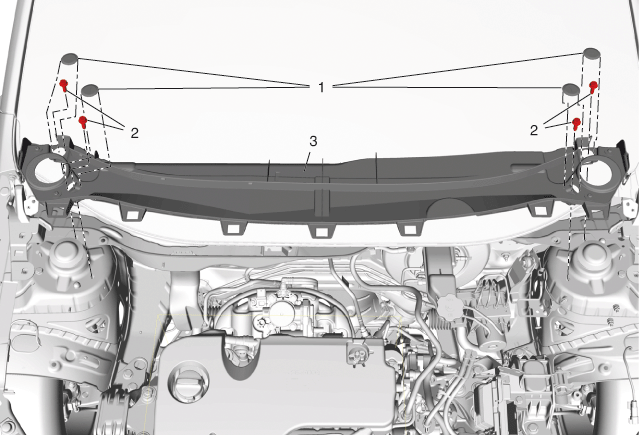

Callout	Component Name
Preliminary Procedure  Air Inlet Grille Panel Replacement
1	Dash Upper Extension Panel Opening Cover Plug [4x]
2	Front Suspension Strut Bolt [4x] WARNING: Refer to Torque-to-Yield Fastener Warning . CAUTION: Refer to Fastener Caution . Procedure  Install NEW bolts. Do NOT reuse old bolts. Tighten  First Pass: 22 N.m (16 lb ft) Final Pass: 30 - 45 degrees Special Tools  EN-45059  Angle Meter Equivalent regional tools:Special Tools
3	Dash Upper Extension Panel Opening Cover
