Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Drivetrain and Front Suspension Cradle - Remove - Drivetrain and Front Suspension Cradle Replacement
  2. Transmission Mount Strut - Remove - Transmission Mount Strut Replacement

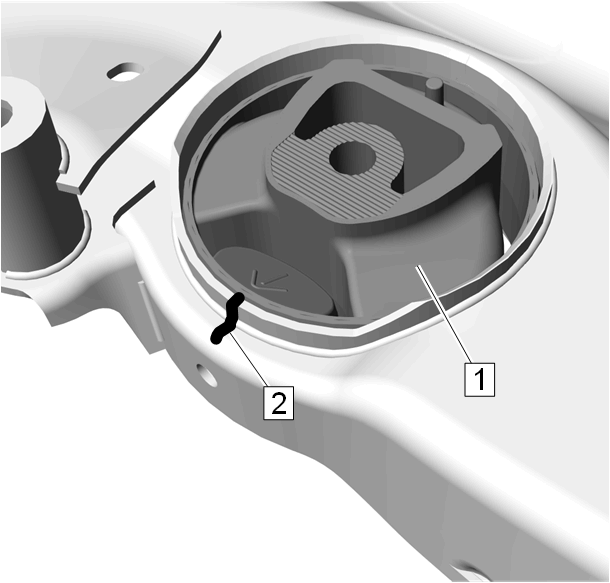

  3. GM4733235Courtesy of GENERAL MOTORS COMPANY

    Mark installation arrow position of transmission rear mount (1) with a vertical line (2) by a white pencil on the drivetrain and front suspension cradle to aid in installation.

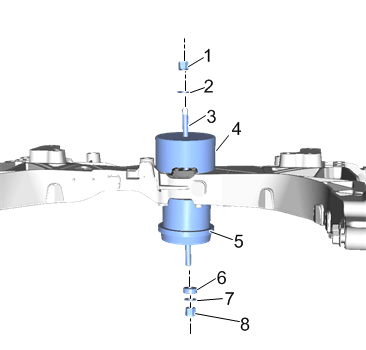

  4. Fig 1: Identifying Cradle Bushing Remover/Installer Components
    GM4582710Courtesy of GENERAL MOTORS COMPANY

    Assemble the CH-51999-1A  driver (5) and CH-51999-2  receiver (4) from the CH-51999-A  cradle bushing remover/installer kit with CH-50342  threaded rod (1 - 8) onto the transmission rear mount and the drivetrain and front suspension cradle.

  5. Turning the nut (8), release the transmission rear mount from the drivetrain and front suspension cradle.

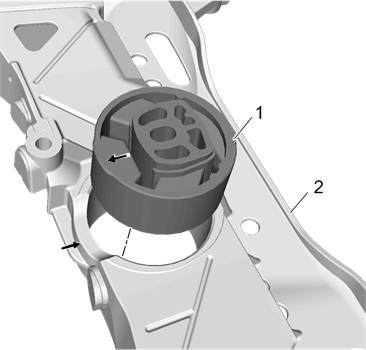

  6. GM4582680Courtesy of GENERAL MOTORS COMPANY

    Transmission Rear Mount (1) @ Drivetrain and Front Suspension Cradle (2) - Remove
