Transmission Mount Strut Replacement

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

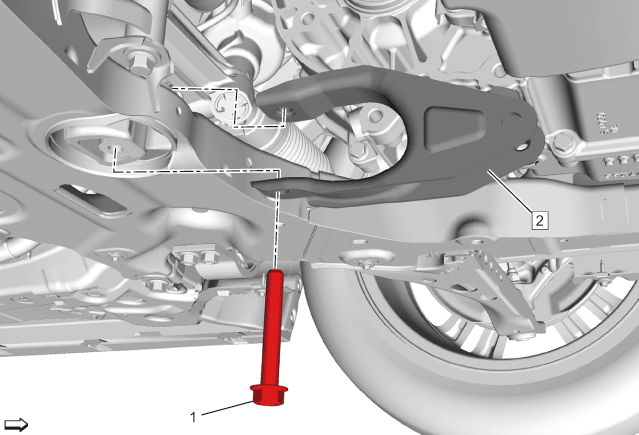

Callout	Component Name
Preliminary Procedures Using a suitable jack stand, support the rear of the powertrain. Transmission Mount Strut Bracket Replacement
1	Transmission Mount Strut Bolt CAUTION: Fastener Caution CAUTION: Torque-to-Yield Fastener Caution Procedure Install a NEW bolt. - Do NOT reuse the old bolt. Tighten First Pass: 100 N.m (74 lb ft) Final Pass: 120-135 degrees Special Tools EN-45059 Angle Meter Equivalent regional tools: Special Tools
2	Transmission Mount Strut

Callout

Component Name

Preliminary Procedures

Transmission Mount Strut Bolt

CAUTION:

CAUTION:

Procedure
Install a NEW bolt. - Do NOT reuse the old bolt.
Tighten

Special Tools
EN-45059 Angle Meter
Equivalent regional tools: Special Tools

Transmission Mount Strut
