Transmission Mount Strut Bracket Replacement

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

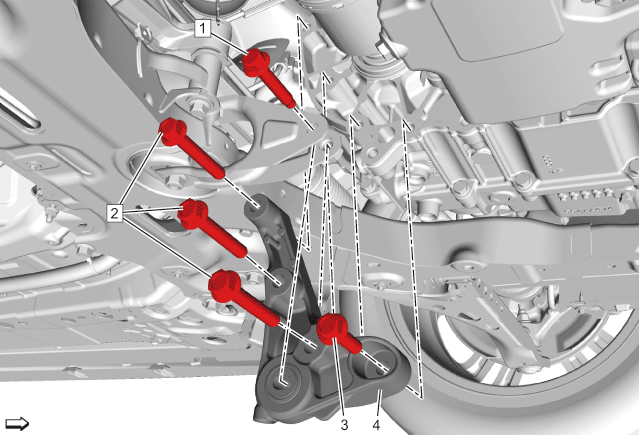

Callout	Component Name
Preliminary Procedures Front Compartment Insulator Replacement Using a suitable jack stand, support the rear of the powertrain.
1	Transmission Mount Strut Bolt CAUTION: Fastener Caution CAUTION: Torque-to-Yield Fastener Caution Procedure Install a NEW bolt. - Do NOT reuse the old bolt. Tighten First Pass: 100 N.m (74 lb ft) Second Pass: 90 -105 degrees Special Tools EN-45059 Angle Meter Equivalent regional tools: Special Tools
2	Transmission Mount Strut Bracket Bolt M12 x 75 [3x] CAUTION: Torque-to-Yield Fastener Caution Procedure Install NEW bolts. - Do NOT reuse old bolts. Tighten First Pass: 100 N.m (74 lb ft) Final Pass: 60 - 75 degrees Special Tools EN-45059 Angle Meter Equivalent regional tools: Special Tools
3	Transmission Mount Strut Bracket Bolt M12 x 45 CAUTION: Torque-to-Yield Fastener Caution Procedure Install a NEW bolt. - Do NOT reuse the old bolt. Tighten First Pass: 100 N.m (74 lb ft) Final Pass: 60 - 75 degrees Special Tools EN-45059 Angle Meter Equivalent regional tools: Special Tools
4	Transmission Mount Strut Bracket
