Transmission Converter Cover Replacement

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

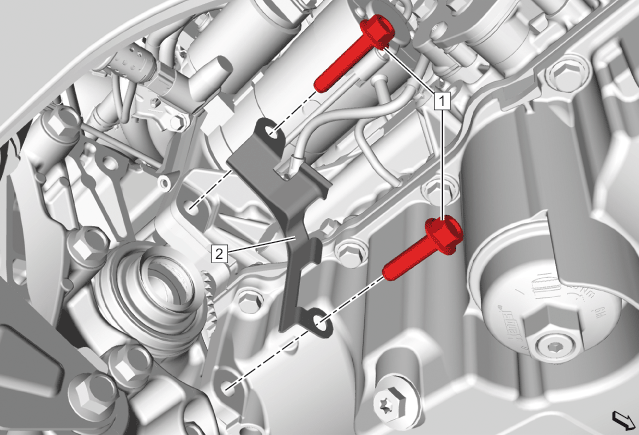

Callout	Component Name
Preliminary Procedures Front Compartment Insulator Replacement Right Front Wheel Drive Shaft @ Transmission - Remove - Front Wheel Drive Shaft Replacement
1	Transmission Bolt [2x] WARNING: Use care when working around exhaust heat shields. The heat shields may have sharp edges and can cause personal injury if contact is made. Always install a temporary cover to the heat shield to reduce the risk of injury. CAUTION: Tighten the transmission converter cover carefully to prevent it from becoming deformed. A deformed transmission converter cover may wear on the starting ring gear or the front wheel drive shaft resulting in noise emission and improper protecting properties. CAUTION: Fastener Caution Tighten 58 N.m (43 lb ft)
2	Transmission Converter Cover

Callout

Component Name

Preliminary Procedures

Front Compartment Insulator Replacement
Right Front Wheel Drive Shaft @ Transmission - Remove - Front Wheel Drive Shaft Replacement

Transmission Bolt [2x]

WARNING:

Use care when working around exhaust heat shields. The heat shields may have sharp edges and can cause personal injury if contact is made. Always install a temporary cover to the heat shield to reduce the risk of injury.

CAUTION:

Tighten the transmission converter cover carefully to prevent it from becoming deformed. A deformed transmission converter cover may wear on the starting ring gear or the front wheel drive shaft resulting in noise emission and improper protecting properties.

CAUTION:

Fastener Caution

Tighten
58 N.m (43 lb ft)

Transmission Converter Cover
