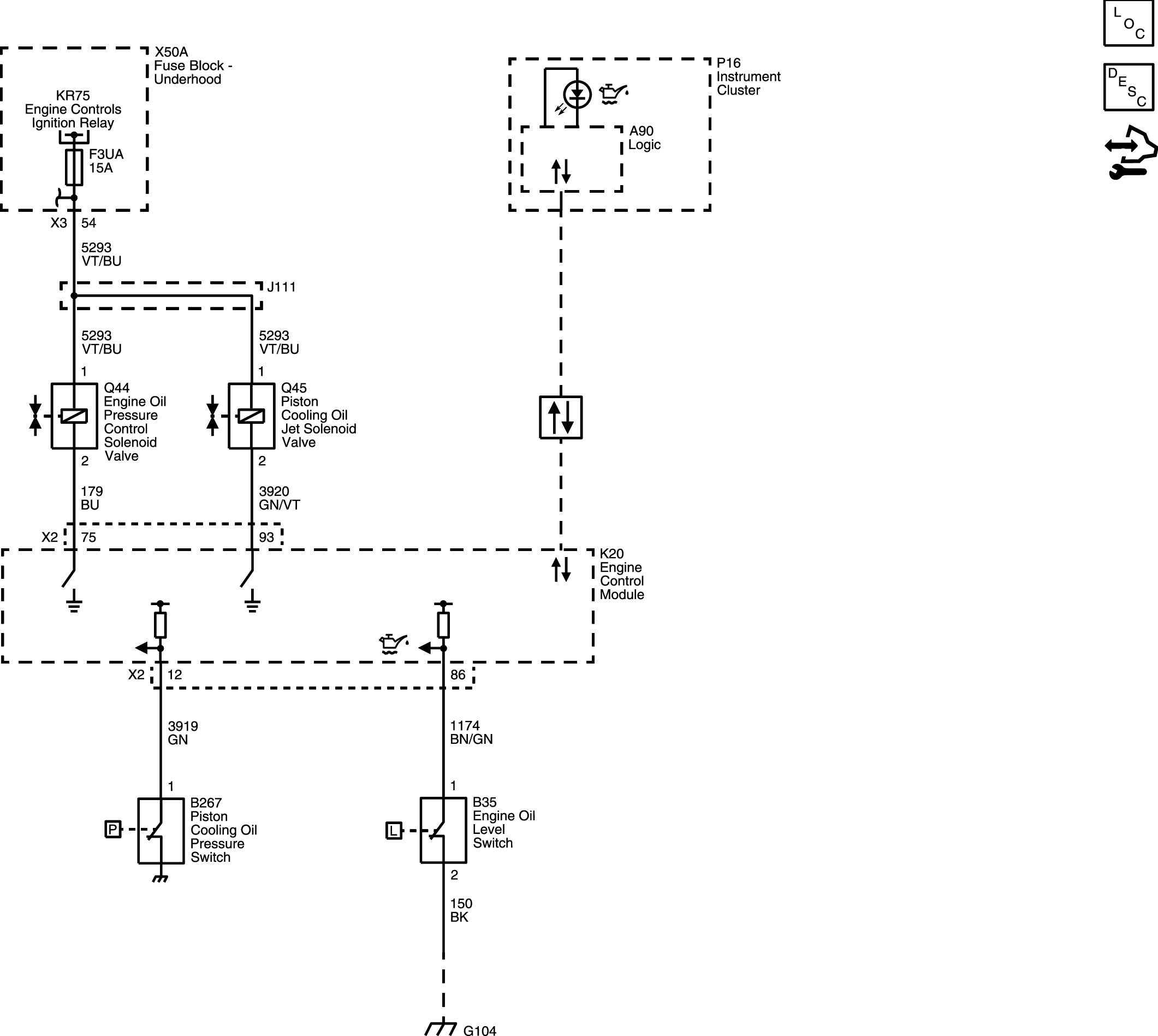

Oil Pressure Control

WARNING: This page is about a different variant/trim than selected.

GM4892468

Courtesy of GENERAL MOTORS COMPANY
