Installation Procedure

WARNING: This page is about a different variant/trim than selected.

Remove the EN-51110 Compression Tester Adapter along with the J-35667-12 , J-22794
.
Courtesy of GENERAL MOTORS COMPANY

Bolt (1, 3) - Remove [4x]
Remove the EN-50717 (1) from the cylinder head.
Courtesy of GENERAL MOTORS COMPANY

Turbocharger Oil Feed Pipe Hollow Screw (2) - Install and tighten 25 N.m (18 lb ft)
Turbocharger Oil Feed Pipe Bracket Bolt (1) - Install and tighten 10 N.m (89 lb in)
Courtesy of GENERAL MOTORS COMPANY

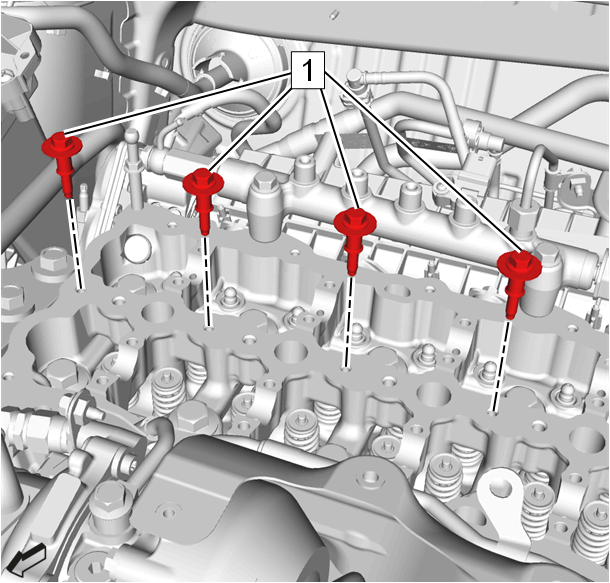

Camshaft Housing Bolt (1) - Remove [4x]
Courtesy of GENERAL MOTORS COMPANY

Install the bearing bracket (1).
Courtesy of GENERAL MOTORS COMPANY

Install the valve lifter. (1) [16x] Valve Lifter Replacement
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Do not remove the EN-50509 fixing tool.

Install the exhaust camshaft. (1) Exhaust Camshaft Replacement
Courtesy of GENERAL MOTORS COMPANY

Install the intake camshaft. (1) Intake Camshaft Replacement
Courtesy of GENERAL MOTORS COMPANY

Camshaft Housing (3) - Install - Camshaft Housing Replacement
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Install NEW fuel injector washers (2).

Fuel Injector (1) - Install [4x] - Fuel Injector Replacement
Courtesy of GENERAL MOTORS COMPANY

Fuel Injection Fuel Feed Pipe (1) - Install NEW [4x] - Fuel Injection Fuel Feed Pipe Replacement - Fuel Rail to Fuel Injector
